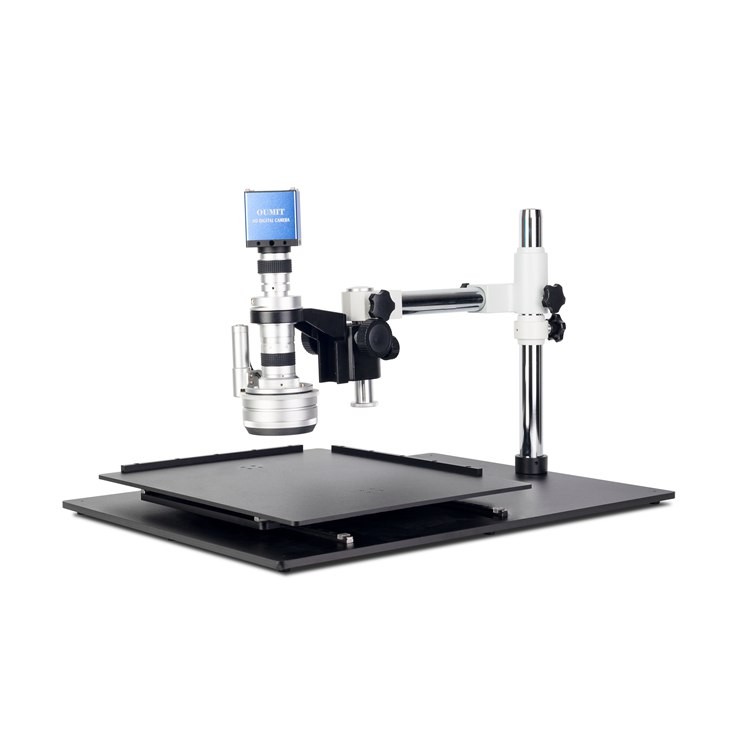

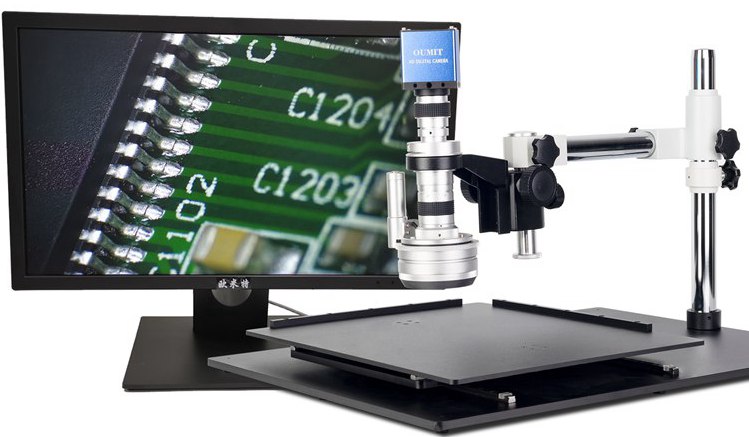

OMT-6500HC-STL300 Large Platform, Large Travel Electric 3D Microscope
OMT-6500HCThree-dimensional video microscopes are designed as a complete three-axis rotation observation control unit specifically for detecting angles that conventional video microscopes cannot.360Observation effect of degrees. High well depth design, balancing resolution and depth of field optimization.LEDLumination, catering to the need for observing various objects. Optional viewing angles45Degree, featuring an imported DC motor, boasts a long service life, stable operation, and low noise. Microcontroller integrated control, aesthetically pleasing, practical, and easy to operate.
You can select the motor type and speed according to user requirements. Both independent and base-integrated controllers are available for selection.
Optics, Technical Parameter Specifications
Model | OMT-6500HC-T210 |
Magnification Ratio | 25Multiple-150Multiple |
Field of View | 10mm*10mm |
Objective lens | 0.7-4.5XContinuous zoom, objective magnification ratio6.7:1 |
Observation angle | 45Degree |
Operation Controller | One-touch start/stop, reversible forward/reverse, variable speed, adjustable lighting brightness. |
Pixel dimensions | 3.75um*3.75um |
Data digits | 12bit |
Sensor | 1/2”COMS |
Resolution | 1920*1080 |
Output Interface | HDMIInterface |
Monitor | 22Inch1080Monitor” |
Take photos | Available |
Measurement | Available |
Feature | Real-time observation/Measurement/Take photos/Multiple cross lines |
Focus Bracket | Coarse focusing bracket, adjustable tension on the focusing ring, with a range of elevation and depression.50mmOptional coarse and fine adjustment bracket |
Base bracket | Base670*500mm, workbench 350*350mm, travel range 300*300mm |
Luminaires | Lens withLEDLight sources, also available with various optional fluorescent, compliant with specifications.LEDRing light |
Power Supply | External wide voltage adapter, input100V-240V-AC50/60HZ,OutputDC12V2A |
Product Configuration List
Series | Name | Quantity |
1 | Standard Lens, Electric 3D Lens | 1 |
2 | Mouse & Mouse Pad | 1 |
3 | Adjustable Column Focusing Bracket | 1 |
4 | STL300Mobile Platform Base | 1 |
5 | LEDAdjustable light source | 1 |
6 | High-definition industrial cameraOMT-918M | 1 |
7 | 22Inch1080High-definition monitor | 1 |
8 | HDMIData Cable | 1 |
9 | 5/12Power Adapter | 1 |
10 | 16G StorageUPlate | 1 |
11 | High-precision ruler | 1 |
