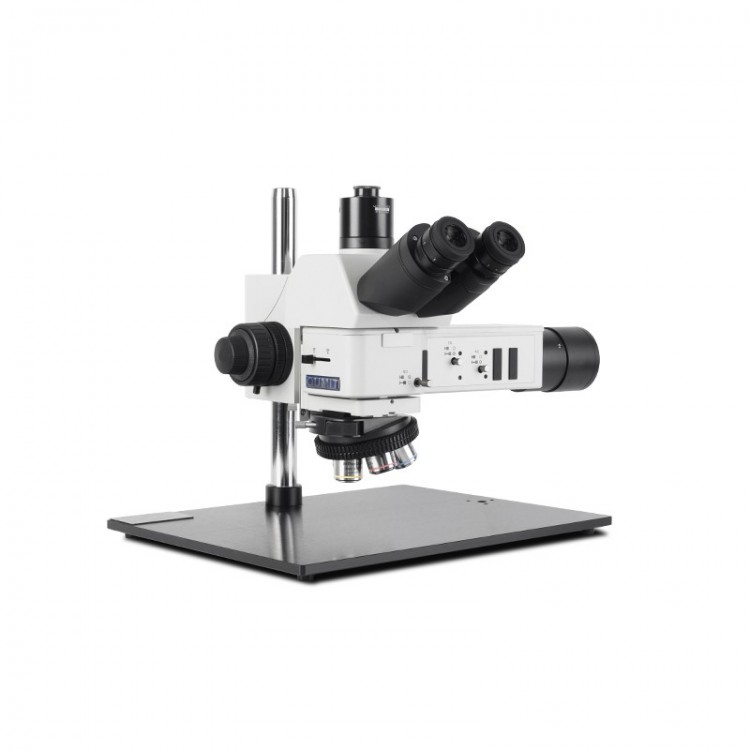

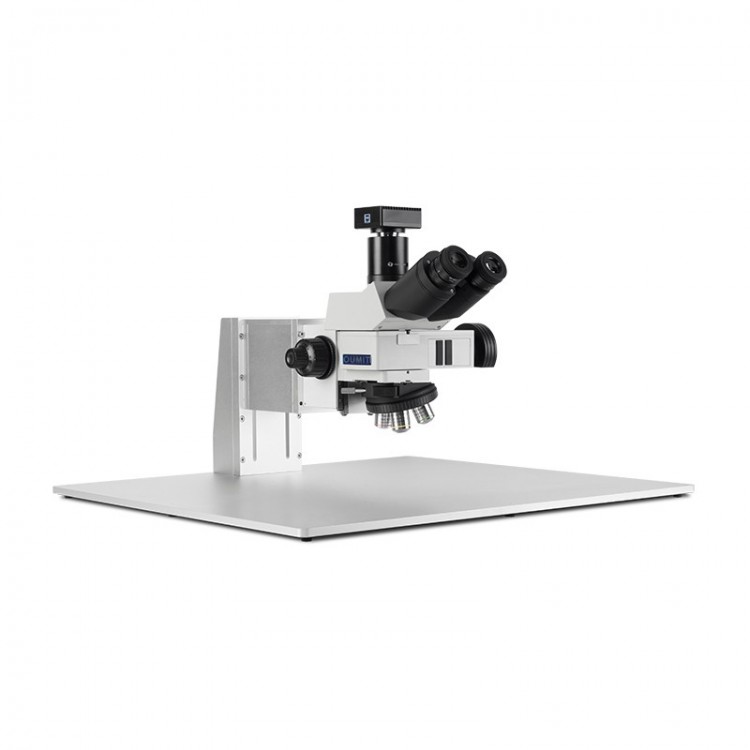

MT-BD Series Long Axis Light-Dark Field Metallographic Microscope

Inverted Long Axis Light and Dark Field

Just like the bright and dark fields of the long axis.

Observation Tube

M-SWTR-1Reverse image three-eye observation tube with a compact inverted optical path design.

Lightweight and easy to install, reducing overall weight.

The M-SWETR-2 is a three-eye scope similar to a hinge, with the imaging direction aligned with the actual direction of the object.

The direction of the object's movement is the same as the direction of the image plane's movement, making observation and operation convenient.

Eyepiece

SWH10X-H/23High eye-point wide field eyepieces, adjustable diopter

SWH10X-H/25High-eye-point wide-field eyepieces, adjustable diopter

Objective Lens

Half-tone contrasted microstructure5X10X20X50X

Converter

5Bore Inclined ClearDarkField converter, withDICSlot

Optical Magnification Ratio

50Multiple-500Multiple(Optional1000Multiple)

Digital Magnification Ratio

150Multiple-1500Multiple21.51. 1-inch display 2. 1" monitor 3. 1-inch screen Set100Magnification up to3000Multiple

Optical System

Infinite Color Difference Correction Optical System

Observation Method

MingDarkField/Polarized Light/DIC

Base

B3Large flat base, base320mmX260mmX16mmColumn height280mmComma, diameter32mm

Focus Bracket

Coarse fine-tuning coaxial, coarse adjustment stroke32mmFine-tuning precision0.002mm,With adjustable elastic strap to prevent slippage

Reflective illuminator

Variable field stop and aperture stop with adjustable centers; with filter holder slots and polarizer holder slots; with slanted lighting switch rod

Light Source

5W  LEDAdjustable light source

Photography and Video Accessories

0.35X/CTV，0.65X/CTVAll are adjustable focus, digital cameras and relay mirrors

PolarizedEstablish

U-PO3Polarizing Filter PlateU-AN360-3Rotary360°Polarizing prism insert plate

DICAttachment

DICPlug-in
