CDE-A Series Standard Lathe

One,Application Fields

CDE-AThe series of common lathes feature a mature structure, a wide range of spindle speed variations, and are suitable for use in workshops for small batch production and machine repair. They can turn internal and external cylindrical surfaces, conical surfaces, end faces, slots, chamfers, drill holes, reamed holes, and threads, as well as form oil grooves. They are also capable of processing metric threads, British threads, module threads, pitch diameter threads, and pitch threads.The size accuracy of the processed parts can reach IT7 grade, and the surface roughness can reach Ra1.6 grade.

Section II: Machine Tool Features

1. Full Bed Frame, Full Headboard Box。

2. The bed has been时效 treated, and the guideways are high-frequency quenched, extending the lifespan of the machine tool.

3. The bed rail is precision ground.Overall casting, machining, and grinding ensure high precision throughout the full length of the guide rail.

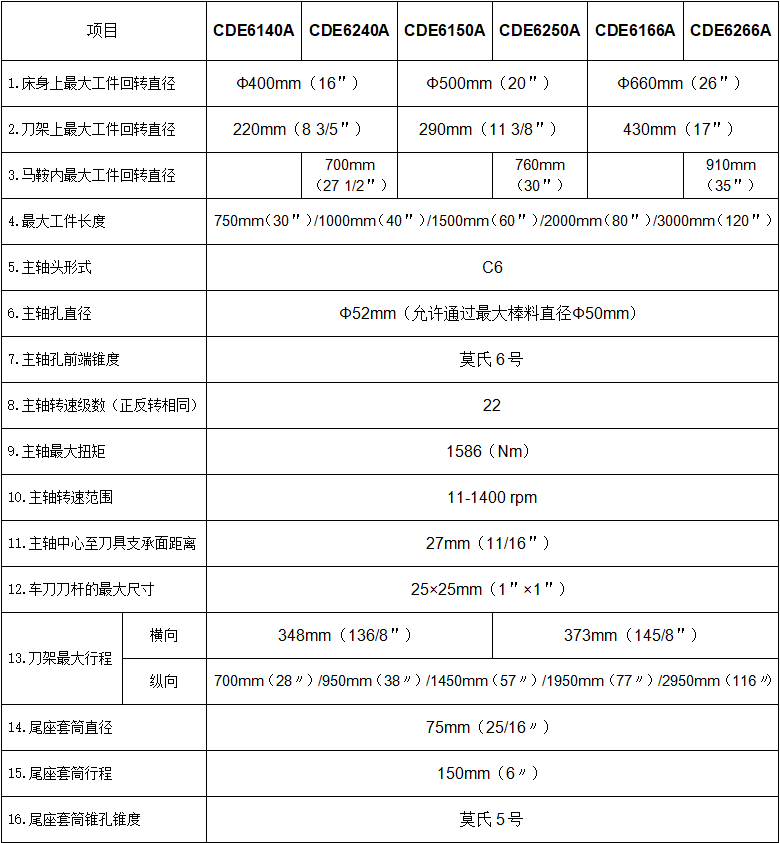

Section 3: Key Technical Indicators

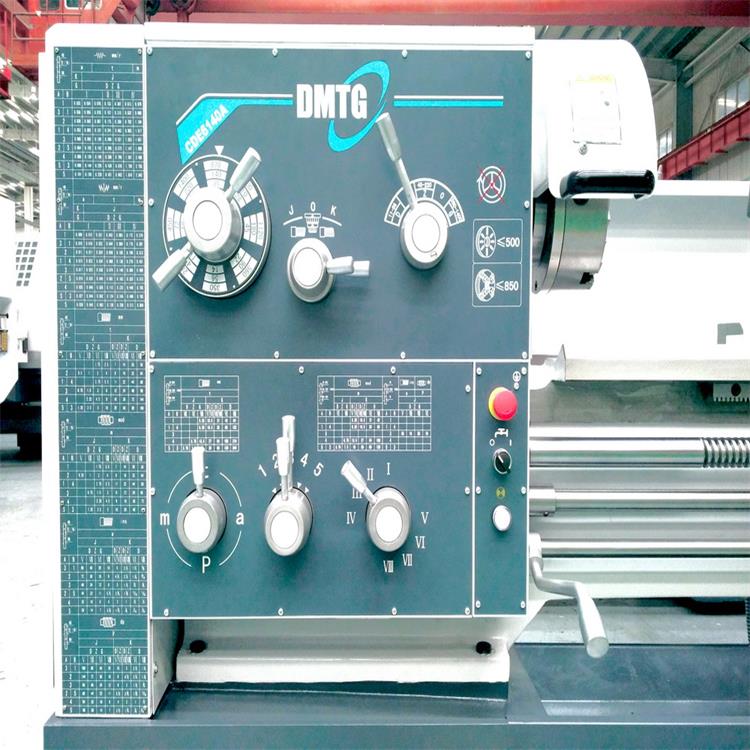

1. The headboard cabinet features a forced lubrication system.

2. The headboard box gears are precision-machined with high-quality equipment.

3、SuperiorDesign, manufacturing, and assembly.
