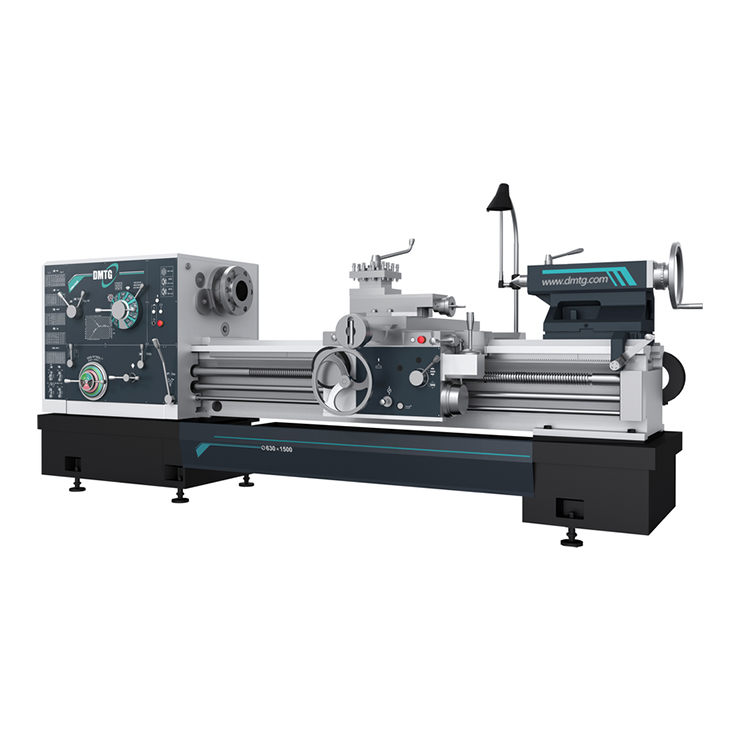

CW-E Series General Lathe

One,Application Fields

The CW-E series lathe is a new type of general-purpose lathe produced by Dalian Machine Tool Company, capable of handling various turning operations. It is mainly used for turning internal and external cylindrical and conical surfaces, as well as parts with rotating surfaces. It can also turn end faces, cut slots, sever, bore, and turn various commonly used metric, inch, module, and pitch diameter threads.This machine tool can process materials such as steel, cast iron, and non-ferrous metals.The main difference between the horizontal lathe and saddle lathe is that the saddle lathe features a detachable saddle bed, which expands the range of machining diameters and is particularly suitable for processing disc-shaped parts and irregular components.

Section II: Machine Tool Features

1. AvailableTurned parts with external diameters, internal bores, and end faces; capable of drilling, tapping, and oil groove broaching; suitable for machining various metric, imperial, module, and pitch diameter threads.Special orders can be processed with coarse thread. Particularly suitable for workshops engaged in small-scale production and machinery repairs.

2. Processable materials include steel, cast iron, non-ferrous metals, and non-metals.

3、The machined parts can achieve precise dimensions.IT7Grade, surface roughness up to1.6Grade.

4、The bed frame has undergone surface hardening and grinding, with a quenched hardness.HRC50；

5. The headboard cabinet gears have undergone tooth quenching and precision gear grinding, with high-speed gears achieving high accuracy.5Grade; The headboard box main shaft features a three-point support and has good rigidity; the handle of the headboard box is operated centrally. The feed box gears are also case-hardened.

6、Machine tool precision meets the national standards of the People's Republic of China.GB/T4020-1997 "Horizontal lathe Precision Inspection." This standard is a modified adoption of ISO 1708:1989 "Acceptance criteria for horizontal lathes."nditions for greneral purpose parallel lathe-Testing of the accuracy》。

7、Complete safety protection devices available for selection... Rear protection, collet protection, faceplate protection, turret protection, three-bar protection. Ensures the machine tool meets...GB15760-2004 Requirements of the "General Technical Conditions for Safety Protection of Metal Cutting Machine Tools" or European safety standards98/37/EC, 89/392EEC91/368EEC, 72/23/EEC……

8、The machine tool slide box is equipped with a quick movement device, an overload safety device, and a cross handle with longitudinal and transverse nuts for opening and closing.

9、Offering a variety of combinations including metric machine tools, English machine tools, and those with multiple special functions.

10、This series of machine tools offers a variety of spindle structures with different spindle bore diameters.100mm，105mm，130mmThree.

11、Main spindle head types availableC11TypeD11Two types available.Generally, we provideC11Spindle. Available for British machine tools and special orders.D11Spindle.

12、The main motor power of this series of machine tools is11kWSpecial Order for15kW）；

13、The headstock and feed box of the machine tool are lubricated using an oil pump shower system.

14、Please provide the Chinese content to be translated.GB/T16769-2008Test of "Noise Sound Pressure Level Measurement Method for Metal Cutting Machine Tools," the noise sound pressure level of this machine tool ≤83dB（A）。

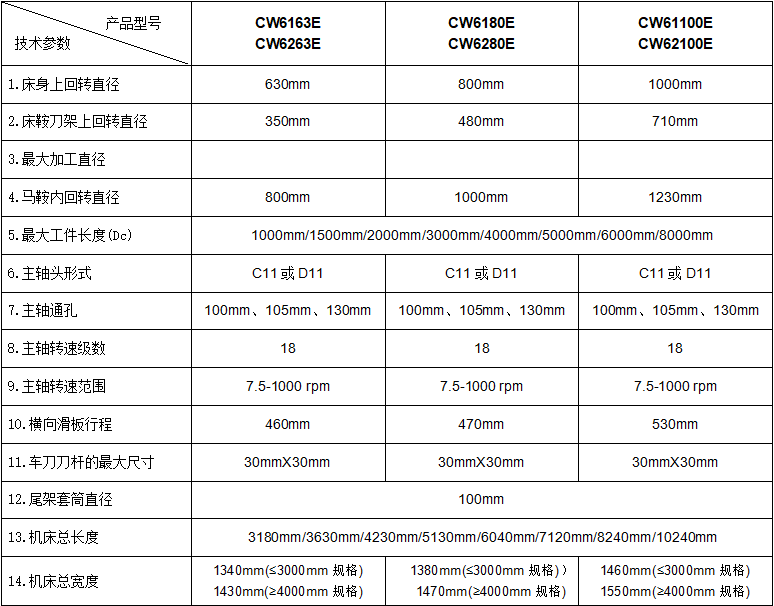

Section 3: Key Technical Indicators

1. Headboard cabinet features a forced lubrication system.

2. The bed-side cabinet gears are precision-machined with high-quality equipment.

3. Precision designed, manufactured, and assembled.
