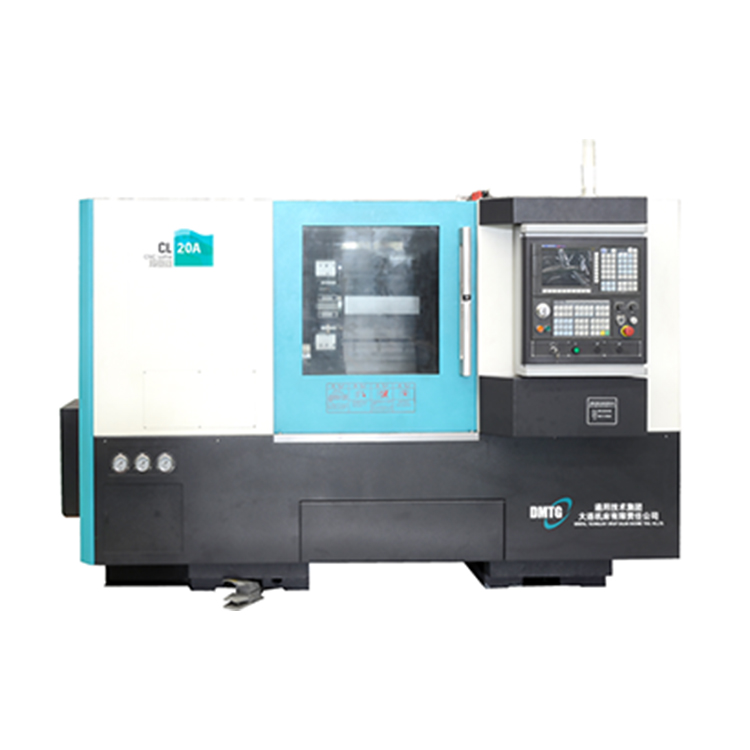

CL Series Inclined Bed CNC Lathe

I. Application Fields

The CL series inclined bed CNC lathe is designed for the machining of shaft and plate parts for industries such as automotive, mold, electronics, and light industry. The parts can be automatically processed through multiple operations such as turning, boring, drilling, reaming, and threading with a single setup.

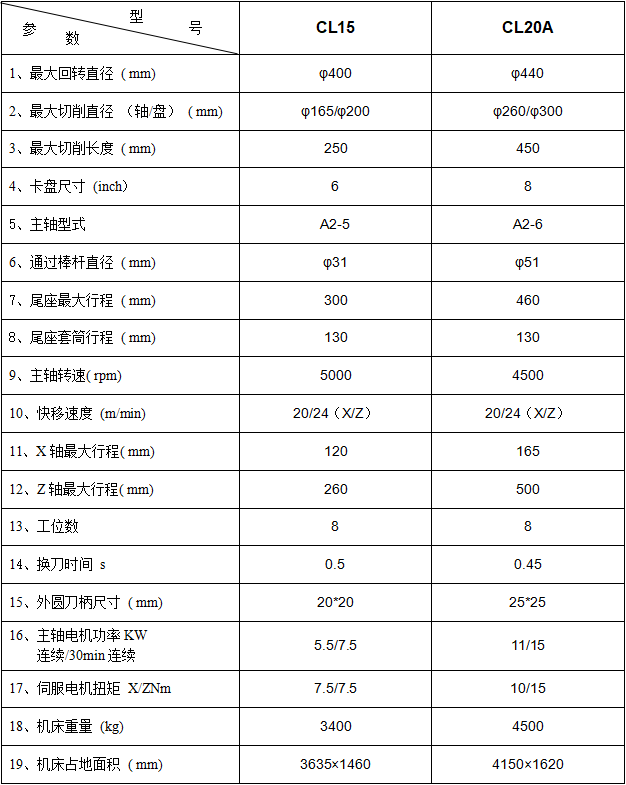

Section II: Machine Tool Features and Key Technical Specifications

1. High-performance spindle. The spindle features NSK precision high-speed spindle bearing units at both ends, with appropriate pre-tensioning. Coupled with the span support and the box-type spindle housing, it provides the spindle with high rigidity and high-speed operation capabilities.

2. High rigiditySex hydraulic knife tower, with greater axial tension, ensuring the knife disc has high torsional rigidity and repeat positioning accuracy.

3. High-precision drive system. The machine tool is equipped with precision ball screw and linear rolling guide rail, offering high transmission efficiency and good precision retention. This ensures rapid and stable movement of the machine tool's tool holder, with high positioning accuracy.

4. The structure and machining accuracy of parts such as the bed body, saddle, screw, and support, which are related to precision, have been meticulously optimized, significantly enhancing the overall precision and reliability of the machine.

5. Machine tools provide continuous and effective guide rail lubrication, ball screw auto-lubrication, auto chip removal, and forced cooling, ensuring uninterrupted long-term operation. The spindle reaches high speeds of up to 5000 rpm, with rapid movement speeds of 20 m/min, and neighboring work station tool change time of only 0.5 seconds. This ideal combination of specifications and reliable performance can increase machining efficiency by over 10%.

6. Machine tools are fully enclosed for protection, completely preventing the leakage of iron chips and coolant. Various mechanical limit protections are paired with system self-diagnostic prompts and warnings, ensuring continuous operation without downtime of the machine tool, particularly suitable for 24/7 production lines.
