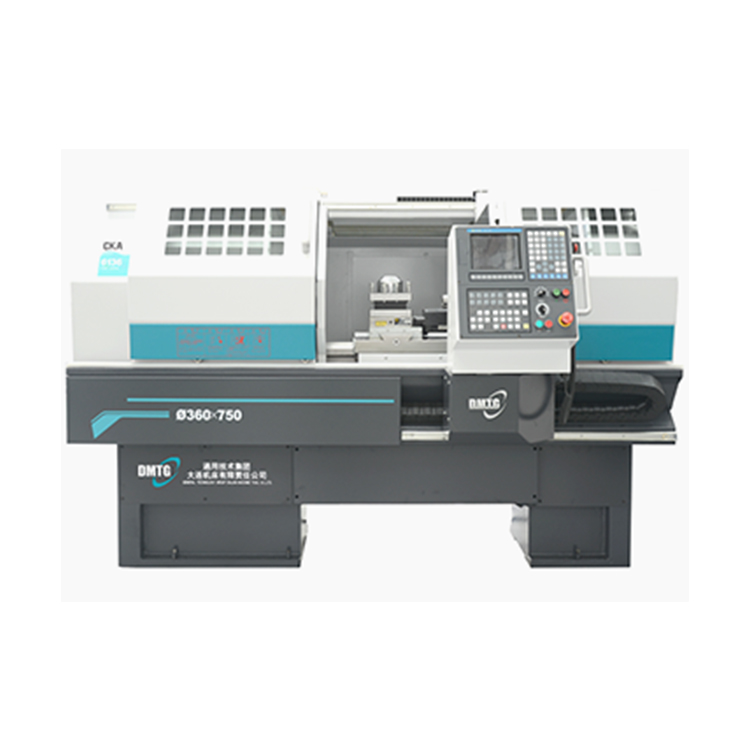

CKA Series Flat Bed CNC Lathe

I. Application Fields

CKASeries CNC lathe for longitudinal(Z)Line(X)Two SeatsMarkControlled CNC horizontal lathe. Capable of automatically completing cutting processes such as internal and external cylindrical, conical, arcuate, flat, slotting, and chamfering on various shaft and disc-type parts. It can also turn metric straight threads, flat threads, and British standard straight and tapered threads. Suitable for the production of a variety of products in small to medium batches, especially demonstrating superiority in complex and high-precision parts.

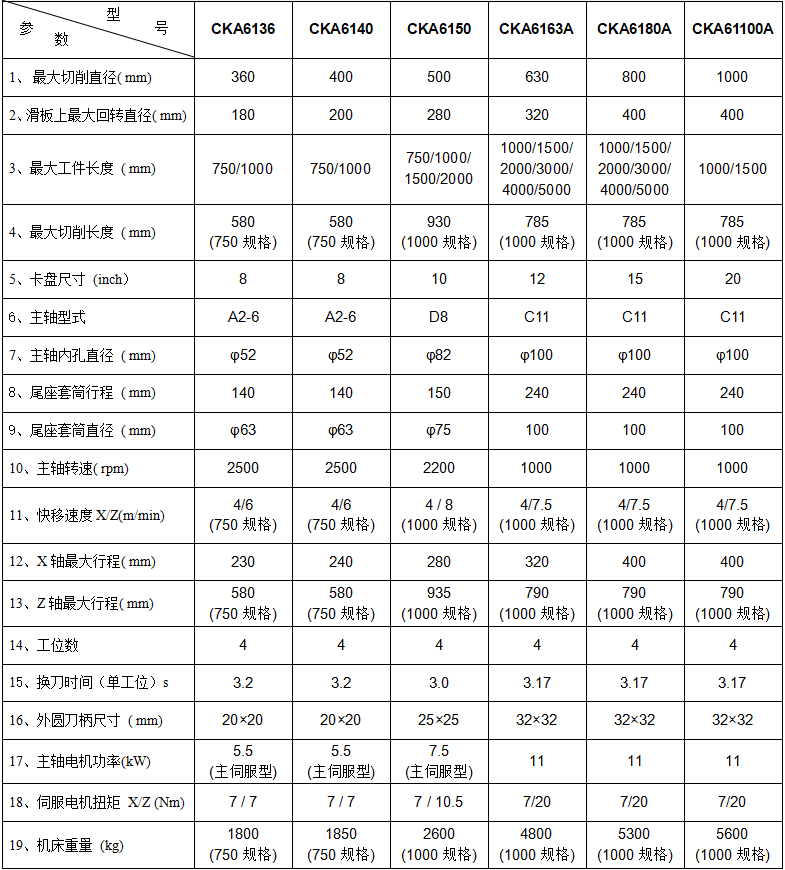

II. Machine Tool Features and Key Technical Specifications

1. The machine tool adopts a traditional horizontal lathe layout. The overall design boasts excellent sealing and meets safety standards. The bed, bed legs, and other main bases are included.All components are made using resin sand casting and artificial aging treatment, offering superior stability for the entire machine.

2. The machine tool longitudinal and transverse motion axes are driven by servo motors, featuring precise ball screw pairs and high-rigidity precision composite bearings. The semi-closed-loop control system utilizes a pulse encoder for position detection feedback. The guide rail pairs are made with internationally popular high-frequency quenching (hard rail) plus...Adhesive-plating process, with quick response, high precision, and long lifespan for all motion shafts.

3. High spindle speed, wide variable frequency speed range available, with low overall noise level.

4. Optional unique electro-control automatic gear shifting mechanism, allowing for automatic switching between high, medium, and low gears. The program can run continuously, significantly enhancing processing efficiency.

5. The machine tool's appearance protective design follows international trends, featuring a novel and unique style, waterproof and chip-proof, with easy maintenance; reflecting the characteristics of the times.

6. The main shaft bore has a large diameter, strong capability to pass bar stock, and a wide range of applications.

7. The machine tool operating system is designed according to ergonomic principles, featuring an independent and rotatable control box that can be moved to any position, facilitating operators to approach the tooling conveniently, reflecting a humanized design approach.

8. Equipped with a centralized lubricator for forced automatic lubrication of ball screw and guide rail interfaces, which effectively enhances the machine tool's dynamic response characteristics and extends the service life of the ball screw and guide rail.

9. Bed saddle and slider rail mating surface"Plastic-coating" treatment, enabling minute feed for moving parts to prevent creeping.

10. An optional internal spray nozzles without lifting the tool holder can more effectively improve workpiece surface quality and prevent coolant splashes.

11. Standard configuration features a vertical four-position turret from a domestic well-known brand. Special configurations are available with a horizontal six-position turret.

12. Machine tools can be configured with manual, pneumatic, or hydraulic chuck, as well as manual, pneumatic, or hydraulic tailstock, according to customer requirements.
