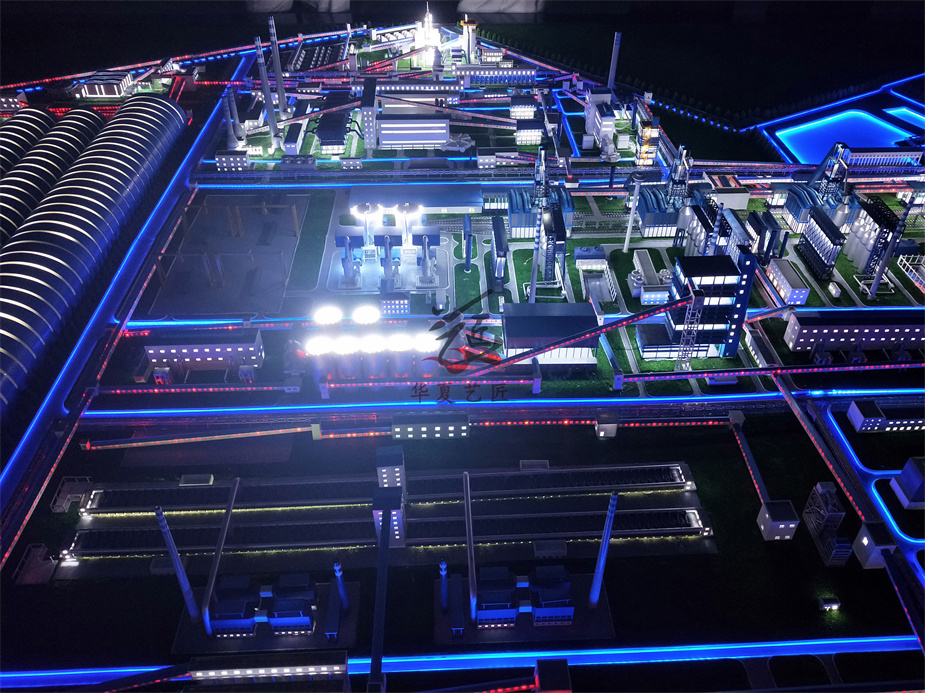

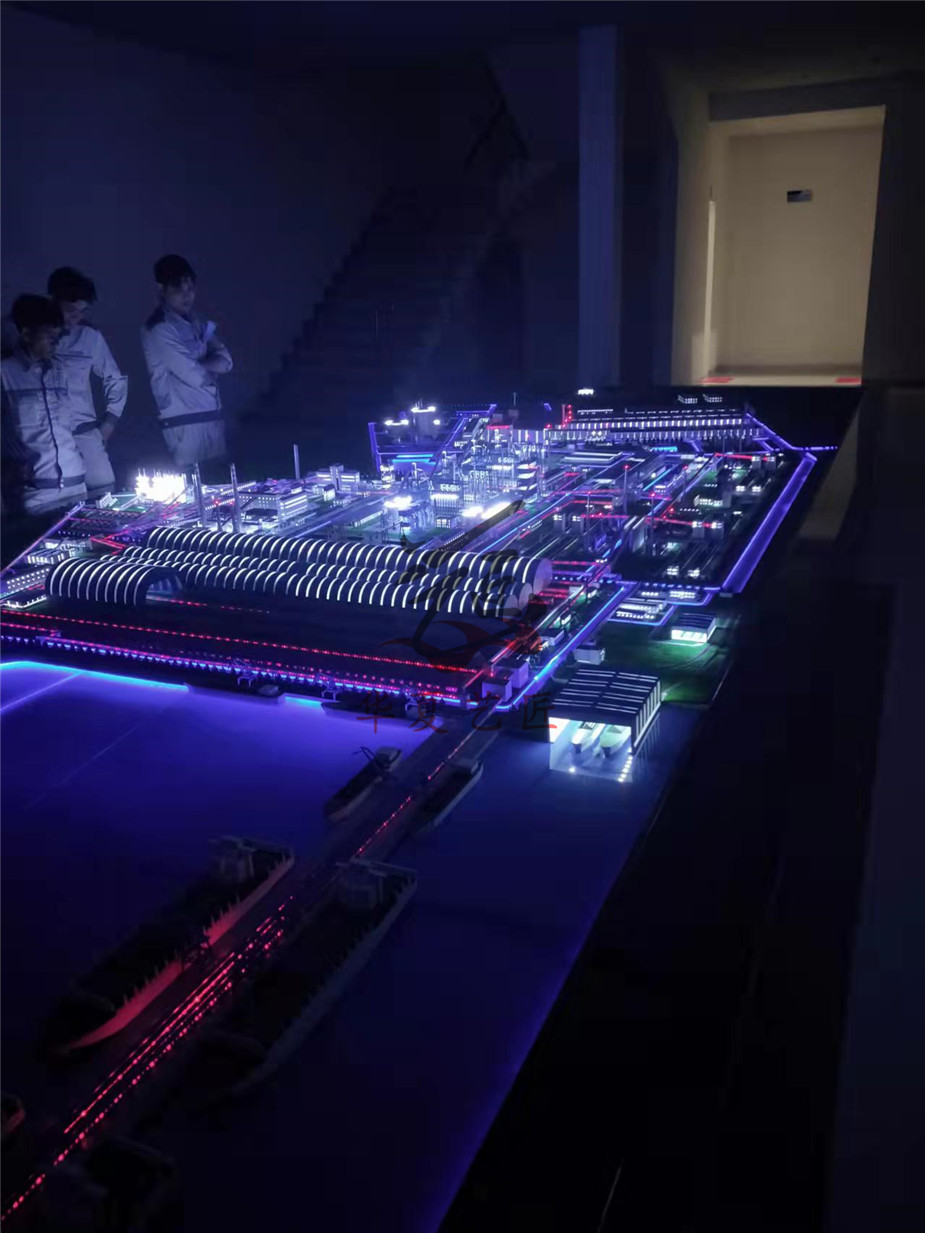

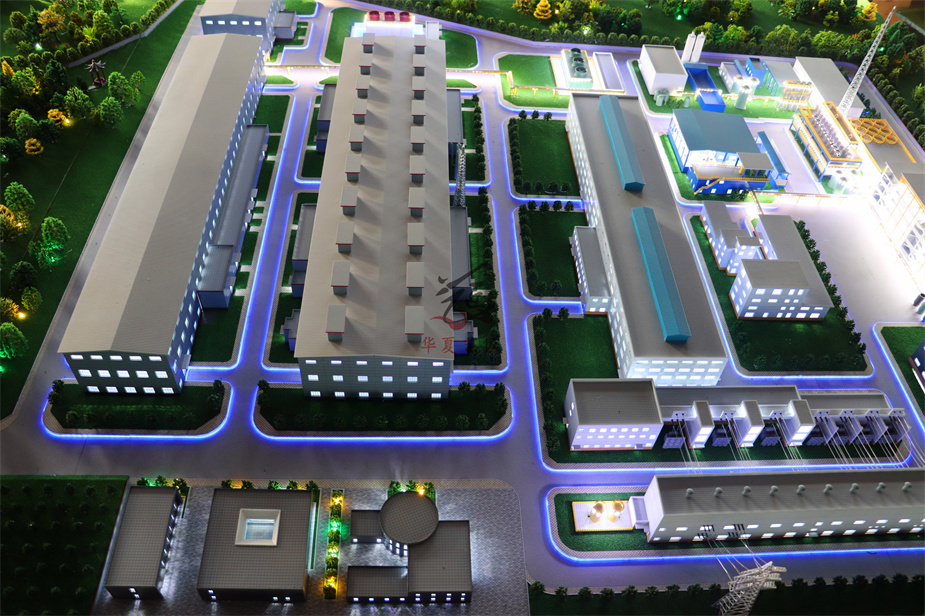

Mining Sandtable Model, Coal Mine Industrial Plaza Sandtable Model

Technical Requirements for Planning Sandtable Model Design, Manufacturing, and Installation:

The project exhibition area showcases part of the planning for the city of Lüliang. It requires the full 1:1 reconstruction of the buildings for six coal mines and one headquarters department. The buyer does not provide blueprints, and the supplier must independently collect site data through aerial photography.

During the design process, the overall plan must be enlarged for six coal mines and one headquarters, with a scale of 1:1000. In dealing with elevation and terrain design, it is necessary to meet both display requirements and the reasonable transition of various elevation data without excessive distortion.

All mountain terrain in the sand table must be reinforced with glass fiber reinforced plastic material.

bidders must provide detailed design drawings in advance.

e. Bidders must provide a sample model in advance for the buyer's reference and confirmation.

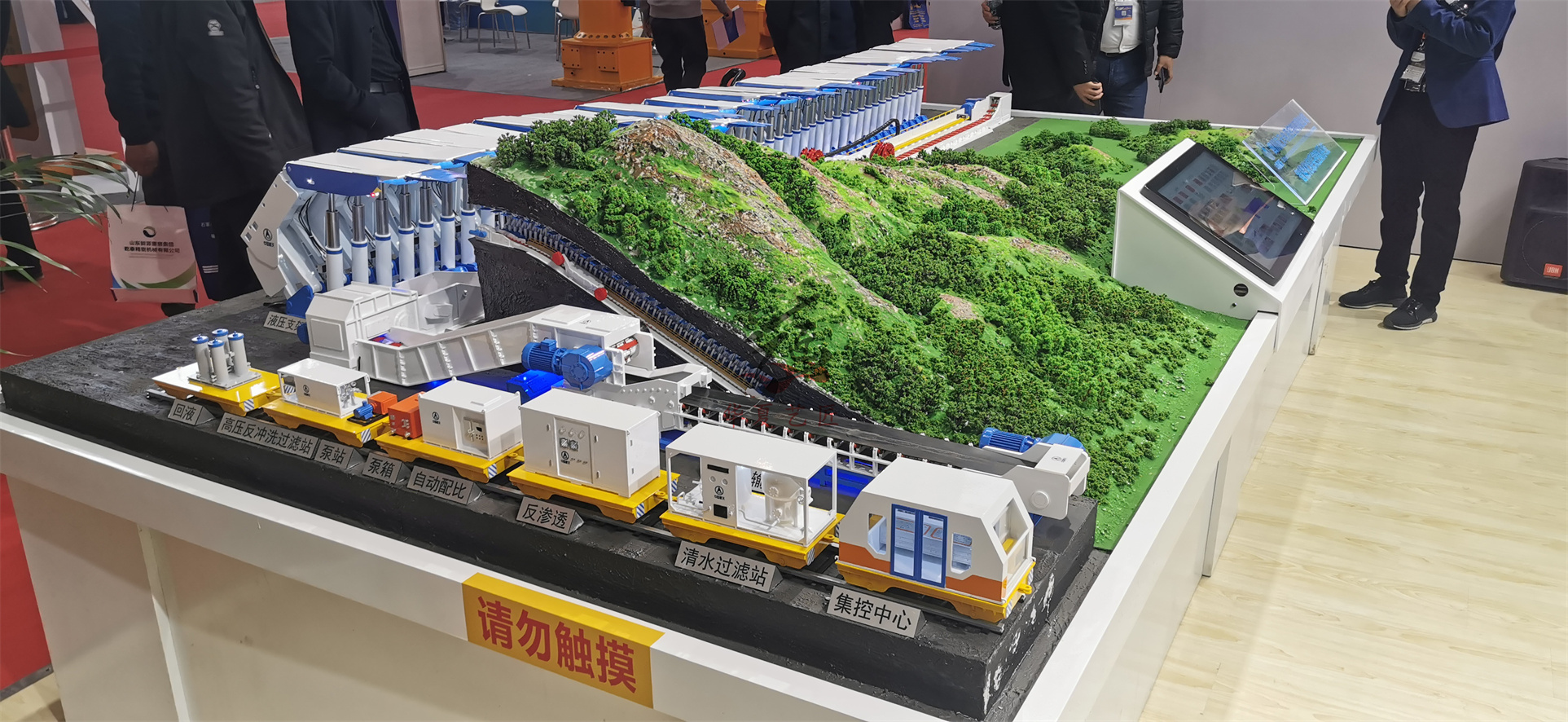

g. The Sandtable Content Department has created a mining process display model, which is elevated from the sandtable surface during the demonstration using an elevator.

Detailed production requirements

Design and Production Proportions and Dimensions:

Project Sandtable Design, Production, and Installation: Includes 1 sandtable model (dimensions 5.3m x 3.2m, overall scale 1:2000, local scale 1:1000); the model must be surveyed, designed, and produced according to the buyer's requirements, installed at the designated location, and responsible for maintaining the demonstration effect of the model according to display needs, as well as ensuring cleaning and maintenance within the service warranty period.预留检修口用电、维修端口的预留工作.

2. Landscape Environment Production Requirements: The overall terrain and landform must be meticulously recreated to reality. Suppliers are required to scan the entire terrain and landform of Lüliang City using drones, complete a 1:1 modeling for the buyer to confirm accuracy, and only then can the next phase of work proceed; local proportions can be scaled as needed for display purposes. Landscape arrangement requirements must consider high-quality ecological and environmental effects. The design should be full of vitality, dynamics, novelty, and creativity, utilizing lifelike and... Disarray The company's approach features a diverse array of trees, flowers, artificial hills, water landscapes, pebbles, ornamental sculptures, and a variety of electronic LED lights, all thoughtfully arranged to create a harmonious blend of points, lines, and surfaces, reflecting greenery, water systems, and more. Urban Planning The harmony and unity.

3. Greening Effect Production Requirements:The park features prominent landscaping with emphasis on the river and key nodes, characterized by distinct details. The lawns are crafted with a strong three-dimensional texture, using high-quality grass fibers. The plants are meticulously hand-wired to create lifelike trees and branches, perfectly simulating the overall scenery. The landscape is meticulously detailed, down to each tree and blade of grass, allowing for a clear view of the intricate details. The lawn is evenly crafted.

4. Lighting Configuration Requirements:The architectural lighting employs microcomputer-programmable lighting with pure-color CNC technology, creating a bustling urban atmosphere and a warm residential environment. It also requires the diverse display functions of the lights (steady, cycling, group flash, single flash) to render the expressiveness of different landscapes in the sand table. The lighting effects of the streetlights on both sides of the road should be bright, and the streetlights are crafted from copper. The lighting reflects the road and traffic conditions. Different forms and colors of luminous bodies are to be arranged in the green belts, beneath the tree layers, and around the buildings to enhance and highlight the night-time ambiance of the overall environment.

5. Road network configuration requirements:The road network should be scientifically planned with clear differentiation between trunk and branch roads. The roads are crafted using luminous technology.

6. Sculpture小品 installation requirements:All city landmark structures are required to be fully 3D printed models, achieving a 1:1 fidelity.

7. Single Building Manufacturing Requirements:Individual buildings must be meticulously crafted based on our real-life data and dimensions. They can employ exaggerated, bold, and innovative expression techniques without compromising the authenticity of the scene, aiming to create architectural models as art masterpieces. These models should highlight the image effects of urban architectural styles, offering customers a visual impact of high-quality projects. Proportionality with the city's landscape and environment should be considered, with dimensions not being overly large. The main structure is made of 1.5-2.0mm thick ABS high-grade fire-retardant engineering board, which is flexible, pure in quality, and easy to shape.

8. Facade Requirements:Emphasis should be placed on the selection of materials and construction techniques for the model, utilizing high-quality main materials for model construction. The surface carving equipment must be advanced, and the seamless joining technique should be exquisite, ensuring precise dimensions and smooth lines. After the individual units are molded, ensure they are spray-painted three times or more using the metal fluorocarbon paint spraying process. The window railings are made from metal laser-cut materials, ensuring the building facade has seamless alignment, a glossy finish, and does not deform or fade. Additionally, the building number sign features a backlit design.

9. Crystal Structure Manufacturing Requirements:A set of crystal nodes must be fully illuminated for the overall display of the long-term master plan.

10. Chassis Base Manufacturing Requirements:Suppliers must manufacture sand table bases according to the actual display center design, ensuring the model style aligns with the center's decor; the base material is white piano lacquer.

11. Control of equipment and facilities for sound, light, electricity, and water systems:Equipment for sound, light, electricity, and water systems is located within the foundation pit. The lighting circuitry is fully controlled by a touch panel integrated control system, with touch screen switches managing building lighting and separate environmental lighting controls (specifically set according to sales requirements). The design also addresses the safety and heat dissipation of electrical appliances and circuits. It is necessary to indicate the specific control methods, electricity consumption, and exact locations. If a low-voltage connection point is required, it must also be clearly shown in the design plan with its specific location.

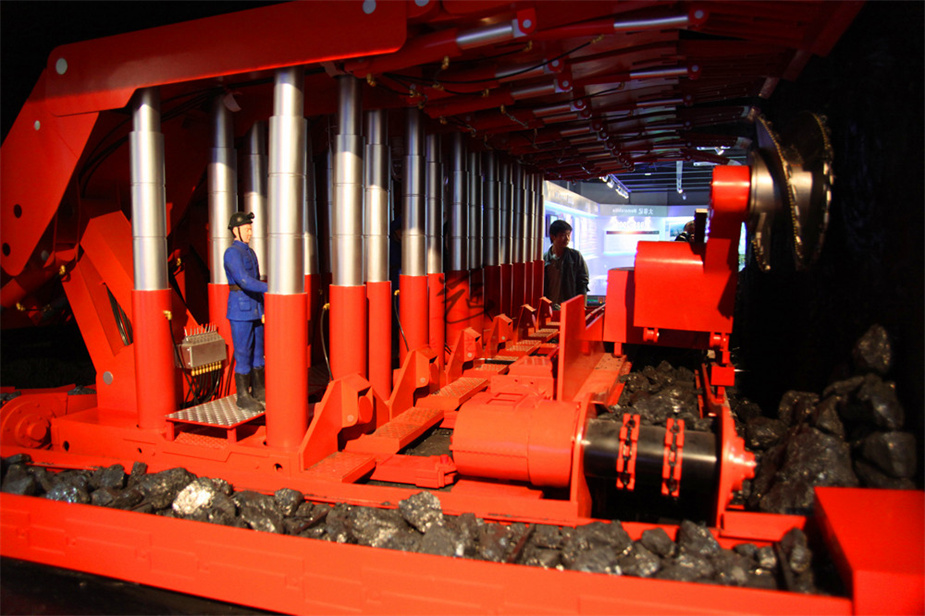

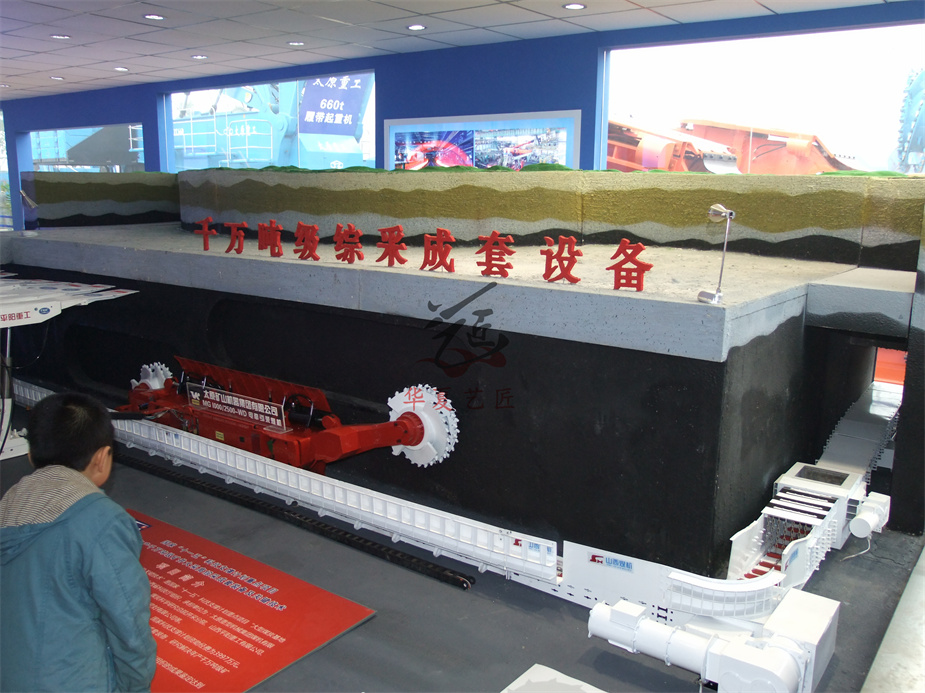

Key Sandbox Highlights: The overall sandbox showcases all mining locations of the company, as well as the details of mineral extraction processes.
