Product Name: BFLP

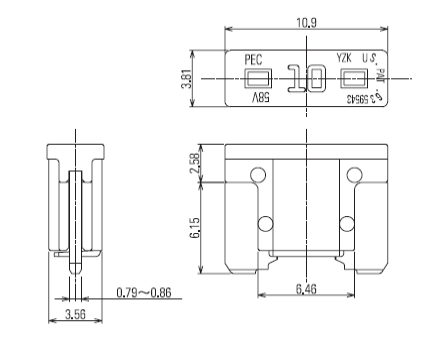

Dimensions: 11x9x3.5mm
Material: PC
Rated Current/Voltage: 2A, 3A, 4A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A/32V

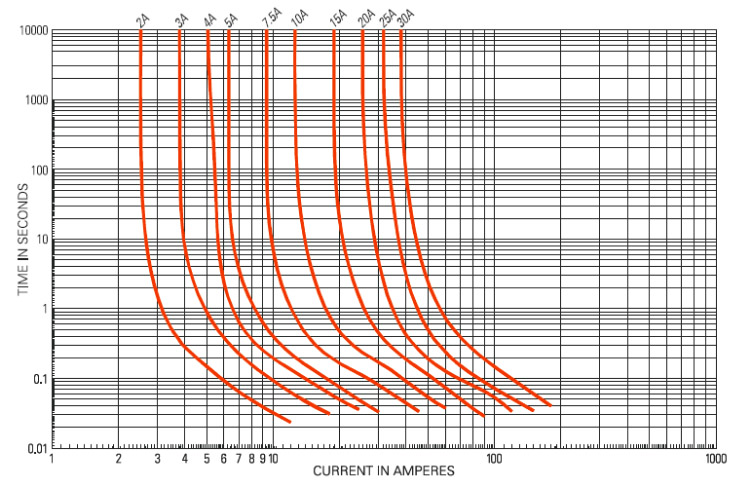

| Test Current (A) | Fuse time | |
| Please provide the Chinese content you would like to be translated into American English. | Please provide the Chinese content to be translated. | |
| Rated Current 110% | 100 hours | - |
| Rated current 135% | 0.75 seconds | 600 seconds |
| Rated current 160% | 0.25 second | 50 seconds |
| Rated Current 200% | 0.15 seconds | 5 seconds |
| Rated Current 350% | 0.04 second | 0.5 seconds |
| Rated Current 600% | 0.02 seconds | 0.1 second |
| Fuses may exhibit varying characteristics depending on usage. | ||
| Rated Voltage: DC 58V | ||
| Capacity variation due to ambient temperature: | ||
| Every 1℃ change in capacity occurs at a rate of -0.15%. | ||
| Rated Breaking Capacity: 1000A | ||
| Product Catalogue: | ||
| Rated Current (A) | Product Model | Shell Color |
| 2 | 1190 | Grey |
| 3 | 1191 | Purple |
| 4 | 1192 | Peach pink |
| 5 | 1193 | Golden brown |
| 7.5 | 1194 | Brown |
| 10 | 1195 | Red |
| 15 | 1196 | Blue |
| 20 | 1197 | Yellow |
| 25 | 1198 | Colorless and transparent |
| 30 | 1199 | Green |
| Quantity (1 box): 20,000 pcs | ||
