Product Name: BFLP

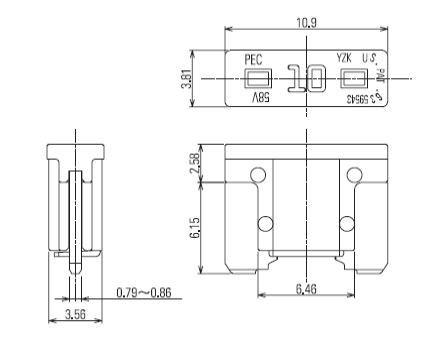

Dimensions: 11x9x3.5mm
Material: PC
Rated Current/Voltage: 2A 3A 4A 5A 7.5A 10A 15A 20A 25A 30A/32V

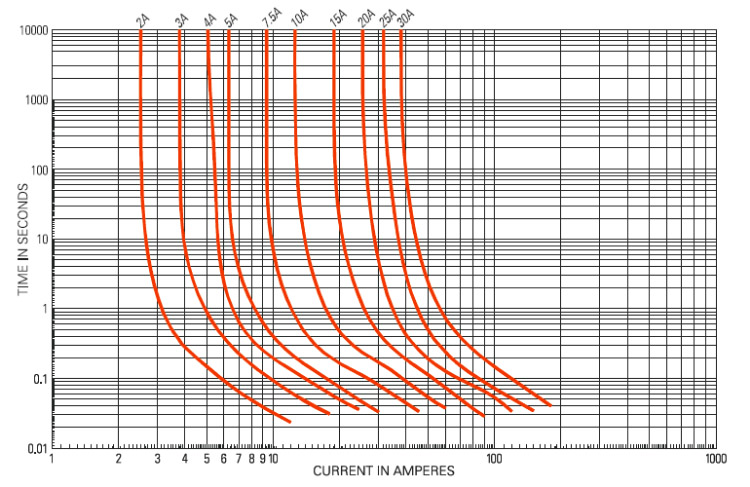

| Test Current (A) | Fuse Time | |
| Please provide the Chinese content you would like translated. | Great | |
| Rated Current 110% | 100 hours | - |
| Rated Current 135% | 0.75 seconds | 600 seconds |
| Rated Current 160% | 0.25 second | 50 seconds |
| Rated Current 200% | 0.15 seconds | 5 seconds |
| Rated Current 350% | 0.04 seconds | 0.5 seconds |
| Rated current 600% | 0.02 second | 0.1 second |
| The fuse characteristics may vary depending on usage conditions. | ||
| Rated Voltage: DC 58V | ||
| Capacity variation caused by ambient temperature: | ||
| Every 1℃ change in capacity is -0.15% in variation. | ||
| Rated Breaking Capacity: 1000A | ||
| Product Catalogue: | ||

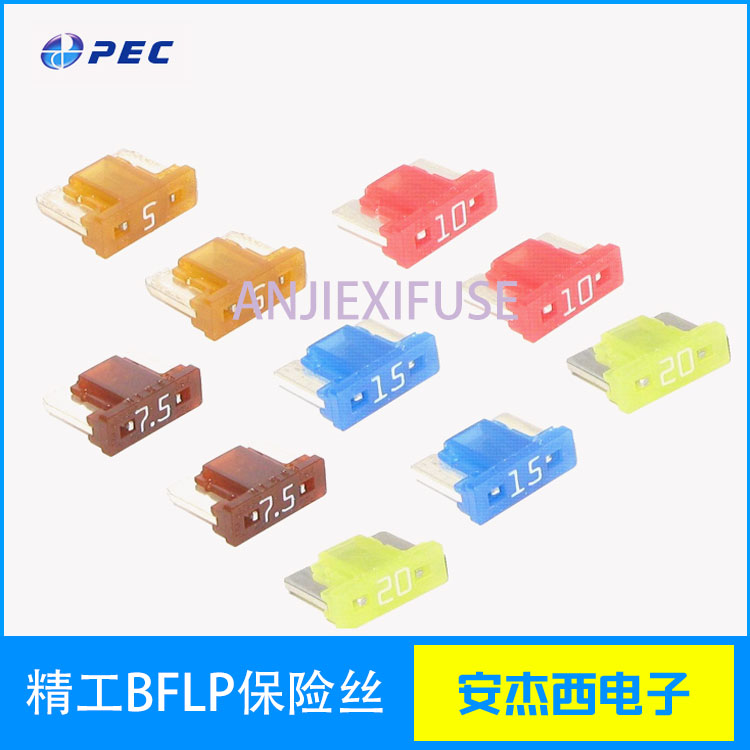

| Rated Current (A) | Product Model | Exterior Color |
| 2 | 1190 | Grey |
| 3 | 1191 | Purple |
| 4 | 1192 | Peach pink |
| 5 | 1193 | Yellowish-brown |
| 7.5 | 1194 | Brown |
| 10 | 1195 | Red |
| 15 | 1196 | Blue |
| 20 | 1197 | Yellow |
| 25 | 1198 | Colorless and transparent |
| 30 | 1199 | Green |
| Quantity (1 carton): 20,000 pcs | ||
