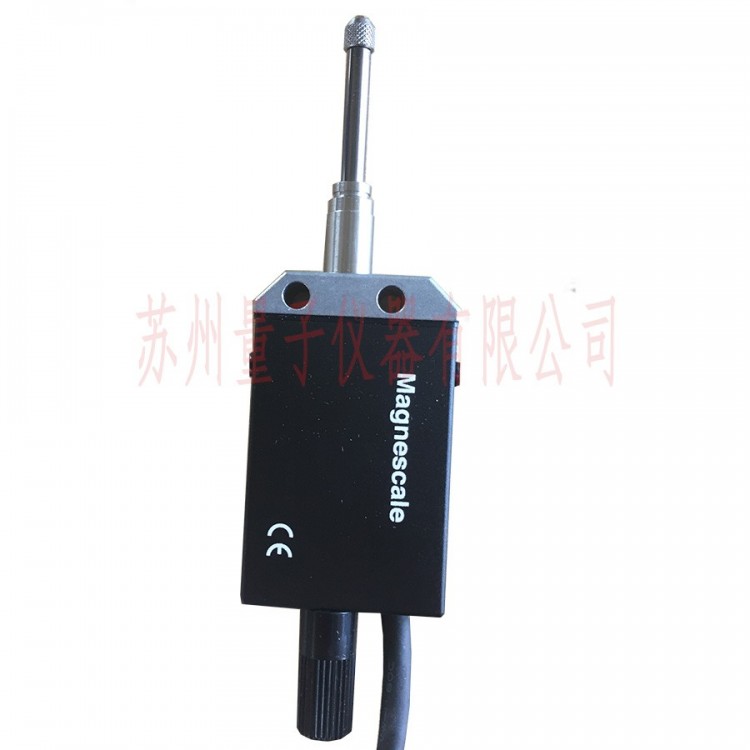

Japanese Magnescale Displacement SensorDT512N
Good environmental protection: Equivalent to IP64 (Type P)
Measurement Range: 12mm, 32mm
Resolution: 1µm, 5µm
Accuracy: 6µm p-p, 10µm p-p (varies due to measurement length and resolution)
Supports φ8mm central control pipe installation and side installation via M4 screws
Oil-resistant and excellent dustproof properties
Available with pneumatic extrusion type, driven by the main shaft through air supply (only for 32mm models. 12mm models require optional products).
| Main Specifications | |||||
|---|---|---|---|---|---|
*1 Connect to MT20 Changes to the content will not be notified separately. | |||||
| Model | DT512N | DT512N-T10 | DT512P | DT512P-T10 | |
| Spindle Drive Method | Spring extrusion type (can be pneumatically extruded using accessory DZ176) | ||||
| Measurement Range | 12mm | ||||
| Resolution | 1μm | ||||
| Measuring Force (at 20℃) | Upward | 0.7±0.5N | 7N or lower | ||
| Lateral | 0.8±0.5N | 1.7N or less | |||
| Downward | 0.9±0.5N | 1.7N or less | |||
| Accuracy (at 20℃) | 6µm p-p | 3µm p-p*1 | 6µm p-p | 3µm p-p*1 | |
| Operating Temperature Range | 0 ～ 50℃ | ||||
| Storage Temperature Range | -10 ～ 60℃ | ||||
| Output Cable Length | 2m | ||||
| Central control pipe diameter | φ8 0‒0.015mm | ||||
| Measurement Head | Steel ball φ3mm (M2.5p×0.45 tensioned screw) | ||||
| Quality *2 | Approximately 75g | Approximately 80g | |||
| Ingress Protection (IP) rating | ― | Comparable to IP64 | |||
