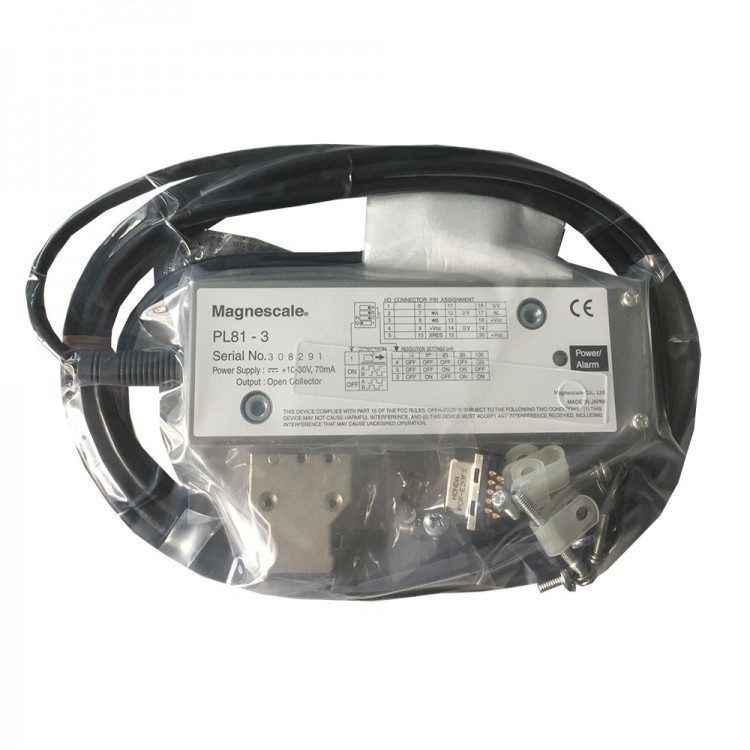

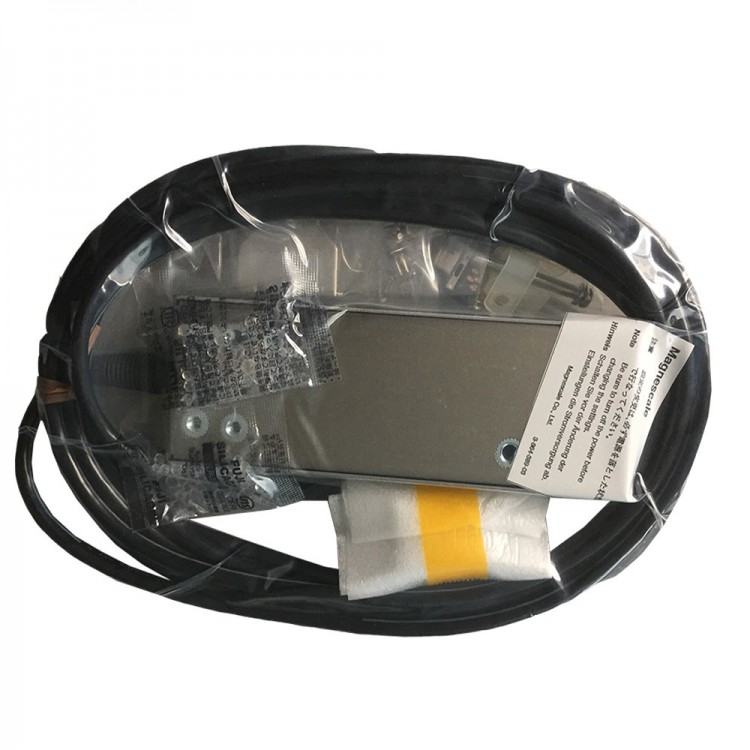

Japan Magnescale Reading Head PL81-B
Small dimensions and shape
Interposer box for automatic position control
High-speed Response: 300m/min
Resolution: 10µm, 20µm, 25µm, 50µm, 100µm
Main Applications: Layout machine, woodworking machine, cutting/shearing machine, automatic positioning control for machine tools
| Main Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Changes to the recorded content will not be announced separately. | ||||||||||
| Model | PL81 | PL82 | ||||||||
| -3 | -5 | -7 | -A | -B | -3 | -5 | -7 | -A | -B | |
| Sensor Cable Length | 3 | 5 | 7 | 10 | 15 | 3 | 5 | 7 | 10 | 15 |
| Quality (g) | 640 | 720 | 800 | 910 | 1050 | 640 | 720 | 800 | 910 | 1050 |
| Accuracy (at 20℃) | (50+10L/1000)μm (L: Measurement Range mm) (Dependent on Combination with SL110/130) | |||||||||
| Resolution | 10，20，25，50，100μm | |||||||||
| Alert displayed | LED light turns orange (normal operation: green) | |||||||||
| Gaps | Max.1.5mm | |||||||||
| Large response speed | 300m/min | |||||||||
| Output Circuit | Large rated voltage: 40V, large rated current: 100mA Differential Voltage Line Driver MC34C87 (or equivalent product) | |||||||||
| Current Voltage | DC 10 ～ 30 V | DC 4.75 ～ 5.25 V | ||||||||
| Consumption Current | Max.70mA (2.1W) | Max.300mA (1.5W) | ||||||||
| Protection Level | Comparable to IP67 (only for the read head. The inner insert box is not a protective structure) | |||||||||
| Operating Temperature Range | 0 ～ +45℃ | |||||||||
| Storage Temperature Range | -20 ～ +50℃ | |||||||||
