WanHao Image Measurement System VMS-2010FS Manual 2.5D
VMS-2010FSProduct Application
The instrument is suitable for applications requiring two-dimensional coordinate measurement.
Domain, widely applied in industries such as machinery, electronics, instruments, and plastics.
Product Features

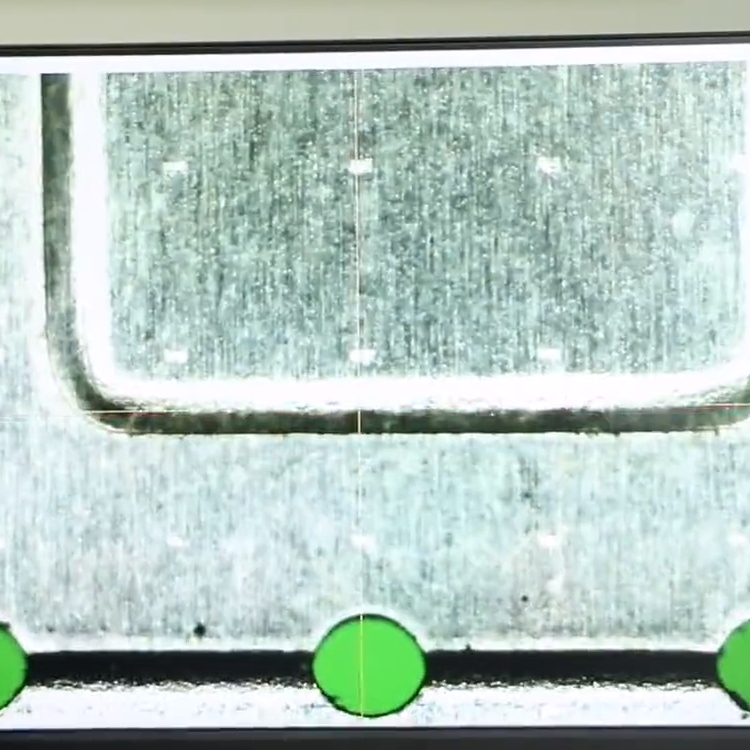

·Independently developed QMS3D-F software, compatible with the latest Windows systems, with simple operation and extensive features. Standard equipment includes a custom industrial high-definition digital camera with high color fidelity and the ability to switch between full-screen image views. The electronic feedback lens ensures precise optical magnification, along with programmable and manual brightness adjustment functions. The software enables auxiliary brightness control for more accurate lighting intensity, making it easier for users to determine if the light is over-saturated. The dual-laser pointer assists in locating and measuring parts with greater precision, effectively enhancing measurement efficiency; also capable of handling complex and challenging measurement tasks.
Achieves highly assisted measurement
Reserved fixture holes for easy installation of various clamping fixtures;栅尺resolution is 0.5um.

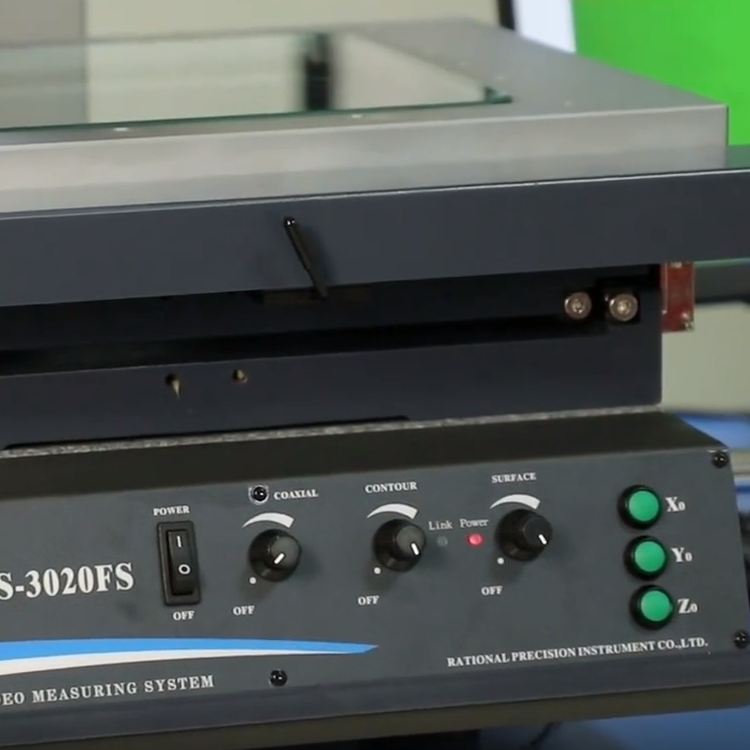

Both hardware and software feature a one-button reset function.
Connect to traditional foot switches, which not only assist in enhancing measurement efficiency but also enable (customized software) to send data to ERP or MES to improve data transfer efficiency.
VMS-2010FSTechnical Specifications
Model | VMS-2010FS | VMS-3020FS | VMS-4030FS | ||
WorkerPlease provide the Chinese content to be translated.Tai | Metal Table Dimensions (mm) | 404*228 | 500*330 | 606*466 | |
Glass Table Dimensions (mm) | 260*160 | 350*250 | 450*350 | ||
Exercise stroke (mm) | 200*100 | 300*200 | 400*300 | ||
X/Y/Z Display Resolution | 0.5um | ||||
Indication Error | E…=(2.5+L/100) umE ≤ 10 (Z-axis stroke per 100mm) | ||||
Cross-sectional origin consistency error (um) | |||||
Dimensions (Length x Width x Height) mm | 540*560*850 | 760*600*900 | 970*670*940 | ||
Instrument Weight (kg) | 110 | 140 | 240 | ||
Z-axis travel (mm) | 150 (2010FS/3020FS available up to 300); 3020FS/4030FS available up to 400 | (For use with precision head, the diameter is 19mm) | |||

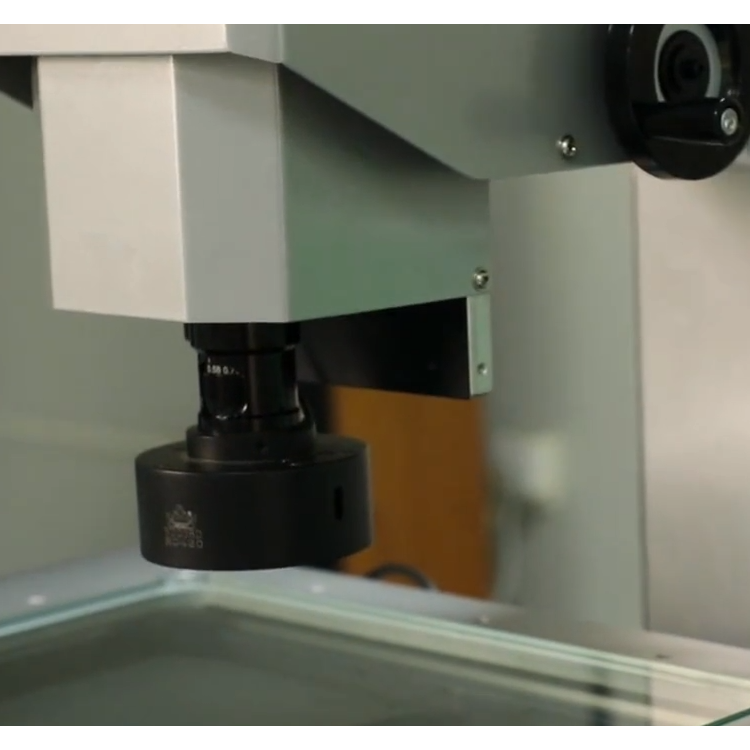

Imaging System | Camera: Color Gigabit Network CameraVariable focal length: 0.58X～7.5X; Total video signal-to-noise ratio: 27.4X～351.3X (24-inch monitor) | ||||
Power: AC 100V～240V, 50/60Hz; Power Rating: 50W (not including idle power) | Brand Computer (Standard Configuration) | ||||
Recommended placement table: Breaking load ≥ 350kg, dimensions (length x width x height): 1000*600*500(mm)
Optional accessories: cross line, DC3000 digital indicator, ring adapter, coaxial light adapter
