Servo Electric Cylinder Brand RLB94 Cylinder

Servo electric cylinder brands integrate AC servo motors, servo drives, high-precision ball screws, modular design, and other technologies, offering features such as compact structure, low inertia, rapid response, low noise, and long lifespan. The servo motor is directly connected to the transmission screw of the electric cylinder, reducing the inertia and clearance of intermediate links, enhancing controllability and precision. The servo motor is integrated with the electric cylinder, making installation easy and usage convenient. The main components of the electric cylinder are all made with internationally renowned brand products, ensuring stable performance, low failure rate, and high reliability.

One, Servo Electric Cylinder Working Principle
An electric cylinder is a modular, integrated design product that converts the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut assembly. Utilizing the closed-loop control characteristics of the servo motor, it allows for precise control of thrust, speed, and position with ease; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It represents a revolutionary new product for achieving high-precision linear motion control.

Section II: Electric Cylinder Types
Direct-Connected Servo Electric Cylinder
The direct-acting servo electric cylinder integrates AC servo motor, servo driver, high-precision ball screw, modular design, and other technologies, featuring a compact structure, low inertia, fast response, low noise, and long lifespan. The servo motor is directly connected to the cylinder's transmission screw, reducing the inertia and clearance of intermediate links, enhancing control and precision. The servo motor is integrated with the cylinder for easy installation and convenient use. The main components of the cylinder are all made with internationally renowned brand products, ensuring stable performance, low failure rate, and high reliability.

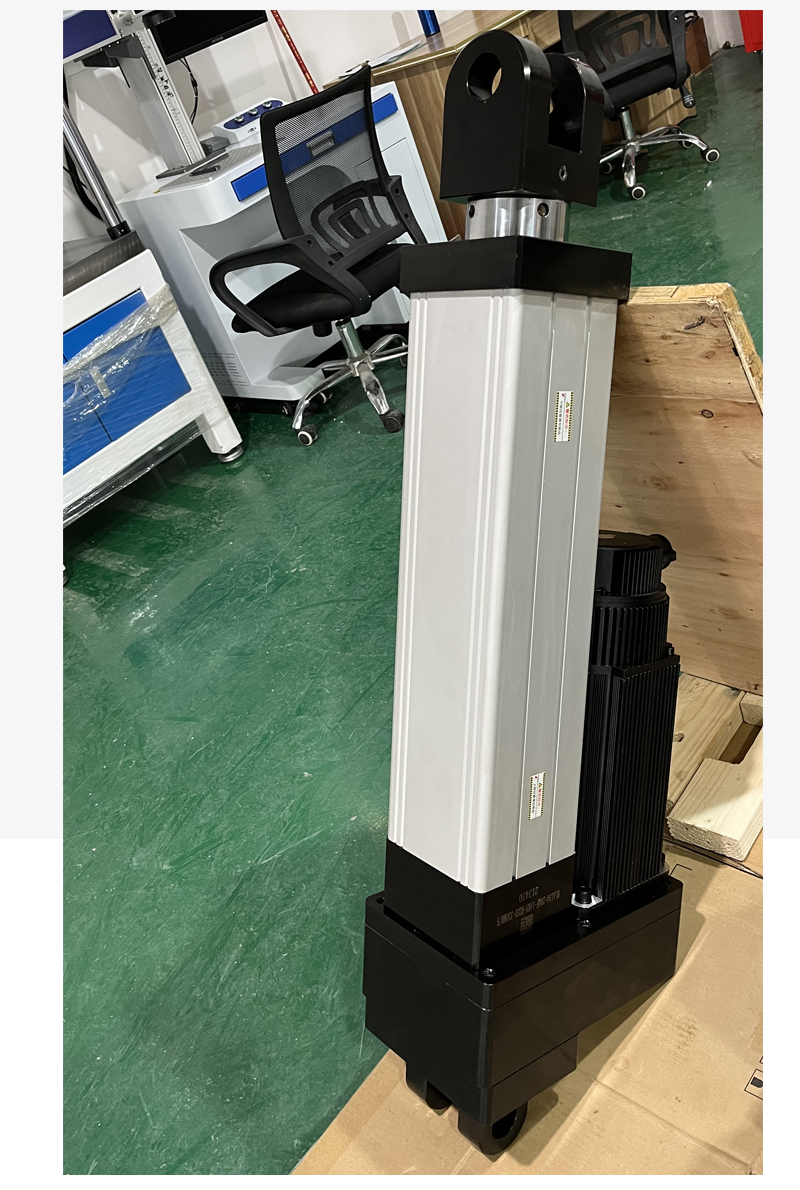

2. Folding Electric Cylinder
The folding electric cylinder is suitable for installations with limited space due to its compact overall length. Moreover, the imported synchronous belt chosen for this solution boasts high strength, minimal gap, and long service life, contributing to the cylinder's excellent controllability and precision. The servo motor pairs with the cylinder seamlessly, offering easy installation, straightforward setup, and convenient operation.

Section 3: Electric Cylinder Models

Four: Overview of Servo Electric Cylinder Features

1. Precise path localization and controllability
2. Modular assembly applications, saving mechanical design space
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-section control
6. Attachments and installation methods are available in various choices.
7. Available with a variety of complete motor and controller sets.
8. Diverse product selection available.
9. Simple design, low maintenance costs, and convenient.

5. Electric Cylinder Usage Instructions and Precautions
1. Electric cylinders are precision mechatronic transmission devices. Please carefully read the precautions and instruction manuals for the motor, driver, and other components before use.
2. This product features an internal high-strength magnet, equipped with a magnetic induction switch and a stroke limit warning sign externally. Please fine-tune the required stroke within the warning sign.
3. Our company uses a fully-sealed unit, filled with high-quality lubricating oil, requiring no regular maintenance from the customer; for specific high-frequency and high-speed applications, our customized design includes a lubricating oil filling port.
4. During the servo electric cylinder tuning, it should be operated at low speed with brief movements first, then increase the speed after all aspects are normal to avoid damaging the electric cylinder.

Section 6: Application Range of High-Power Electric Cylinders

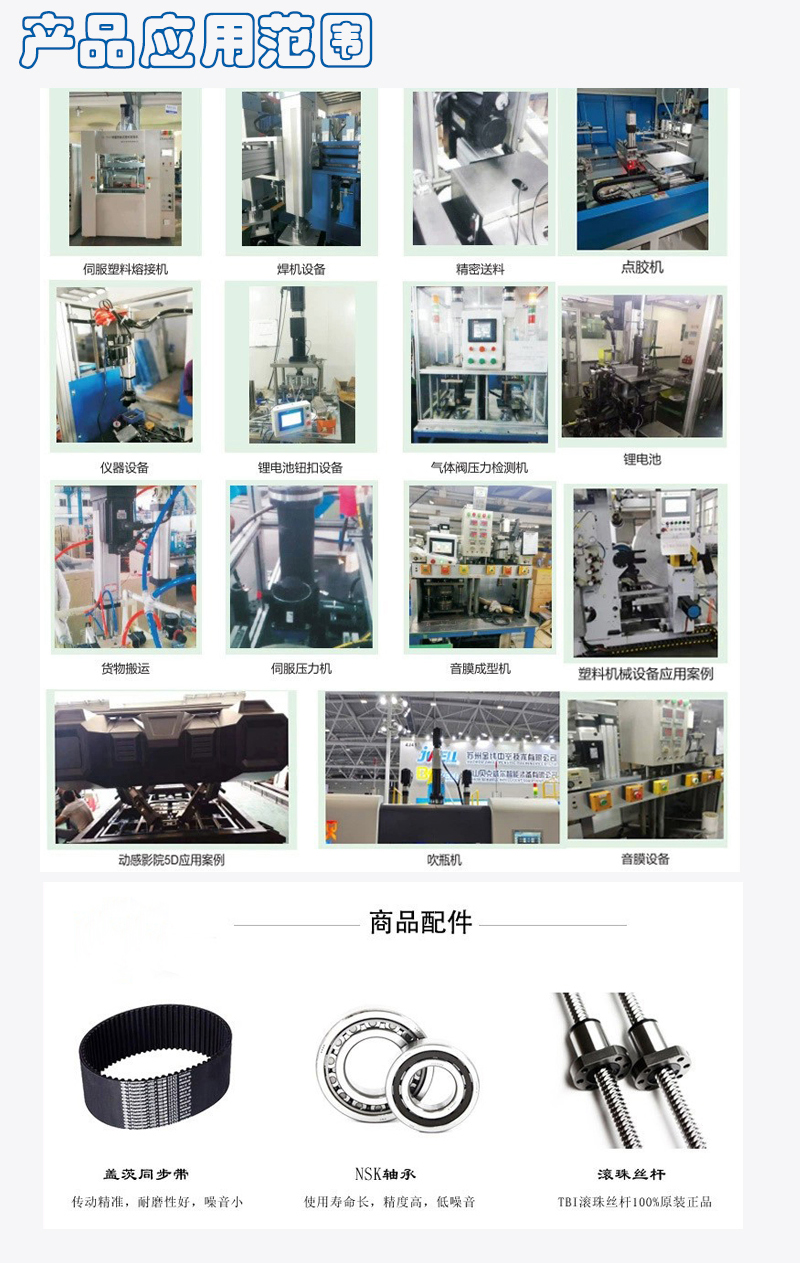

RuiLian Servo Electric Cylinder brand products cover multi-degree-of-freedom simulation, dynamic entertainment, precision machining, robots, mechanical lifting platforms, car presses, automotive manufacturing equipment, automated production lines, petrochemical industry, material handling, injection molding machines, mold control, valve control, precision machine tools, food industry, and more.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a 1.5-year (18 months) warranty from the date of factory shipment, under normal usage conditions (excluding any man-made damage).
2. Damage caused by human factors or other abnormal use is not covered under the warranty.
3. Unauthorized disassembly of the electric cylinder is prohibited without the manufacturer's permission; any self-disassembly or modification is not covered under warranty.
