RLC80 Explosion-Proof Servo Electric Cylinder

The explosion-proof servo electric cylinder has a short overall length, suitable for installations with limited space. Additionally, the imported synchronous belt chosen for this solution features high strength, minimal gap, and long service life, contributing to the cylinder's excellent controllability and precision. The servo motor pairs with the cylinder for flexible operation, easy installation, straightforward setup, and convenient use.

Product Details Description

Section 1: Servo Electric Cylinder Working Principle
An electric cylinder is a modular product with an integrated design that converts the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut pair. Leveraging the closed-loop control characteristics of the servo motor, precise control over thrust, speed, and position can be easily achieved; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It is a revolutionary product that represents a new breakthrough in the control of high-precision linear motion.

Section 2: Electric Cylinder Types
Direct-Acting Electric Cylinder
Direct-acting electric cylinders integrate AC servo motors, servo drives, high-precision ball screws, and modular design technologies, offering compact structure, low inertia, rapid response, low noise, and long service life. The servo motor is directly connected to the cylinder's transmission screw, reducing the inertia and clearance of intermediate links, enhancing control and precision. The servo motor is integrated with the cylinder, making installation easy and operation convenient. The main components of the electric cylinder are all made with internationally renowned brand products, ensuring stable performance, low failure rate, and high reliability.
2. Folding Electric Cylinder

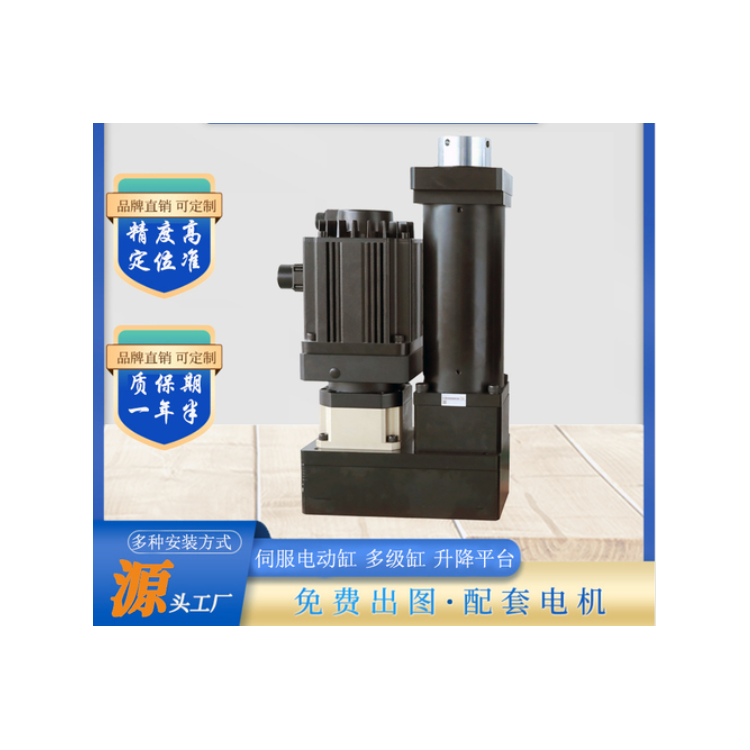

Collapsible electric cylinders are suitable for installations with limited space due to their short overall length. Moreover, the imported synchronous belts used in this solution offer high strength, minimal gaps, and long service life, ensuring excellent control and precision for the entire cylinder. The servo motor pairs with the cylinder smoothly, featuring easy installation, simple setup, and convenient operation.

Section 3: Electric Cylinder Models

IV. Overview of Electric Cylinder Features

1. Precise path location and controllability
2. Modular assembly applications, saving mechanical design space
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Various installation accessories and methods available for selection
7. Available with a variety of complete motor and controller sets.
8. A wide variety of products are available for selection.
9. Simple design, low maintenance costs, and easy to manage.

V. Electric Cylinder Usage Instructions and Precautions
1. The electric cylinder is a precision electromechanical integrated transmission device. Please carefully read the precautions and the instruction manuals for the motor, driver, and other components before use.
2. This product features an internal high-strength magnet, equipped with a magnetic induction switch and a stroke limit warning sign externally. Please fine-tune the required stroke within the warning sign area.
3. Our company uses a full-sealed device, filled with high-quality grease, which requires no regular maintenance from the customer; for some high-frequency and high-speed applications, we have customized designs with grease injection ports.
4. During the debugging of explosion-proof servo electric cylinders, it should be operated at low speed initially. Increase the speed only after all aspects are functioning normally to avoid damaging the electric cylinder.

Section 6: Application Range of Explosion-Proof Servo Electric Cylinders
Explosion-proof servo electric cylinders are suitable for multi-degree-of-freedom simulation, motion entertainment, precision machining, robots, mechanical lifting platforms, car presses, automotive manufacturing equipment, mechanical automation production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, and the food industry.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a 1.5-year (18 months) warranty from the date of factory shipment, under normal use conditions (excluding damage caused by misuse).
2. Damage caused by human factors or abnormal use is not covered under the warranty.
3. No unauthorized disassembly of the electric cylinder is permitted without the manufacturer's permission; self-disassembly or modification are not covered under warranty.
