RLA Servo Electric Cylinder

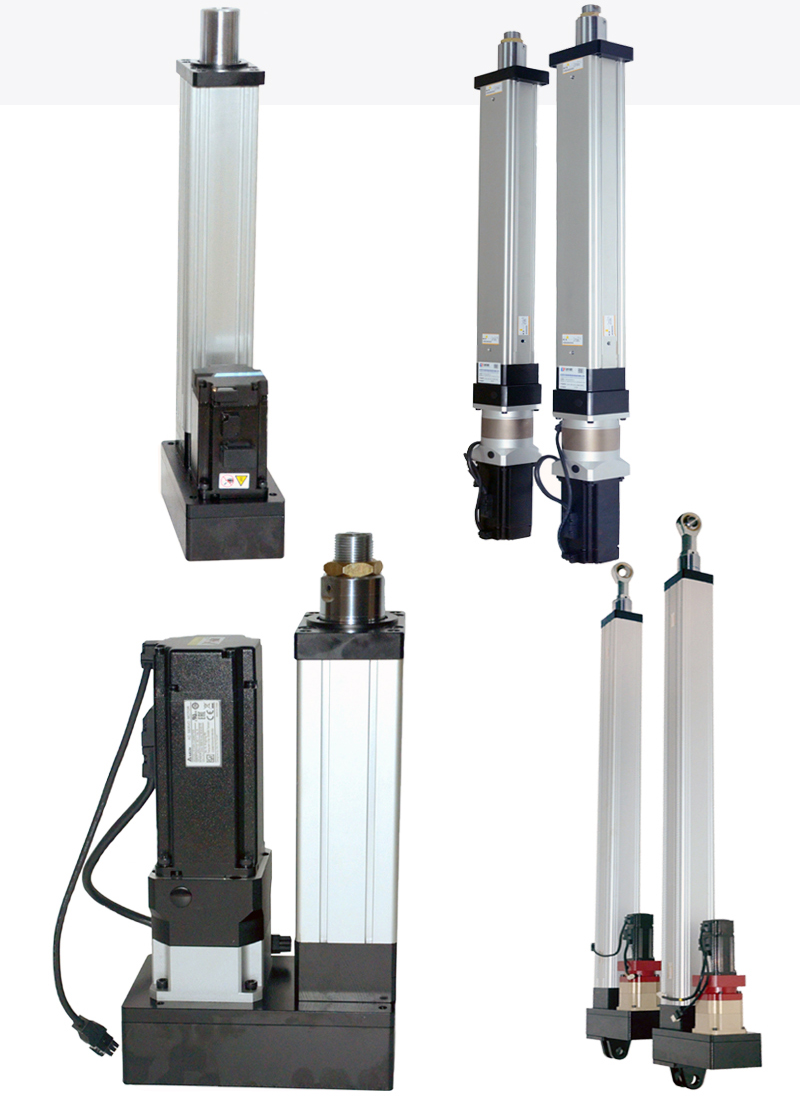

The stepping servo electric cylinder integrates technologies such as AC servo motor, servo driver, high-precision ball screw, and modular design, which make the stepping servo electric cylinder feature a compact structure, low inertia, fast response, low noise, and long lifespan. The servo motor is directly connected to the transmission screw of the electric cylinder, reducing the inertia and clearance of intermediate links, thereby enhancing controllability and control accuracy.

Product Details Introduction

Section 1: Servo Electric Cylinder Working Principle
An electric cylinder is a modular product with an integrated design that converts the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut assembly. By utilizing the closed-loop control characteristics of the servo motor, precise control over force, speed, and position can be easily achieved; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It is a revolutionary new product that aims to achieve high-precision linear motion control.

Section 2: Electric Cylinder Types
Direct-Connected Electric Cylinder
The direct-actuated electric cylinder integrates technologies such as AC servo motors, servo drives, high-precision ball screws, and modular design, featuring a compact structure, low inertia, fast response, low noise, and long service life. The servo motor is directly connected to the drive screw of the electric cylinder, reducing the inertia and clearance of intermediate links, thereby enhancing control and precision. The overall connection between the servo motor and the electric cylinder is easy to install and convenient to use. The main components of the electric cylinder are all made with internationally renowned brands, ensuring stable performance, low failure rate, and high reliability.
2. Folding Electric Cylinder
Collapsible electric cylinders are suitable for installations with limited space due to their short overall length. Additionally, the imported synchronous belts used in this solution feature high strength, minimal gaps, and long lifespan, resulting in excellent control and precision for the entire cylinder. The servo motor pairs with the cylinder seamlessly, offering easy installation, simple setup, and convenient operation.

Section 3: Electric Cylinder Models

4. Overview of Electric Cylinder Features

1. Precise path location and controllability
2. Modular assembly applications, saving mechanical design space
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Attachments and installation methods are available in a variety of options.
7. Available with a variety of complete motor and controller sets.
8. Diverse product range available for selection.
9. Simple design, low maintenance costs, and easy to handle.

V. Instruction and Precautions for Using Step Servo Electric Cylinders
Step motor servo cylinders are precision mechatronic transmission devices. Please carefully read the precautions and manuals for the motor, driver, and other components before use.
2. This product features an internal strong magnet, equipped with a magnetic induction switch and a stroke limit warning sign externally. Please fine-tune the required stroke within the warning sign area.
3. Our company uses a fully sealed device, filled with high-quality lubricating oil, which requires no regular maintenance from the customer; for individual high-frequency and high-speed models, we have designed a grease filling port for personalized lubrication.
4. When adjusting servo electric cylinders, start with slow, single-speed operation, and only increase speed after all aspects are functioning properly to prevent damage to the cylinder.

Section 6: Applicable Scope
Stepper servo cylinders are suitable for applications in multi-degree-of-freedom simulation, motion entertainment, precision machining, robotics, lifting platforms, automotive press machines, automotive manufacturing equipment, automated production lines, petrochemical industry, material handling, injection molding machines, mold control, valve control, precision machine tools, and the food industry.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a one-year warranty from the date of factory shipment, under normal usage conditions (excluding intentional damage).
2. Damage caused by human factors or other abnormal use is not covered under the warranty.
3. No unauthorized disassembly of the electric cylinder is permitted without the manufacturer's permission; any self-disassembly or modification is not covered under warranty.
