Product Details Description
1. Servo Electric Cylinder Working Principle
An electro-cylinder is a modular product with an integrated design that converts the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut. By utilizing the closed-loop control characteristics of the servo motor, precise control over force, speed, and position can be easily achieved; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It is a revolutionary new product for achieving high-precision linear motion control.
Section II: Electric Cylinder Types
Direct-Connected Electric Cylinder
Direct-acting electric cylinders integrate AC servo motors, servo drives, high-precision ball screws, and modular design technologies, featuring compact structure, low inertia, fast response, low noise, and long service life. The servo motor is directly connected to the transmission screw of the electric cylinder, reducing the inertia and clearance of intermediate links, enhancing control and precision. The servo motor is integrated with the electric cylinder for easy installation and convenient use. The main components of the electric cylinder are all made with internationally renowned brand products, ensuring stable performance, low failure rate, and high reliability.

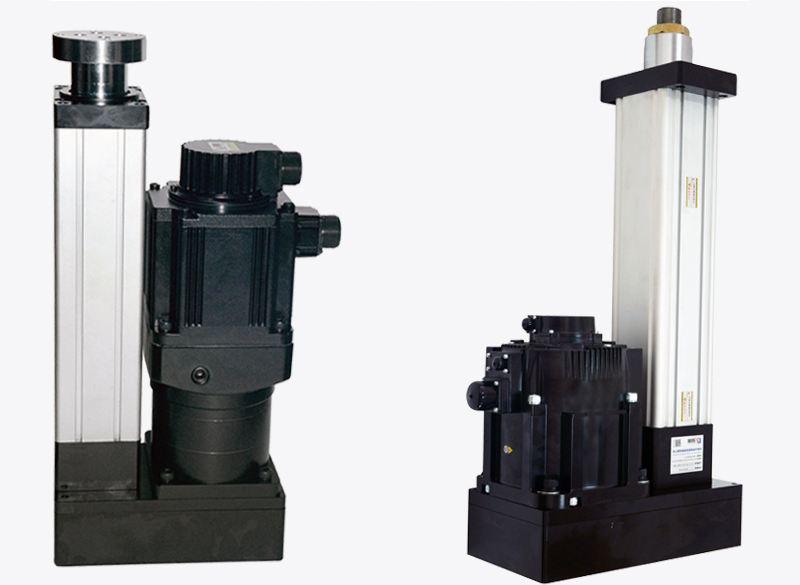

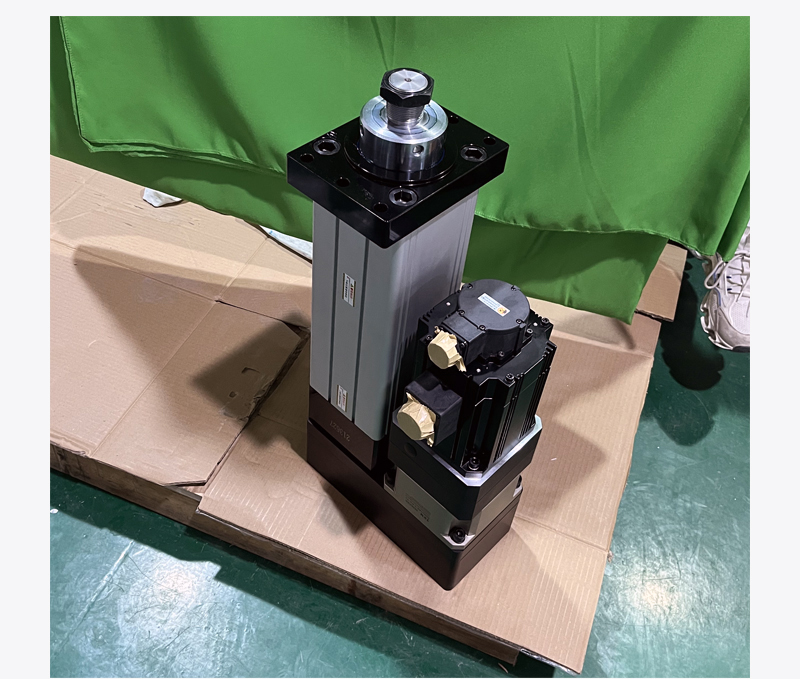

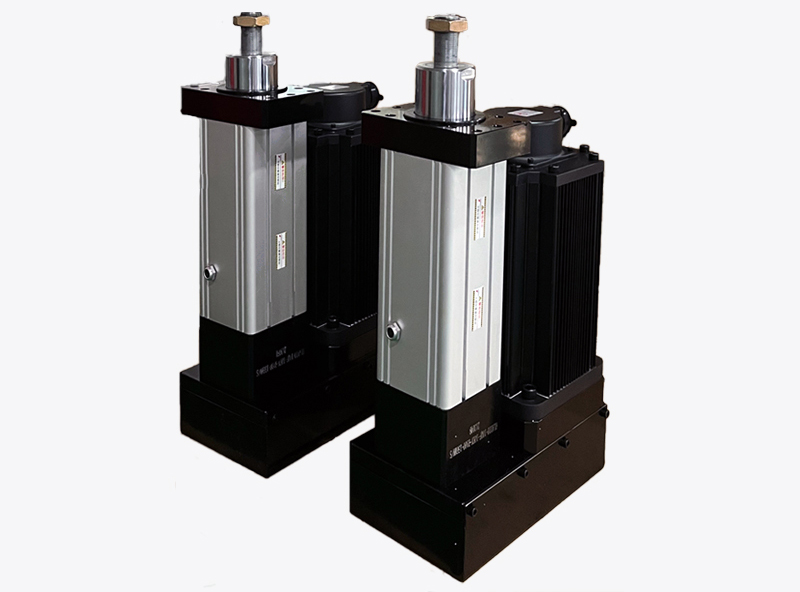

2. Folding Electric Cylinder
The folding electric cylinder is suitable for installations with limited space due to its short overall length. Additionally, the imported synchronous belt used in this solution boasts high strength, minimal gaps, and a long lifespan, ensuring the entire cylinder has excellent controllability and precision. The servo motor pairs with the cylinder for flexible operation, easy installation, simple setup, and convenient use.
Section 3: Electric Cylinder Models
Serial Number | Electric Cylinder Model | Features | Application Scope |
1 | Standard Electric Cylinder | Utilizing a TBIC7 grade screw, this design features an integrated structure, compactness, and control precision of 0.02MM. | General mechanical industry, automotive industry |
2 | Precision Type | Utilizing TBI grinding-grade ball screws and precision bearings, repeat positioning accuracy to 0.005MM. | Precision Mechanical Industry |
3 | Press Machine Series | Utilizing ball screw with grinding grade and precision bearings, all components are integrated processed, with a verticality of 0.02MM. | Precision Servo Press Machine |
4 | High-torque electric cylinder | Heavy-duty grinding grade screw | Large-scale Pressing Equipment |
5 | High-frequency, high/low temperature, dustproof, waterproof | Consult our engineers for special working condition requirements for this category. | Special machinery industry |
6 | Multi-section cylinder | Utilizing C7 grade screw rods or T-type screw rods, it allows for simultaneous up and down extension of single or multiple sections, as well as manual control. |
Section 4: Overview of Electric Cylinder Features
1. Precise path location and controllability
2. Modular assembly applications, saving mechanical design space
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Attachments and installation methods are available for various selection options.
7. Available with a variety of full sets of motors and controllers.
8. Product diversity available for selection.
9. Simple design, low maintenance costs, and easy to manage.
5. Electric Cylinder Usage Instructions and Precautions
1. Electric cylinders are precision mechatronic transmission equipment. Please carefully read the precautions and manuals for the motor, driver, and other components before use.
2. This product features an internal high-strength magnet, equipped with a magnetic induction switch and a stroke limit warning sign externally. Please fine-tune the required stroke within the warning sign.
3. Our company uses a fully-sealed unit, filled with high-quality lubricating oil, requiring no regular maintenance from the customer; for certain high-frequency and high-speed models, we have designed individualized lubricating oil injection ports.
4. When adjusting servo electric cylinders, start with slow, intermittent movements. Only increase speed after all aspects are functioning normally to prevent damage to the cylinder.
Section 6: Applicability Scope
Multi-degree-of-freedom simulation, motion entertainment, precision machining, robots, mechanical lifting platforms, automotive presses, automotive manufacturing equipment, mechanical automation production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, food industry, and more.
Section 7: After-Sales Instructions and Recommendations
1. This product comes with a one-year warranty from the date of factory shipment, under normal usage conditions (excluding deliberate damage).
2. Damage caused by human factors or other abnormal use is not covered under the warranty.
3. Unauthorized disassembly of the electric cylinder without the manufacturer's permission is not covered under warranty, including any self-disassembly or modification.
