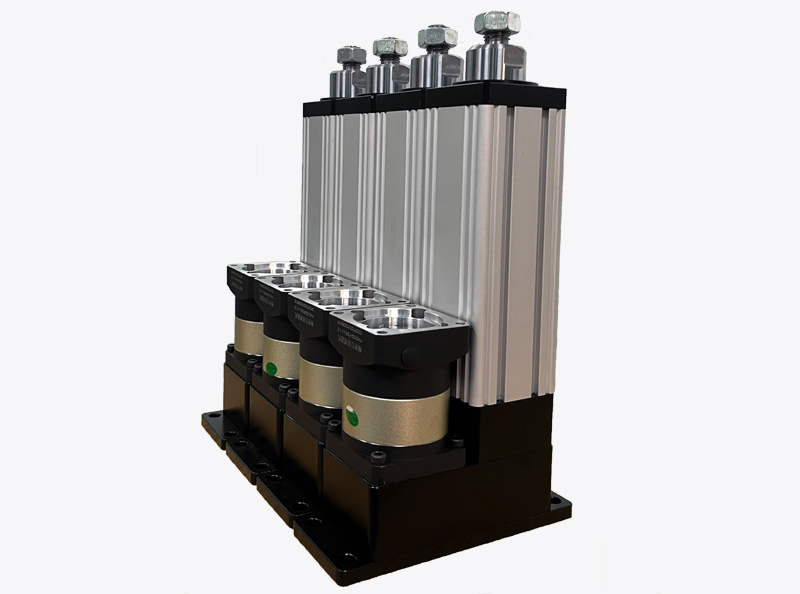

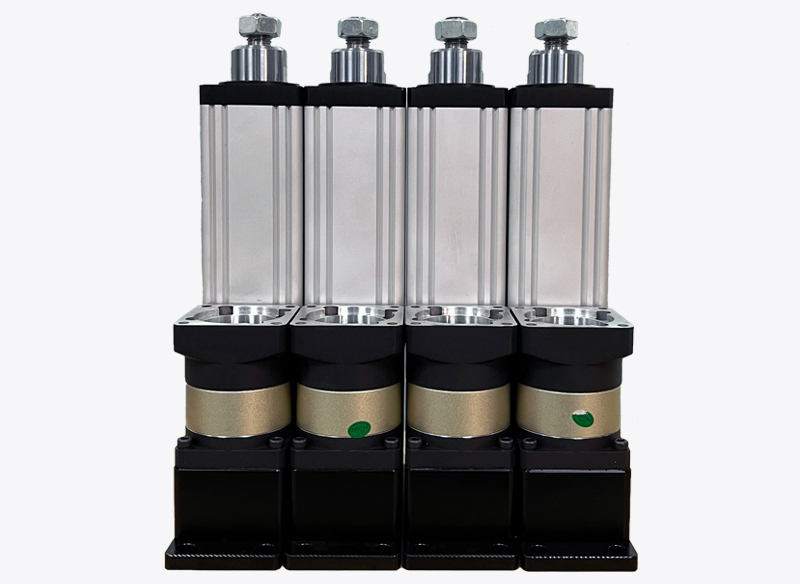

RLA50 Folding Servo Electric Cylinder

The collapsible servo electric cylinder is suitable for installations with limited space due to its short overall length. Additionally, the imported synchronous belt used in this solution boasts high strength, minimal gap, and long lifespan, contributing to the cylinder's high controlability and precision. The servo motor pairs with the cylinder for flexible operation, easy installation, simple setup, and convenient use.

1. Servo Electric Cylinder Working Principle
An electric cylinder is a modular product with an integrated design that converts the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw nut assembly. Leveraging the closed-loop control characteristics of the servo motor, precise control over thrust, speed, and position can be easily achieved; combined with mechanical motion technology and programmed control technology, it realizes programmed and numerical control. It is a revolutionary new product for achieving high-precision linear motion control.

Section II: Electric Cylinder Types
Direct-Acting Electric Cylinder
Direct-drive electric cylinders integrate AC servo motors, servo drives, high-precision ball screws, and modular design technologies, offering compact structure, low inertia, fast response, low noise, and long service life. The servo motor is directly connected to the transmission screw of the cylinder, reducing the inertia and clearance of intermediate links, enhancing control and precision. The overall connection of the servo motor to the cylinder ensures easy installation and convenient use. The main components of the cylinder are all sourced from internationally renowned brands, ensuring stable performance, low failure rate, and high reliability.
2. Return-to-zero electric cylinder
The return cylinder is suitable for smaller installation spaces due to its compact overall length. Additionally, the imported synchronous belt chosen for this solution boasts high strength, minimal gaps, and a long lifespan, ensuring the entire cylinder offers excellent control and precision. The servo motor pairs with the cylinder for flexible operation, easy installation, simple setup, and convenient use.

Section 3: Electric Cylinder Models

Section 4: Overview of Electric Cylinder Features

1. Precise path location and controllability
2. Modular assembly applications, saving design space for mechanical structures
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Diverse installation accessories and methods available for selection
7. Available with a variety of complete motor and controller sets.
8. Variety of products available for selection.
9. Simple design, low maintenance costs, and easy to handle.

5. Electric Cylinder Usage Instructions and Precautions
1. Electric cylinders are precision electromechanical integrated transmission equipment. Please carefully read the precautions and manuals for the motor, driver, and other components before use.
2. This product features an internal high-strength magnet, equipped with a magnetic induction switch and a stroke limit warning sign externally. Please fine-tune the required stroke within the warning sign.
3. Our company uses a fully-sealed unit, filled with high-quality grease, requiring no regular maintenance from the customer; for certain high-frequency and high-speed models, we have designed individual grease filling ports.
4. During the servo electric cylinder adjustment, start with low-speed, single movements. Only increase speed after all aspects are functioning normally to prevent damage to the electric cylinder.

Section 6: Applicability Range
Multi-degree-of-freedom simulation and emulation, multi-degree-of-freedom motion entertainment, precision machining, robots, mechanical lifting platforms, car presses, automotive manufacturing equipment, mechanical automation production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, food industry, and more.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a one-year warranty from the date of factory shipment, under normal usage conditions (excluding intentional damage).
2. Damage caused by human factors or other abnormal use is not covered under warranty.
3. Unauthorized disassembly of the electric cylinder is prohibited without the manufacturer's permission; any self-disassembly or modification is not covered under warranty.
