RLA80 Direct-Connected Electric Cylinder

Direct-actuated electric cylinders are suitable for installations with limited space due to their short overall length. Moreover, the imported synchronous belts used in this solution feature high strength, small gaps, and long lifespan, which enhance the control and precision of the entire direct-actuated electric cylinder. The servo motor works seamlessly with the electric cylinder, offering easy installation, simple setup, and convenient use.

Product Details Introduction

One. Servo Electric Cylinder Working Principle
An electric cylinder is a modular product with an integrated design, converting the rotational motion of a servo motor into linear motion through the mechanical movement of a screw and screw rod assembly. Leveraging the closed-loop control characteristics of the servo motor, it allows for precise control of thrust, speed, and position with ease; combined with mechanical motion technology and programmed control technology, it achieves programmed and numerical control. It represents a revolutionary new product for achieving high-precision linear motion control.

Section II: Electric Cylinder Types
Direct-Acting Electric Cylinder

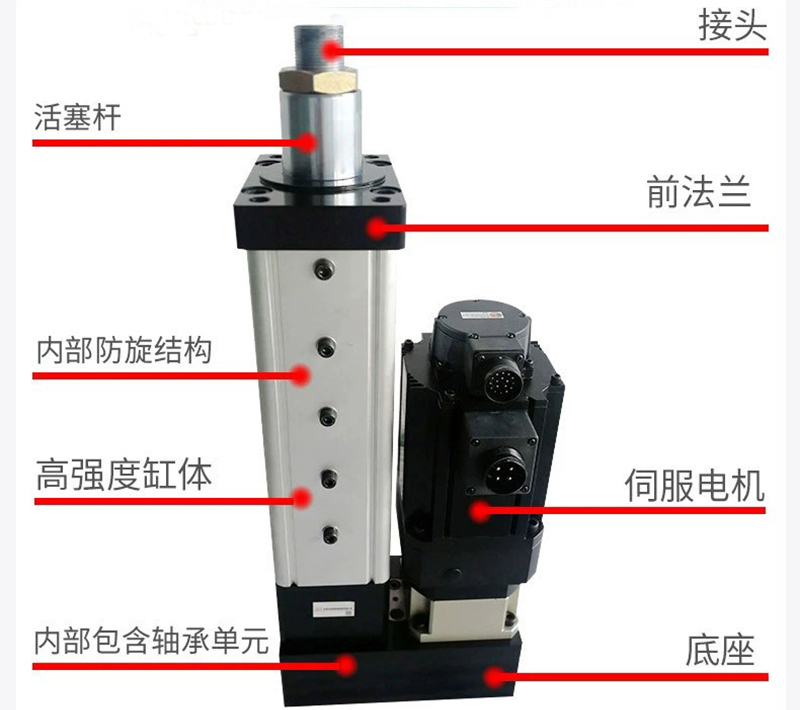

Direct-acting electric cylinders integrate AC servo motors, servo drives, high-precision ball screws, and modular design technologies, featuring compact structure, low inertia, fast response, low noise, and long lifespan. The servo motor is directly connected to the transmission screw of the electric cylinder, reducing the inertia and clearance of intermediate links, enhancing control and precision. The servo motor is integrated with the electric cylinder for easy installation and convenient use. The main components of the electric cylinder are all made of internationally renowned brand products, ensuring stable performance, low failure rate, and high reliability.
2. Folding Electric Cylinder
Collapsible electric cylinders are suitable for installations with limited space due to their short overall length. Additionally, the imported synchronous belts used in this solution offer high strength, minimal gaps, and a long service life, ensuring the entire cylinder has excellent controllability and precision. The servo motor pairs well with the cylinder, featuring easy installation, simple setup, and convenient operation.

Section 3: RuiLian Electric Cylinder Brand and Model

IV. Overview of Direct-Connected Electric Cylinder Features

1. Precise path positioning and controllability
2. Modular assembly applications, saving mechanical design space
3. Suitable for high-speed, high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Attachments and installation methods offer a variety of options.
7. Available with a variety of complete motor and controller sets.
8. Diverse product range available for selection.
9. Simple design, low maintenance costs, and convenient.

V. Direct-Connected Electric Cylinders - Instructions and Precautions
1. Electric cylinders are precision electromechanical integrated transmission equipment. Please carefully read the precautions and the manuals for the motor, driver, and other components before use.
2. This product features an internal high-strength magnet, equipped with a magnetic induction switch and a stroke limit warning sign externally. Please fine-tune the required stroke within the warning sign.
3. Our company uses a full-sealed unit, filled with high-quality lubricating oil, requiring no regular maintenance from the customer; for certain high-frequency and high-speed models, we have designed personalized lubricating oil injection ports.
4. When adjusting servo electric cylinders, start with slow, single-point operation, and only increase speed after all aspects are functioning normally to prevent damage to the cylinder.

Six. Direct-Acting Electric Cylinder Application Range
Multi-degree-of-freedom simulation and emulation, multi-degree-of-freedom motion entertainment, precision machining, robots, mechanical lifting platforms, automotive presses, automotive manufacturing equipment, mechanical automation production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, and food industry fields.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a 1.5-year (18-month) warranty from the date of factory shipment, under normal use conditions (excluding damage caused by misuse).
2. Damage caused by human factors or other abnormal use is not covered under the warranty.
3. No unauthorized disassembly of the electric cylinder is permitted without the manufacturer's permission; any self-disassembly or modification is not covered under warranty.
