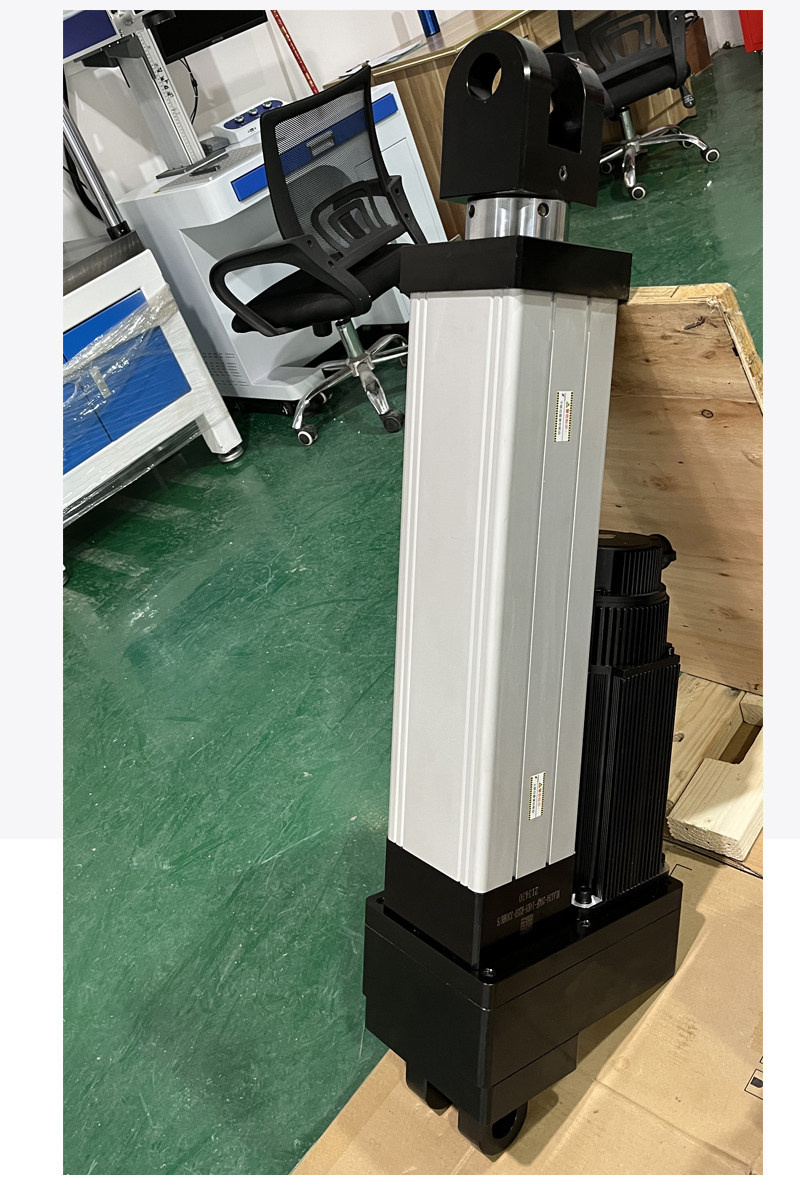

RLA94-1.2 meter stroke electric cylinder

The long stroke electric cylinder has an overall longer length, suitable for special installation locations. Additionally, the imported synchronous belt used in this solution features high strength, small gaps, and a long service life, which enhances the overall control and precision of the long stroke electric cylinder. The servo motor pairs with the cylinder for flexible operation, easy installation, simple setup, and convenient use.

Product Details Description

Section 1: Servo Electric Cylinder Working Principle
An electric cylinder is a modular product designed for a single-axis, converting the rotational motion of a servo motor into linear motion through the mechanical motion of a screw and nut assembly. Utilizing the closed-loop control characteristics of the servo motor, precise control over thrust, speed, and position is easily achievable; combined with mechanical motion technology and programmed control technology, it achieves programmable and numerical control. It represents a revolutionary new product for achieving high-precision linear motion control.

Section 2: Electric Cylinder Types
Direct-Connected Electric Cylinder
The direct-acting electric cylinder integrates AC servo motor, servo driver, high-precision ball screw, modular design, and other technologies, offering compact structure, low inertia, fast response, low noise, and long service life. The servo motor is directly connected to the cylinder's drive screw, reducing the inertia and clearance of intermediate links, enhancing control and accuracy. The servo motor is integrated with the cylinder for easy installation and convenient use. The main components of the electric cylinder are all from internationally renowned brands, ensuring stable performance, low failure rate, and high reliability.
2. Collapsible electric cylinder
The collapsible electric cylinder is suitable for installations with limited space due to its short overall length. Additionally, the imported synchronous belt used in this solution boasts high strength, minimal gap, and long lifespan, contributing to the cylinder's high control performance and precision. The servo motor pairs with the cylinder for flexible operation, featuring easy installation, simple setup, and convenient use.

Section 3: Electric Cylinder Models

4. Overview of Electric Cylinder Features

1. Precise path positioning and controllability
2. Modular assembly applications, saving design space for mechanical components
3. Suited for high-speed and high-frequency operation
4. Precise and easy to install
5. Multi-point positioning and multi-segment control
6. Various installation accessories and methods available for selection
7. Available with a variety of complete motor and controller sets.
8. A variety of products are available for selection.
9. Simple design, low maintenance costs, and easy to handle.

5. Electric Cylinder Usage Instructions and Precautions
1. Electric cylinders are precision electromechanical integrated transmission equipment. Please carefully read the precautions and manuals for the motor, driver, and other components before use.
2. This product is equipped with a built-in high-strength magnet, an external magnetic induction switch, and a travel limit warning sign. Please finely tune the required travel within the warning sign area.
3. Our company uses a fully-sealed unit, filled with high-quality lubricant, which requires no regular maintenance from customers; for certain high-frequency and high-speed models, we have designed personalized lubricant injection ports.
4. When tuning the servo electric cylinder, start with low-speed, single-pulse operation. Increase the speed only after all aspects are functioning normally to avoid damaging the cylinder.

Section 6: Application Range for Long Stroke Electric Cylinders
Multi-degree-of-freedom simulation and emulation, multi-degree-of-freedom motion entertainment, precision machining, robots, mechanical lifting platforms, automotive presses, automotive manufacturing equipment, mechanical automation production lines, petrochemicals, material handling, injection molding machines, mold control, valve control, precision machine tools, food industry, and more.

Section 7: After-Sales Instructions and Recommendations
1. This product comes with a 1.5-year warranty from the date of factory shipment, under normal usage conditions (excluding deliberate damage).
2. Damage caused by human factors or other abnormal use is not covered under warranty.
3. Unauthorized disassembly of the electric cylinder is prohibited without the manufacturer's permission. Any self-disassembly or modification is not covered under the warranty.
