Product NameIntegrated precast pump station

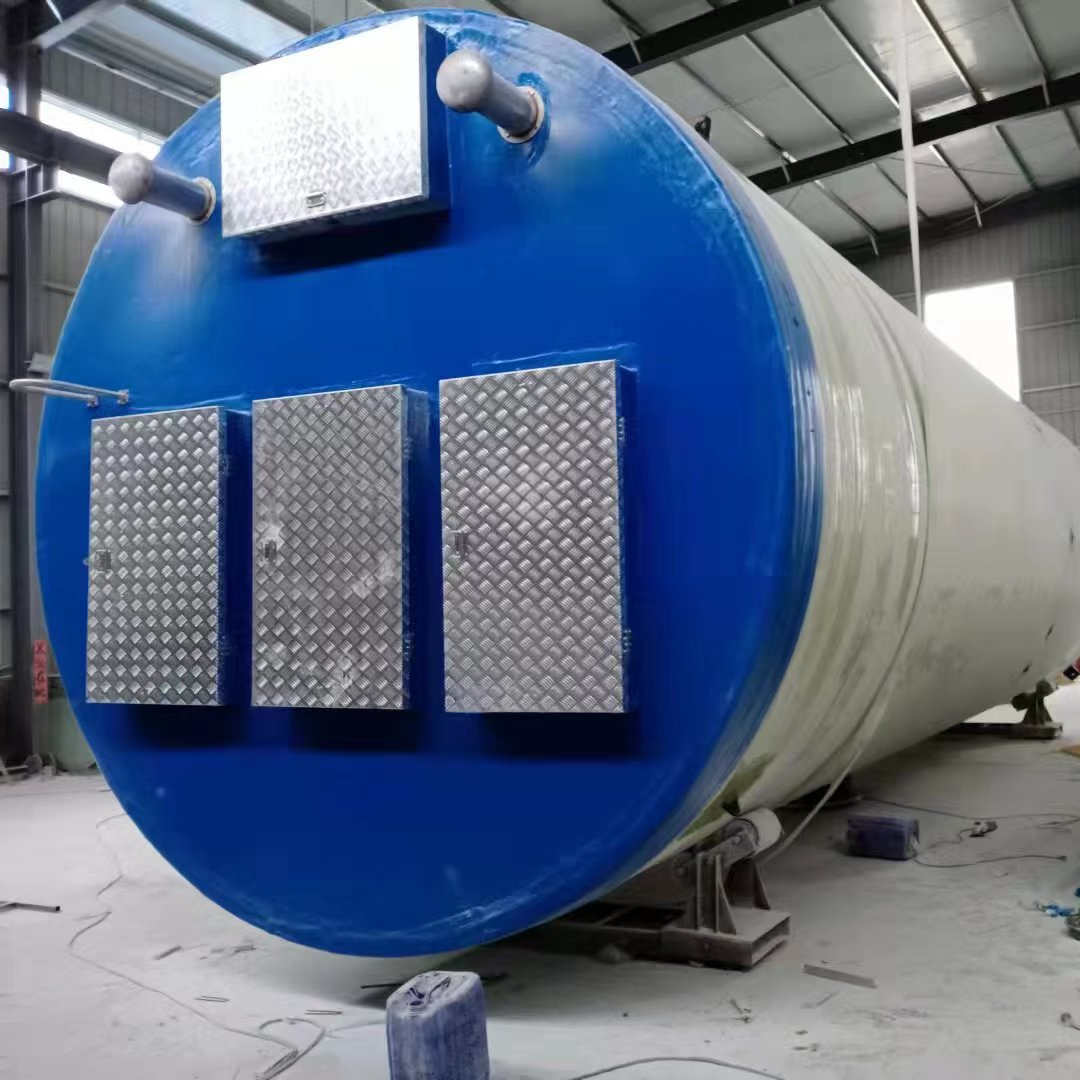

Product IntroductionThis product is a lifting equipment for wastewater, rainwater, drinking water, and waste water. It is centrally manufactured and assembled at the factory, integrating components such as the cylinder, submersible pump, coupling device, pipes, valves, liquid level sensors, and control system into a single unit. Once delivered to the site, only hoisting and pipeline connection are required, providing a modern solution to replace traditional concrete pump stations.

Core Advantages

1. Short engineering cycle, easy installation:All components are pre-fabricated in the factory, with only excavation of the foundation pit, pouring the base, and hoisting required on-site. Compared to the traditional concrete pump station's construction period often taking several months, the integrated pump station typically only needs 1-2 weeks for installation and debugging, significantly shortening the project timeline.
2. Small land occupation, space-saving:The installation is underground with only the maintenance cover visible on the ground, leaving no impact on the surrounding scenery. The cylinder structure is compact, effectively utilizing underground space, and is particularly suitable for urban roads, green belts, or residential areas with limited land.
3. Corrosion-resistant, long-lasting:The cylinder is made of computer-wound glass fiber reinforced plastic (GRP), offering excellent chemical resistance and compressive strength. In underground environments, it effectively resists erosion from soil acidity/alkalinity and wastewater, ensuring a long service life.
4. Intelligent Management, Unmanned Operation:Equipped with a dedicated intelligent control cabinet (PLC) that can automatically control the start and stop of the water pump based on liquid level. Optional remote monitoring module available, allowing managers to real-time monitor the pump station's operation via phone or computer, eliminating the need for continuous on-site staff.
5. Non-clogging, clean and environmentally friendly:The sump bottom is designed with fluid dynamics (a self-cleaning bottom designed through CFD simulation), enabling the pump station to automatically discharge silt during operation, reducing the frequency of manual silt removal and the generation of odors.

Application Scenarios

• Municipal Drainage:Rainwater collection and flood prevention in low-lying urban areas.
• Wastewater Treatment:Urban wastewater pipeline transportation, rural contiguous area wastewater improvement.
• Construction Accessories:Basement drainage for residential complexes, schools, hospitals, and commercial complexes.
• Transportation Facilities:Highway service area pump stations and underpass drainage stations under interchanges.

Customization InstructionsWe offer a "one-stop" customized service. Based on your flow rate (Q), head (H), and pipe levels for in and out water, we design the pump station's diameter, height, and pump selection (single-use with backup/simultaneous use with backup, etc.), and provide complete construction drawings and technical guidance.
