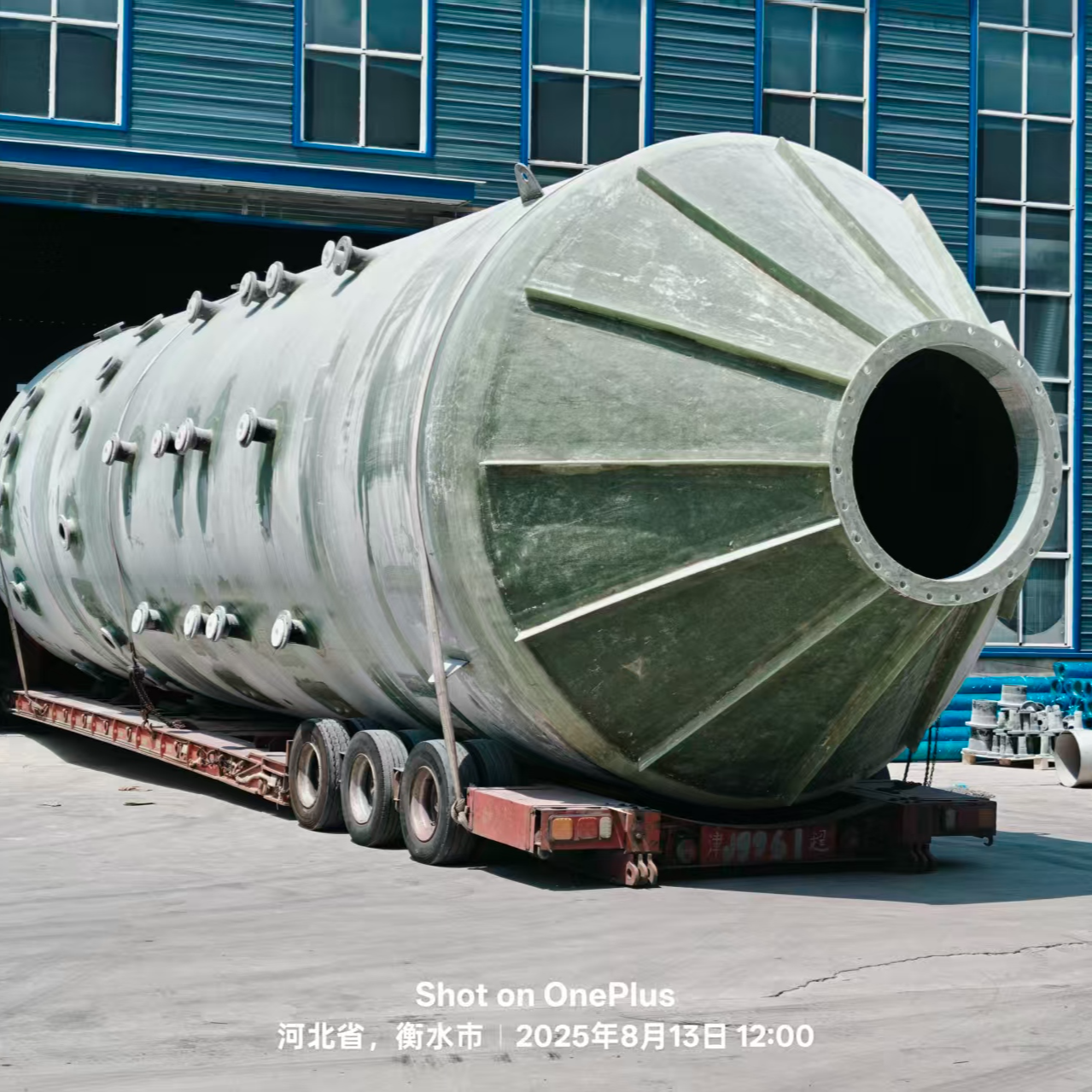

Product NameGlass Fiber Reinforced Plastic Industrial Wastegas Purification Tower / Spray Wash Tower / Environmental Protection Dust Removal Equipment
Product IntroductionThis unit is an efficient industrial waste gas treatment device, primarily used for washing and purifying various waste gases, dust, and odors generated during the production process. The main body of the equipment is made of high-quality fiberglass reinforced plastic (FRP) and utilizes the counter-current contact principle of gas and liquid, dissolving harmful components in the circulating liquid or intercepting them by the packing layer, thereby achieving the effect of purified discharge.
Core Advantages
- Excellent weather resistance and corrosion resistance:Made from high-performance resin and glass fiber composite, it boasts exceptional resistance to aging and corrosion. Compared to traditional metal equipment, it is better suited for various complex industrial exhaust environments, and is resistant to fading and cracking when used outdoors for extended periods.
- Multi-stage spray, thorough purification:The tower is scientifically configured with multi-layer spray systems and high surface area fillers (hollow spheres/Lacey rings). This increases the gas-liquid contact area and reaction time, effectively enhancing the efficiency of waste gas and wash water combination, ensuring emissions meet environmental protection standards.
- Structural integration, leak-proof design:Utilizing overall wrapping or mold forming technology, the tower is seamless, eliminating risks of waste gas leakage and liquid seepage. Equipped with a built-in circulating water tank, the structure is compact and occupies minimal space.
- High-efficiency Water Removal, Wind Turbine Protection:The tower top features a professional gas-water separation layer (dew removal layer), which effectively prevents water vapor from being extracted by the fan, thereby safeguarding the fan against damp damage and also reduces the loss of circulating fluid.
Operation PrincipleIndustrial waste gases are introduced into the bottom of the purification tower via a duct, where they pass through a packing layer. The waste gases are then thoroughly contacted with the circulating wash liquid sprayed from the top of the tower. After purification, the gas passes through a demisting layer to remove moisture and is exhausted into the atmosphere through the exhaust port; the wash liquid flows into the tower's bottom water tank and is reused after being circulated by a pump.
【Application Scenario】Broadly applicable to industries such as paint workshops, electronic factories, furniture factories, wastewater treatment plants, laboratories, and food processing.Offensive gases, industrial dust, and volatile emissionsGovernance.
Customized ServicesDirect factory supply, offering one-on-one solution design tailored to your on-site conditions (workshop area, ventilation volume). Support customization for vertical or horizontal structure, as well as selection services for matching fans and pumps.
