Oil Cooler (also known as an oil cooler), a core temperature control device for industrial lubrication/hydraulic systems, is most widely used in power plant steam turbines. It removes oil heat through heat exchange, maintaining stable oil temperature and protecting equipment.

Operating Principle

Mainstream is shell-and-tube type: cooling water flows through the tube side, while high-temperature lubricating oil flows through the shell side (baffles force the oil to flow in an S-shape, enhancing heat exchange); heat is transferred through the tube walls from the oil side to the water side, and the oil temperature is controlled by adjusting the flow rate of the cooling water (usually controlling the incoming bearing oil temperature to 35-45℃). The cooling medium is mainly circulating water, with some wind-cooled models for water-scarce situations; plate-type oil coolers rely on thin film flow between metal plates for rapid heat exchange, offering higher efficiency but at a higher cost.

Structure and Classification

Core Components: Shell, Heat Exchanger Tube Bundle (Brass/SS Tube), Upper and Lower Water Chambers, End Caps, Baffle Plates, Sealing System (O-Rings/Metal Gaskets to prevent oil and water leakage), including in/out oil/water connections, exhaust, drain, temperature and pressure measurement ports.

Installation Method

Horizontal: Low pressure drop, resistance to water hammer, suitable for high flow rates.

Vertical: Takes up less space, flexible installation.

Structure Type

Tubular (traditional and mainstream, cost-effective and reliable)

Plate-type (high heat exchange efficiency, compact, suitable for large-scale units)

Finned tube (enhanced heat transfer, suitable for high oil viscosity conditions).

Primary Application Scenarios

Power: Turbine / Generator bearing lubricant cooling, Coal mill / Air oil system;

Industrial: hydraulic stations, air compressors, ship main engines, metallurgical rolling mill lubrication/hydraulic oil cooling

Chemical Industry: Temperature control for circulating oil system.

Common Faults and Maintenance Points

Scaling/Blocking: Leads to reduced heat exchange efficiency and higher oil temperature; requires regular water-side backflushing, chemical cleaning, and oil-side filtration to remove impurities.

Leakage (Oil and Water Mixing): Oil pressure is usually higher than water pressure, aging seals / corroded tube plates are prone to leak water into oil. Regular inspection of seals and pressure testing for leaks is required.

Routine inspections: Monitor oil in/out temperatures, oil pressure, and coolant water levels; ensure exhaust is clear to prevent airlock.

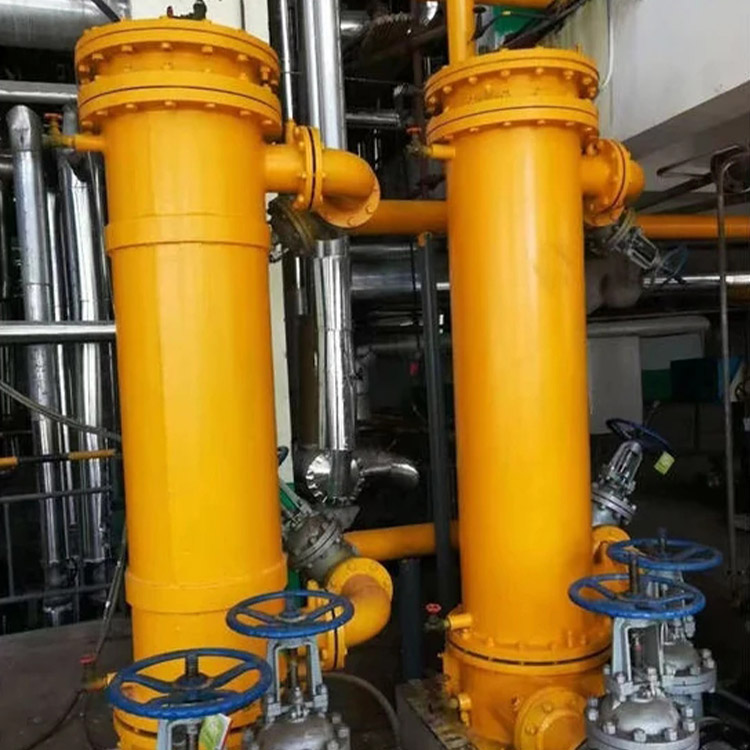

Backup cool oil cooler: Large units commonly use double-row parallel configuration for easy online switching and maintenance.

Key Selection Parameters

Cooling water volume, oil flow rate, inlet and outlet oil/ water temperatures

Work pressure, temperature, and oil viscosity.

Required heat exchange capacity (kW), dirt factor, pressure drop limit.

Installation space, cooling medium supply conditions.
