MP18X Series Portable VOC Rapid Detector

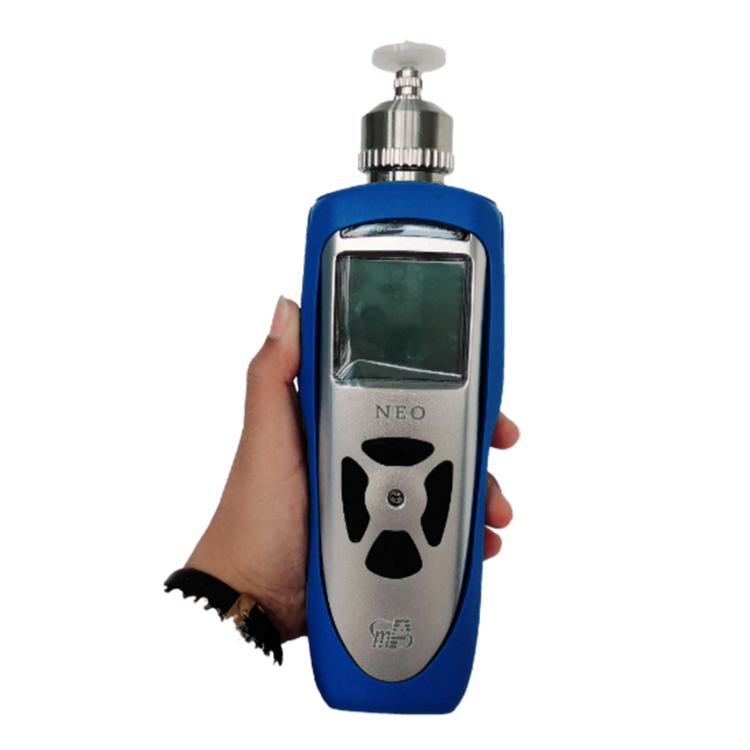

MP180 Series Portable VOC Rapid Detector (Range: 0.1-5000ppm, Resolution: 0.1ppm)
The MP180 Portable Detector carries on the original intention of applying PID technology to VOC rapid detection, providing customers with a portable, accurate, fast, and cost-effective detection solution. It incorporates multiple PID patents, including tunable PID, zero-point auto-tuning, and ultraviolet light cleaning. The MP180 features both graphical and digital display modes for real-time detection data, with intelligent graphing to show gas concentration dynamics, and supports both Chinese and English operating interfaces. The low-power detector can support over 24 hours of continuous testing with a single charge. Data is automatically stored and can be downloaded via a USB connection for direct data processing on a computer. The MP180's built-in wireless module seamlessly integrates with ConConnect M Wireless System
The MP180 is applied in various fields such as indoor air quality, occupational health and safety, environmental protection, emergency detection, soil pollutants, project acceptance inspections, and VOC residues in electronic products, representing the pinnacle of PID technology in detecting low-concentration VOCs.
Key Features and Performance Advantages
• Innovative PID sensor design effectively eliminates the effects of humidity and temperature, no humidity compensation required
Long-life detector, ozone and UV-resistant
• ppm, mg/m³ - Multiple concentration units displayed
• Equipped with an internal sampling pump, capable of reaching a sampling distance of up to 30 meters.
• Integrated gas library; customers can also customize detection gases as per requirements.
• User-friendly interface, simple to operate and maintain.
Specification and Instrumental Indicators
Sensor 10.6eV Photoionization Sensor
Sampling Method: Pump-Assisted Automatic Sampling
Protection Rating: IP66/IP67
Calibration - Two-point or Three-point Calibration
Battery Runtime: Rechargeable lithium-ion battery, supports continuous operation for over 24 hours
Micro USB Charger
Operating Temperature and Humidity: -20℃ to 50℃; 0 to 95% RH (no condensation)
Safety Certification: UL/cUL: Class I, Division 1, Group A, B, C, D T4; China Certification: China Ex ia IIC T4 Ga
Dimensions: 230mm x 80mm x 60mm
Weight: 680g
Pump Flow Rate: 250 cc/min
Data Storage: Continuous storage every minute for 12 months, with adjustable storage intervals (1~3600 seconds).
Display Language: Chinese/English + Symbol
Operation Mode: Detection and Programming
Four buttons
Warning Method: 90dB@30cm, LED Flashing
Electromagnetic Interference/RF Level: EMC Directive 89/336/EEC
LCD display with 128x128 dot matrix, featuring automatic backlight
Calibration Coefficients: Over 450 built-in, with the option for customers to customize 10.
The screen can directly display measured values, battery indicators, data recording status, light source operational status, temperature, wireless status (for wireless versions), etc.
Transmission Distance: Greater than 300m
Detector Metrics
Sensor 10.6eV PID
Detection Range: 0.1-5000 ppm
Detection Resolution: 0.1 ppm
Test Time: 2 seconds
Accuracy ≤3%
Additionally:
MP180: 0-5000 PPM, Resolution: 0.1 ppm
MP181: 0-5000 ppm, Resolution: 0.01 ppm
MP182: 0-20,000 ppm, Resolution: 0.01 ppm
MP184: 0-20,000 ppm, Resolution: 0.001 ppm/1 ppb
