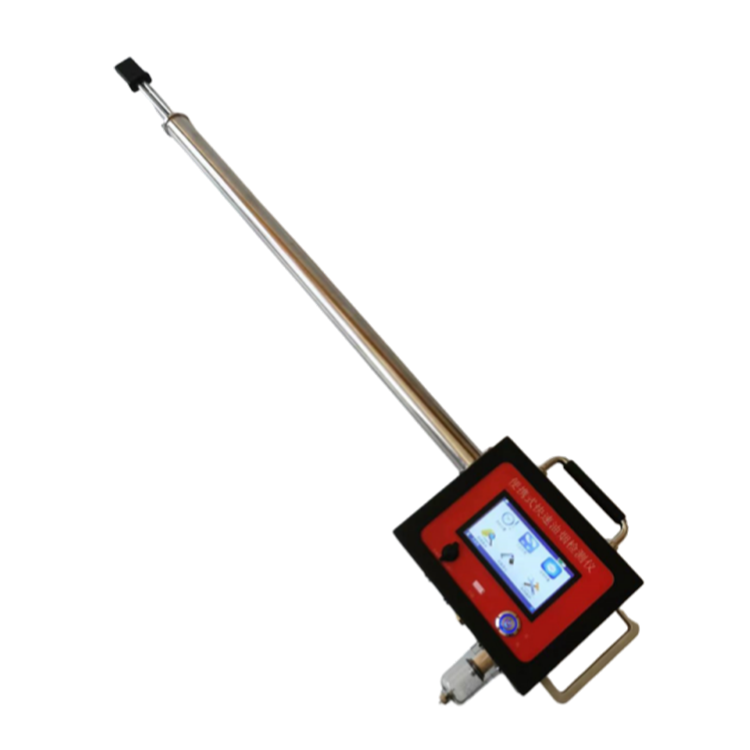

RC-YS600 Portable油烟（smoke and oil mist）Quick Detector (Combination of: smoke temperature, flow rate, smoke level, humidity)

One. RC-YS600 Portable Smoke and Oil Mist Fast Detector - Product Overview:

Portable four-in-one smoke and oil mist detector, based on the principle of light scattering and combined with dust source identification technology, can accurately detect and calculate the number of smoke particles per unit volume in the smoke and oil emissions, and calculate the smoke and oil mass concentration through scientific algorithms.

Portable smoke and oil mist rapid tester is suitable for measuring the concentration of smoke and oil mist in fixed pollution sources such as flues and chimneys, as well as parameters like temperature, dynamic pressure, and static pressure of the smoke, and environmental atmospheric and temperature parameters. It is used to evaluate the concentration of smoke and oil mist from organized emissions.

Section 2: RC-YS600 Portable Fume Rapid Detector, Compliance Standard:

JJG 680-2007 "Regulation for Calibration of Dust Samplers"

JJG 518-1998 "规程 for Pitot Tube Calibration"

GB16157-1996 "Determination of Particulate Matter and Sampling Methods for Gaseous Pollutants in Emissions from Fixed Pollutant Sources"

HJ/T48-1999 "Technical Conditions for Dust Samplers"

GB18483 "Standard for Fume Emission from Catering Industry"

Section 3: RC-YS600 Portable Fume Rapid Detector Key Features:

Automatic Dust Source Identification Technology

2. Real-time data output with excellent dust-proof performance.

3. The instrument has good resistance to moisture interference.

4. Easy on-site operation, real-time data updates.

5. Electronic flow meter automatically controls flow, with no fluctuation at a 4L/min flow rate.

6. Utilize high-performance, ultra-low-noise imported diaphragm pumps for enhanced stability, long service life, and ultra-low noise levels.

7. Measure flow rate and displacement with a Pitot tube.

8. Measures smoke temperature, static pressure, and dynamic pressure.

9. Equipped with a high-resolution capacitive touch screen, it boasts high sensitivity, an intuitive interface, and simple operation.

Equipped with a Bluetooth printer for quick data output.

11. Features USB drive export for easy data processing.

12. Integrated high-capacity lithium-ion battery.

13. High-capacity data storage, capable of storing 30,000 sets of data.

Four, RC-YS600 Portable Smoke and Oil Mist Rapid Detector, Main Parameters:

Key Parameters Parameter Range Resolution Accuracy

Fume Concentration (0～50) mg/m³ ±10.0% better than 0.01 mg/m³

Sample Flow Rate: 4 L/min, 0.01 L/min, better than ±2.5%

Flue Gas Flow Rate (0-30 m/s): ±5.0% Better than 0.1 m/s

Smoke dynamic pressure (0～3000) Pa, 1 Pa better than ±2.5%

Static Smoke Pressure (-30～+30) kPa ±0.01 kPa better than ±4.0%

Flue Gas Temperature (0～500)℃ ±1.0℃ Better than ±3.0℃

Flowmeter Front Pressure (-50～0) kPa ±0.01 kPa, Better than ±2.5%

Data Storage: 30,000 Sets

Main Unit Dimensions (200×92×122) cm

Overall Weight: Approximately 4.6 kg

Operating Power DC12V

Power Consumption < 10W

Operating Conditions: Temperature: -20℃ to 70℃; Humidity: 0-95% RH (non-condensing)
