Scope of Application:

Magnetic Filtration Rods (Magnetic Bars) are primarily used for removing ferromagnetic impurities from powders, granular materials, liquids, or pastes. They are widely applicable in industries such as ceramics, electricity, mining, plastics, tobacco, glass, chemicals, rubber, food, pigments, dyes, electronics, and metallurgy.

Working Principle:

Magnets are made of stainless steel pipe and high-B value neodymium-iron boron rare earth alloy, manufactured using a special production method. They can be assembled on a mounting bracket to form a magnetic filter. When ferrous materials pass through, they are attracted by the magnet and firmly adhered to the tube wall of the magnet, ensuring the integrity of the equipment and safety of the product.

Product Features:

Installable at any location on the production line where material contact is required, saving space, easy to install. The magnetic rod uses neodymium iron boron rare earth alloy as the magnetic source, offering strong magnetic force, simple structure, and long service life. Specifications and styles can be customized according to the customer's requirements and the production site conditions.

Special Dot:

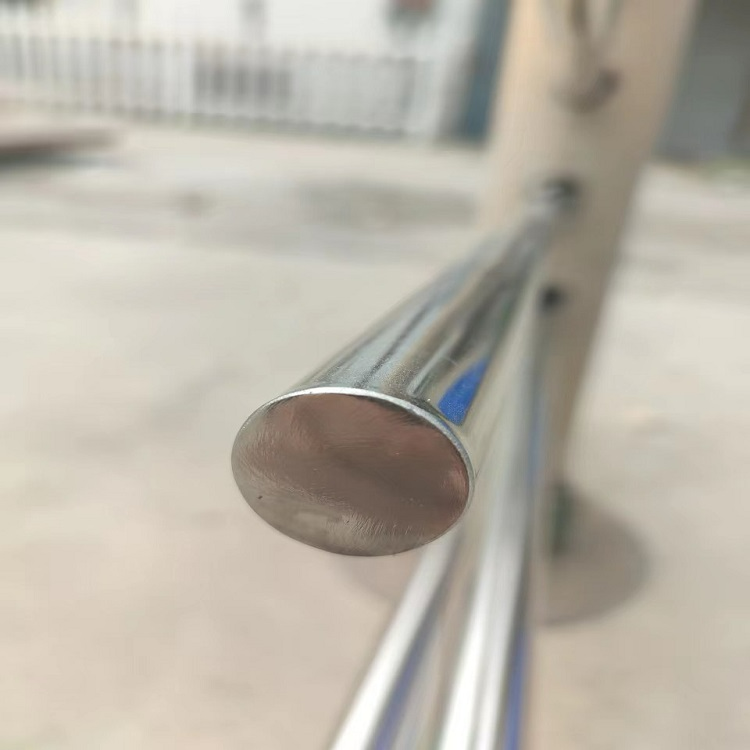

Standard cylindrical magnet rod diameter is 25mm (1 inch), length can be customized according to customer requirements, up to 2500mm. Square or other shapes and sizes of magnet rods are also available.

2. Utilize 304 or 316L seamless stainless steel tubes, available in polished finish to meet special requirements for food and other industries.

3. Standard operating temperature ≤ 80°C, with special requirements, the operating temperature can reach up to 350°C.

4. Diverse end designs - pointed ends, threaded holes, studs, etc.

5. Utilizing ferrite permanent magnets and various grades of rare earth permanent magnets, we can produce magnetic rods with different surface magnetic fields to meet various customer needs. The surface magnetic field of a D25mm rod can reach up to 13,000 gauss after lubrication.
