Application Range:

Magnetic Filter Rods (Magnet Rods) are primarily used for removing ferromagnetic impurities from powders, granular materials, liquids, or slurries. They are widely applicable in industries such as ceramics, electricity, mining, plastics, tobacco, glass, chemicals, rubber, food, pigments, dyes, electronics, and metallurgy.

Operating Principle:

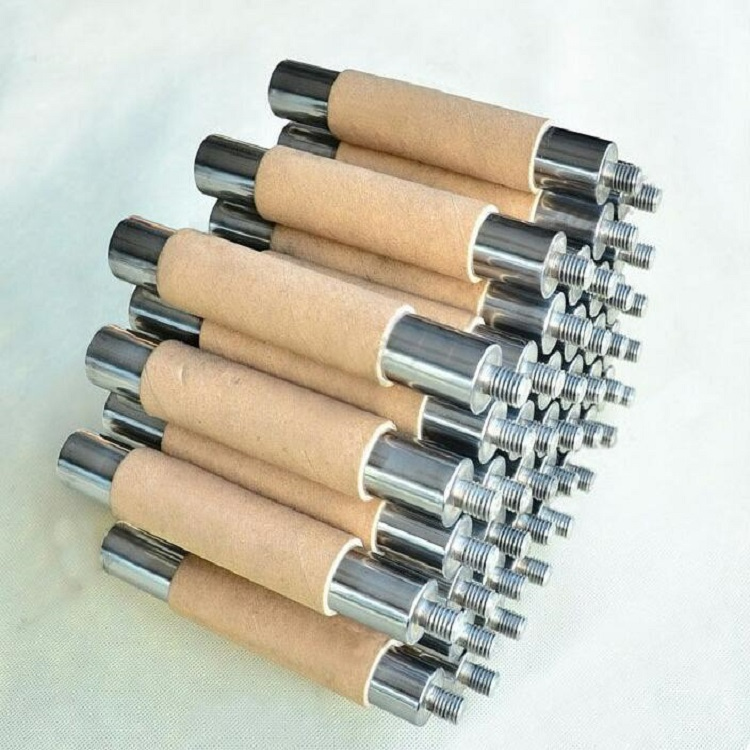

Magnetic rods are made from stainless steel tubes and high-B value rare earth neodymium iron boron alloys, crafted using a special manufacturing process. They can be assembled on a fixed bracket to form a magnetic filter. When ferrous materials pass through, they are attracted by the magnetic rod, securely adhering to the tube wall of the rod, ensuring the integrity of the equipment and safety of the product.

Product Features:

Can be installed at any location on the production line where materials come into contact, saving space and easy to install. The magnetic rod uses neodymium iron boron rare earth alloy as the magnetic source, providing strong magnetic force. The structure is simple and has a long service life. The specifications and styles can be customized according to the customer's requirements and the production site conditions.

Special Dot:

Standard cylindrical magnet rod diameter is 25mm (1 inch), length can be customized according to customer requirements, up to 2500mm. Square or other shapes and sizes of magnet rods are also available.

2. Utilize 304 or 316L seamless stainless steel tubes, available in polished finish to meet the specific requirements of food and other industries.

3. Standard operating temperature ≤ 80°C; under special requirements, the operating temperature can reach up to 350°C.

4. Diverse end designs - pointed tips, threaded holes, studs, etc.

5. Utilizing ferrite permanent magnets and rare earth magnets of various brands, we can produce magnetic rods with different surface magnets to meet diverse customer needs. The surface magnet of a D25mm rod can reach up to 13,000 oil additions.
