Application Range:
Magnetic Filtration Rods (Magnet Rods) are primarily used for removing ferromagnetic impurities from powders, granular materials, liquids, or pastes. They are widely applicable in industries such as ceramics, electricity, mining, plastics, tobacco, glass, chemicals, rubber, food, pigments, dyes, electronics, and metallurgy.
Operating Principle:
Magnetic rods are made from stainless steel tubes and high B-value neodymium iron boron rare earth alloy, and are produced using a special manufacturing process. They can be assembled on a mounting bracket to form a magnetic filter. As ferrous materials pass through, they are attracted by the magnetic rod and securely adhered to the tube walls of the rod, ensuring the integrity of the equipment and safety of the product.
Product Features:
Can be installed at any location on the production line where material contact is required, saving space and easy to install. The magnetic rod uses rare earth alloy neodymium iron boron as the magnetic source, offering strong magnetic force, simple structure, and long service life. Specifications and styles can be customized according to the customer's requirements and the production site conditions.
Special Dot:
Standard cylindrical magnet rod diameter is 25mm (1 inch), length can be customized according to customer requirements, up to 2500mm. Square or other different shapes and sizes of magnet rods are also available.
2. Utilize 304 or 316L seamless stainless steel tubes, which can be polished to meet special requirements in food and other industries.
3. Standard operating temperature ≤ 80°C, with special requirements, the operating temperature can reach up to 350°C.
4. Diverse end designs -- pointed tips, threaded holes, studs, etc.

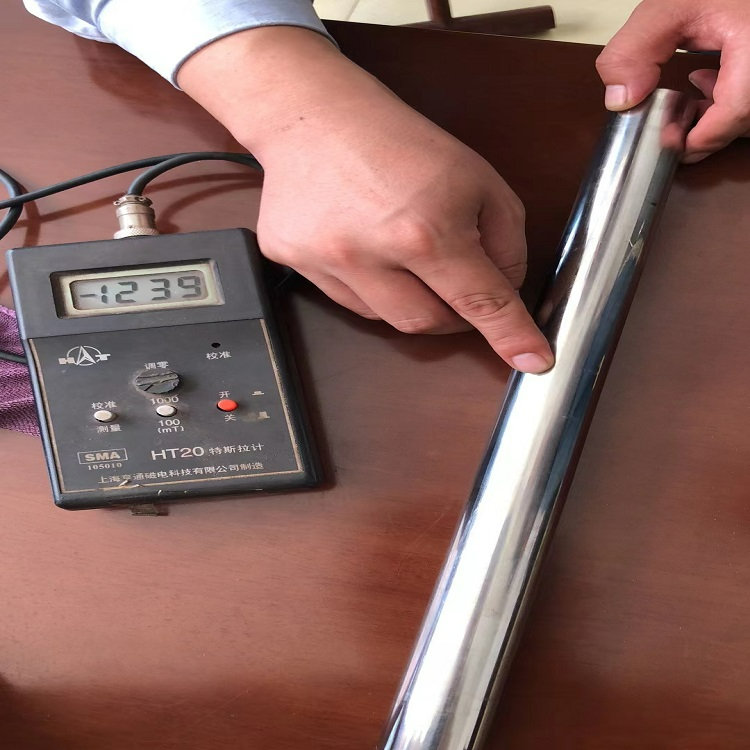

5. Utilizing ferrite permanent magnets and various types of rare earth permanent magnets, we can produce magnetic rods with different surface magnetic fields to meet diverse customer requirements. The surface magnetic field of a D25mm rod can reach up to 13,000 supplement oiling.
