Product Overview

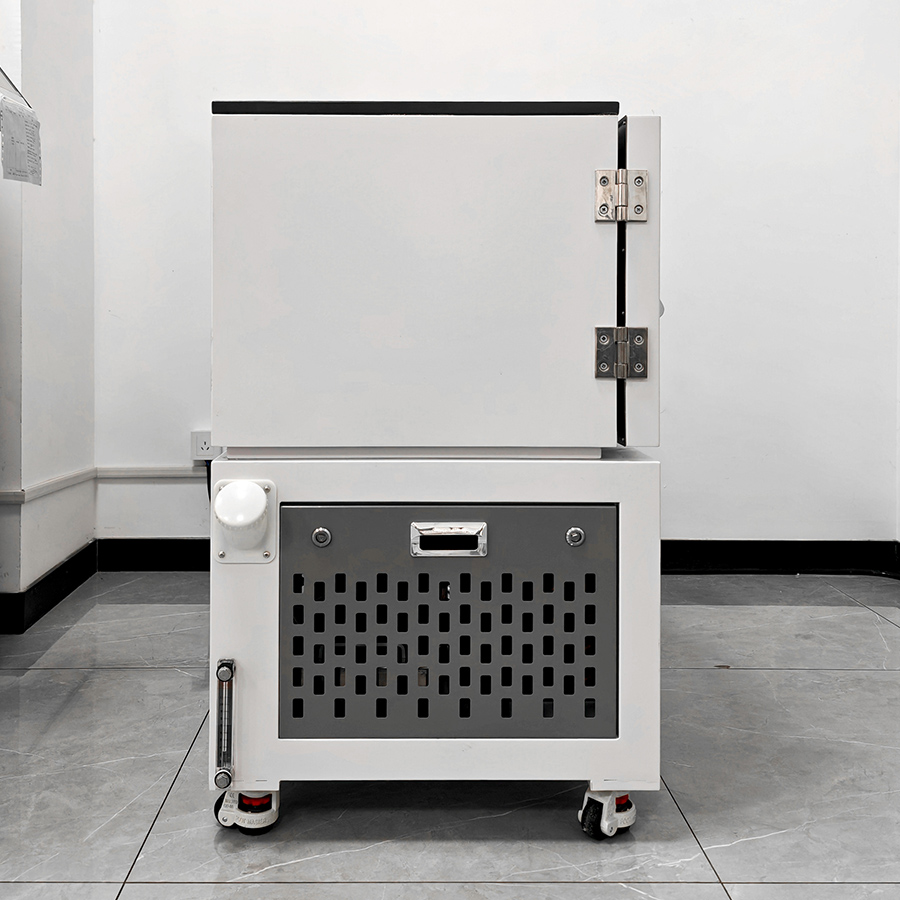

The DY-WSX04M Temperature Calibration Box is specifically designed by our company for calibrating low-temperature thermometers. Its ultra-compact design is particularly suitable for laboratory, university, and research institutes' small sample testing sites, and is applicable to various high-precision laboratory research and development. It features a large observation window and has high stability and fluctuation indicators, making it a dedicated calibration equipment for testing digital thermometers and other types of temperature sensors. It is suitable for use by various metrological departments, meteorological departments, electronic, power production departments, as well as colleges and universities, research institutions, and environments with high requirements for volume and space.
Product Features
1) The German-American Electromechanical temperature calibration box is compact in design, with a small volume and minimal space requirement.
2) The internal cavity of this temperature calibration box is made of 304 stainless steel plate, with an exterior powder coating to ensure both aesthetic appeal and corrosion resistance.
3) Utilizing double-layer high-temperature and anti-aging silicone sealing strips to effectively ensure the experimental area is protected from external environmental influences; equipped with a large observation window and a controllable lighting system for observation.
4) Wide temperature range with excellent uniformity, meets the requirements for refrigerator thermometer testing.
5) The control sensors utilize imported high-precision temperature sensors, offering high stability and reliability with self-tuning PID parameters, ensuring rapid and stable system balance.
6) Equipped with a human-machine interface and a touch screen control panel, the control interface is user-friendly. The temperature control logic uses a programmable controller.
7) Equipped with swivel casters for easy mobility and convenient testing
8) Equipped with a 7-inch touch screen display. Operation is simple and convenient.
9) Temperature fluctuation curve, system-configured temperature control curve, real-time monitoring of temperature changes.
10) Program Control Function (Optional)The equipment features 10 programmable settings interfaces, one-button operation for convenience and speed, catering to various detection point requirements and enhancing user detection efficiency.
11) Built-in multi-point independent temperature correction function, multi-point (40 points) temperature fitting correction; Ensures the corrected reading error is less than 0.1℃ (1.0%RH), wide correction point range covers the full range of application for correction, with minimal deviation.
