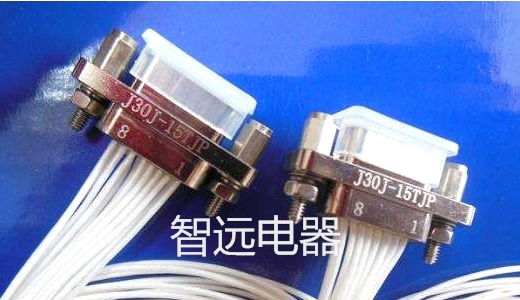

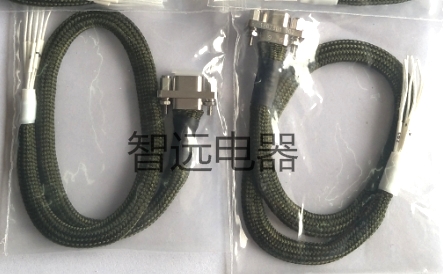

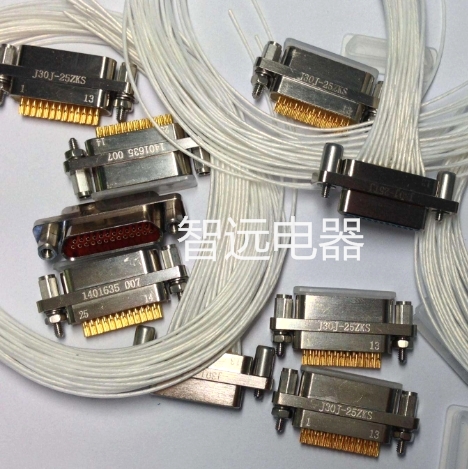

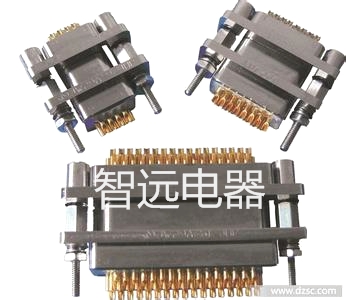

J30J-25ZKWPRectangular connector, Compliant with GJB2446 "General Specification for Ultra-Small Rectangular Electrical Connectors" (equivalent to MIL-C-83513 of the U.S. military standard), interchangeable with U.S. MDM series products and domestic counterparts; adds aluminum alloy shells and various aluminum alloy tail clamps to the J30 series; utilizes stranded pin (commonly known as a helical pin), with each contact piece having up to seven contact points, enhancing product contact reliability; employs a 1.27mm grid, with high contact piece density, small volume, and light weight; available in ten types including 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 cores for selection; suitable for wire cores with cross-sectional areas of 0.07 to 0.15mm², with wiring at the end customizable to customer requirements; the locking components of this product are provided assembled with the product; please specify in the contract if locking components are not needed; this series meets the requirements of GJB2446 "General Specification for Ultra-Small Rectangular Electrical Connectors"; the execution standards for this series are as follows: Q/ZHDZ GC-18 "Detailed Specification for J30J Series Micro-Rectangular Electrical Connectors".

Key Technical Features

Ambient Temperature: -55 to +125℃

Relative Humidity: 95% at +40℃

Vibration: 10-2000 Hz, 196 m/s²

Impulse: 735 m/s²

Acceleration: 735 m/s²

Rated Current: 3A

Contact Resistance: ≤10 MΩ

Insulation Resistance: ≥5000 MΩ
