Product Description

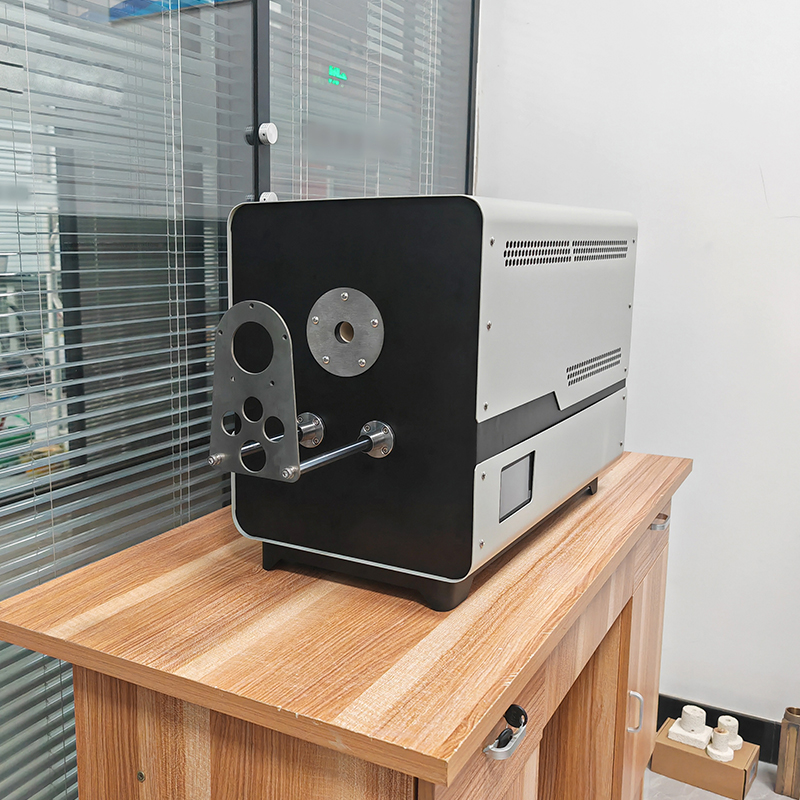

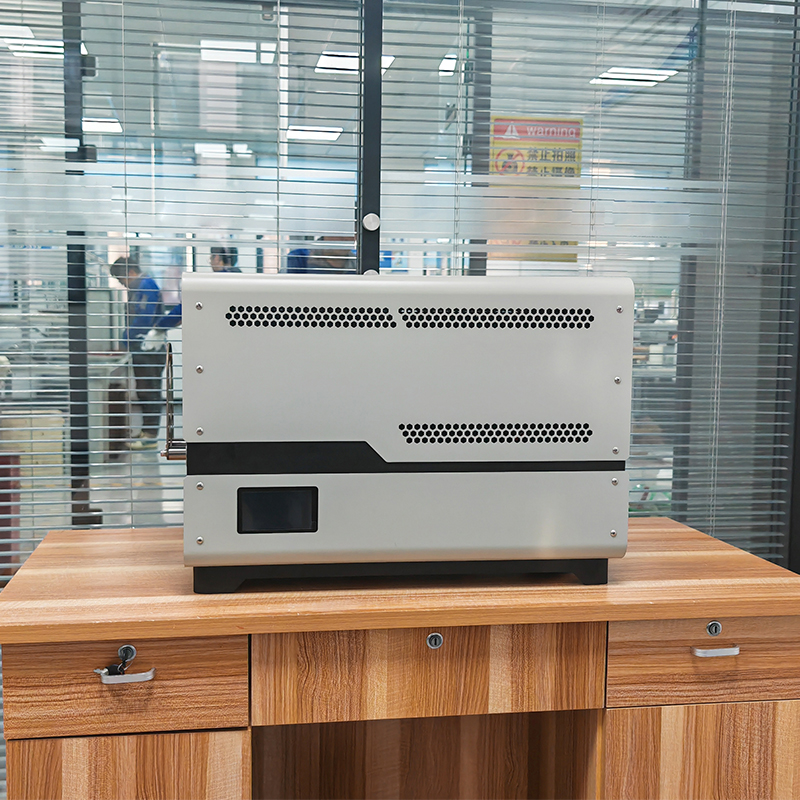

The thermocouple calibration furnace is an essential component of the medium and high-temperature traceability system. The DY-JDQ series multi-zone intelligent thermocouple calibration furnace has achieved a qualitative leap in the axial temperature field of its effective working area, and it is not prone to offset after long-term use. The multi-zone control method ensures excellent uniformity and temperature fluctuation in the wide temperature field of the thermocouple calibration furnace, enhancing overall technical performance and reducing uncertainty factors in the traditional thermocouple calibration and calibration process currently available on the market. The DY-JDQ series meets the requirements for high-precision temperature traceability better in terms of structure.

The DY-JDQ series multi-temperature intelligent thermocouple calibration furnace utilizes multi-zone control and embedded temperature sensing technology, offering excellent temperature field uniformity and minimal temperature fluctuation, significantly reducing uncertainty in the temperature traceability process. It features a humanized design with fixed and telescopic bracket for the inspected unit.

Product Features

1. Calibration Furnace for Calibrating Industrial廉Metal Thermocouples (K-Type, E-Type, J-Type, N-Type) within the Temperature Range of 300℃ to 1200℃.

2. Provides恒温source functionality for other research and testing work, suitable for calibration in laboratories.

3. Utilizing heating wire, it features built-in reference end compensation and multi-temperature point correction for the temperature sensor, providing an excellent uniform temperature field.

4. The equipment boasts fast heating speed, excellent temperature field uniformity, rapid temperature rise, good temperature stability, and superior constant-temperature performance.

5. The multi-temperature zone thermocouple calibration furnace features an integrated design of controller and furnace cavity, with an intelligent PID regulator. It can be equipped with instrument function settings to achieve automated control of the heating process, and can be used with the system or operate as a standalone temperature controller.

6. Equipped with automatic temperature control and a touch screen operation, featuring real-time temperature and curve display for easy operation.
