Product Overview

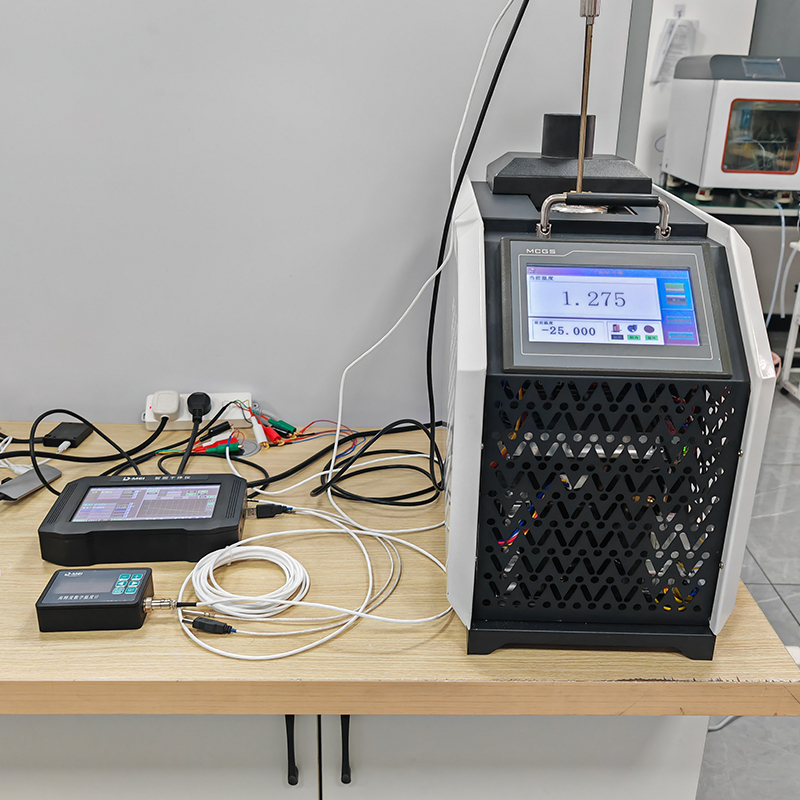

The ultra-portable intelligent constant-temperature bath is a high-precision intelligent temperature measuring device featuring good temperature stability, uniform temperature field, high temperature control accuracy, lightweight, and easy portability. This unit employs an intelligent touch screen for temperature control, ensuring automatic regulation. It boasts a compact structure, easy operation, and a clear, intuitive reading of the bath temperature.
Application Range
DY ultra-portable intelligent thermostatic bath for metrological departments, suitable for first and second-grade standard calibrationSilverThermometers, Beckman thermometers. Industrial platinum resistance thermometers, used for calibration of standard copper-constantan thermocouples, and also suitable for high-precision thermal and cold sources for production and scientific research. Widely used in research departments such as petrochemical, chemical, electronic instruments, physics, chemistry, meteorology, energy, environmental protection, biotechnology, medical health, life sciences, light industry and food, physical property testing, and chemical analysis, as well as in colleges and universities, and by manufacturers of quality inspection and production of thermometers and temperature controllers. They provide a controlled thermal and cold source with uniform and constant temperature for the user's work. They are used for the detection of physical parameters and can also serve as a constant-temperature source for other testing and research activities.
Product Advantages
Temperature Control Accuracy: ±0.005~±0.01, Temperature Drift Coefficient ≤±0.0008°C/°C; Low Temperature Drift Design, Minimal Environmental Temperature Impact
2. Four-wire Pt100 collection circuit design, providing a high-precision constant temperature source with excellent temperature stability and uniformity.
3.7-inch LCD intelligent touch screen operation, one-touch value setting, one-touch start/stop, intuitive and simple
4. Temperature fluctuation curve; pre-configured temperature control curve within the system for real-time monitoring of temperature changes.
5. Full automatic control of heating, cooling, and stirring processes; quick icon view for heating, cooling, and stirring status
Equipped with an RS232 communication interface for easy configuration of an automatic verification system.
7. The body shell is made with anti-aging electrostatic spraying technology and features a 304 stainless steel structure.
8. High-precision temperature acquisition (TI 32-bit AD), multi-group PID automatic matching
9. Built-in multi-point independent temperature correction function, multi-point (40 points) temperature fitting correction;
10. RS485 Serial Communication (ModBus Protocol)
11. Dynamic Power Compensation for Voltage Fluctuations in Power Supply
12. Optional Program Control Function, featuring 10 different program setting interfaces for the device. One-touch operation for convenience and speed, catering to various detection point requirements of users, enhancing detection efficiency.
