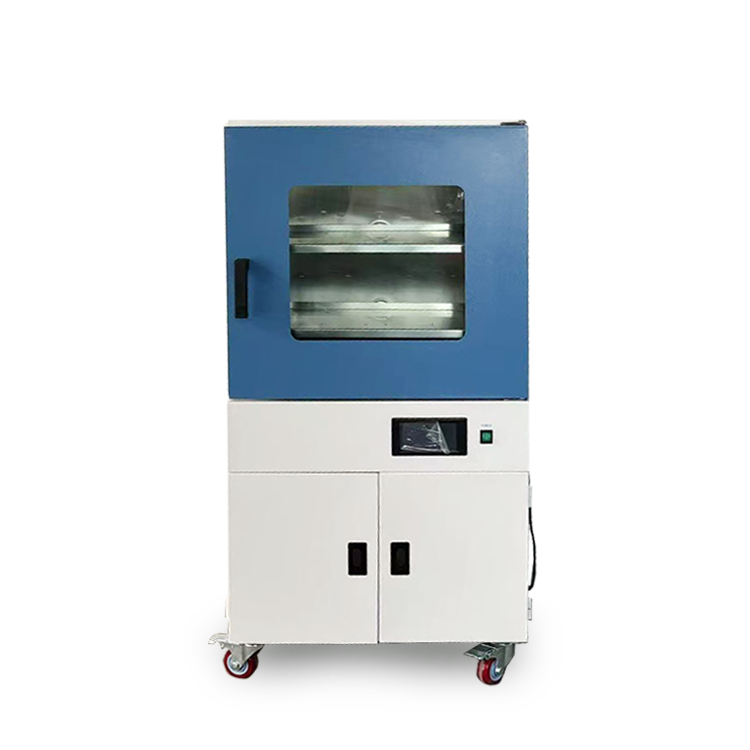

High-Capacity Vacuum Drying Oven DZF-1000B with Color Touch Screen and PLC Integrated ControlIntegrated with PLC (Programmable Logic Controller) for control, it offers significant advantages over traditional control methods.
The core advantage of PLC integrated control lies in its exceptional reliability and intelligence. As an industrial-grade controller, PLC is renowned for its robust anti-interference capability and stability, ensuring precise execution of commands during long and complex drying processes, completely eliminating the risk of experiment failure due to control failure. It integrates the control of critical parameters such as vacuum level, temperature, and time into a highly coordinated system, and can automatically complete the entire process of "vacuuming - heating - pressure holding - cooling - venting" according to pre-set programs, achieving a leap from "manual operation" to "intelligent automation."
This control system further delivers unparalleled accuracy and traceability. The PLC maintains the stability of temperature and vacuum inside the chamber with exceptional precision, providing a uniform and highly reproducible drying environment for large-volume samples. Additionally, all operating parameters, process steps, and real-time data are automatically recorded and logged, facilitating users in tracing and analyzing the experimental conditions of each batch. It also effortlessly meets the stringent GMP/GLP regulatory requirements in pharmaceutical production and quality testing, serving as a core guarantee for standardized and standardized production.
High-Capacity Vacuum Drying Oven DZF-1000B with Color Touch Screen and PLC Integrated ControlKey Features:

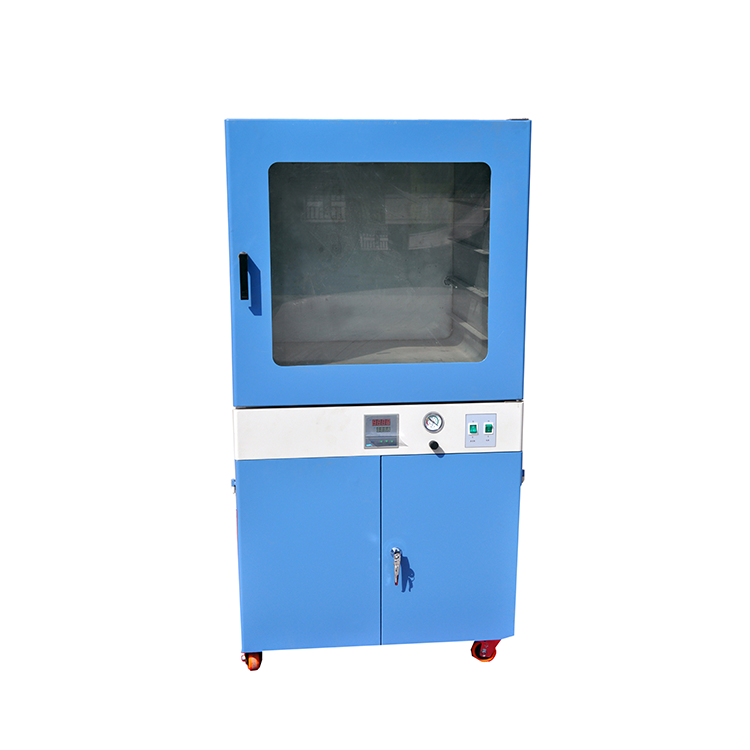

● The vacuum drying oven features a streamlined curved design, with the outer shell made of cold-rolled steel plate and electrostatically powder-coated surface.
The inner chamber of the vacuum drying oven is made of stainless steel, featuring rounded corners with corrosion and acid resistance, and is easy to clean.
●The rectangular studio maximizes the usable volume.
● Tempered bulletproof double glass doors provide a clear view of the objects within the observation room.
● The temperature control system utilizes a microcomputer P.I.D. intelligent controller with a liquid crystal display. After setting the temperature, the gauge automatically controls the required heating power and vacuum pressure, displaying the heating status. The temperature control is precise and stable, with over-temperature sound and light alarms and automatic power cutoff.
●The lid closure can be adjusted for tightness, featuring an integrally formed synthetic silicone seal strip, ensuring the inside maintains a high vacuum level.
● Vacuum sensors utilize imported sensors with stable performance and high control accuracy.
High-Capacity Vacuum Drying Oven DZF-1000B with Color Touch Screen and PLC Integrated ControlTechnical Specifications:
Model | DZF-1000A | DZF-1000B |
Control System |
PLC control, integrated PLC control, featuring a 7-inch color touch screen HMI. Capable of setpoint or programmed operation. Programmable cyclic operation for parameters such as vacuum level, nitrogen filling, temperature, and cycle duration. Includes temperature and vacuum data recording and export functionality. | |
Display screen | 7-inch | |
Volume | 1000L | |
Heating Method | Bundle Heating | |
Partition | 5 pieces | |
Vacuum Degree | 100Pa | 1000Pa |
Vacuum Deviation | ±50Pa | ± 100Pa |
Temperature Control Range | Room temperature +10℃-250℃ |
Temperature resolution | 0.1℃ |
Temperature Fluctuation | ±1℃-±2℃ |
Office Hours | 1-9999 min timer or continuous |
Heating Power | 12kw |
Vacuum pump power | 1.5kw |
Vacuum Pump Model | 15L |
Operating Power Supply | AC 380V 50Hz |
Studio size: mm | 1000*1000*1000 |
Power Voltage | AC380V, 50Hz, (3-phase, 5-wire) |
Note:
1. In actual operation, if the vacuum drying oven is handling corrosive materials such as volatile adhesives, chemical thinners, acidic or alkaline liquids or solids, please promptly inform our technical department; (selection of vacuum pumps, sensors, filters, inner tank materials, pressure valves, solenoid valves, seals, and other accessories is available)
2. If the vacuum drying oven is to be used for degassing or deoxygenation of liquids or thick liquids in actual operation, please inform the technical department of our company prior to purchasing the equipment (vacuum pumps, sensors, and filters to be selected).
3. When using a vacuum drying oven for long-term drying of materials with high moisture content, please inform the technical department of our company in advance (vacuum pumps, sensors, and filters to be selected and matched).
4. If the vacuum drying oven operates continuously at 230 °C or above and at a pressure below 100Pa, please promptly inform our technical department; (optional components include vacuum pump, sensor, filter, inner pot material, pressure valve, solenoid valve, and other accessories)
5. If the vacuum drying oven is to be used with materials that could be damaged or react upon contact with oil, please inform our technical department (including the selection of vacuum pumps and other accessories) prior to purchasing the equipment.
