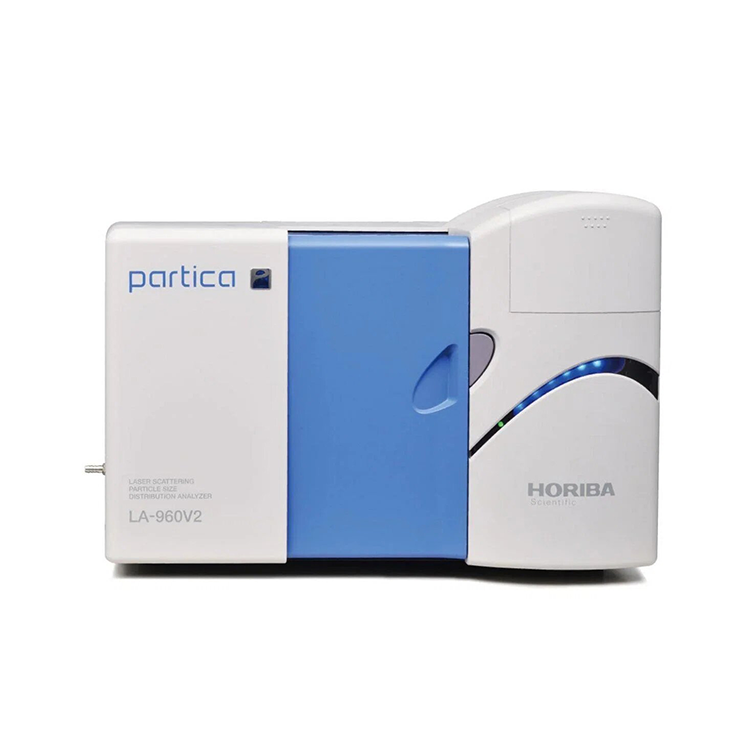

Partica LA-960V2
Laser Particle Size Analyzer
The LA-960V2 continues HORIBA's tradition of exceptional design, leading the industry. Its intuitive software, unique accessories, and superior performance push scientific understanding into uncharted territories, marking a groundbreaking evolution in the LA series instruments.
HORIBA's optical design enhances the static light scattering particle size measurement technology
Advanced detector design
The number, angle range, and layout of the detectors all affect the overall system performance.
Excellent instrument correlation
No matter the length of time the instrument has been manufactured or the proficiency of the operators, the LA-960V2's design and manufacturing ensure a consistent experience. The instruments have a high degree of interrelation.
Automatic laser alignment within seconds
Computer-controlled automatic laser alignment ensures precise measurement at all times. The calibration process using HORIBA's innovative method takes just a few seconds.
Accuracy and precision guaranteed
The LA-960V2 is a high-precision particle size analyzer capable of measuring NIST traceable standard particles with an accuracy of 0.6% and reproducibility of 0.1%, fully compliant with the ISO 13320 recommendations for the measured materials' D10, D50, and D90.
State-of-the-art sampling system
Wet Measurement
Sample analysis completed in 60 seconds
The HORIBA LA-960V2 Wet Loop System is a simple, fast, and powerful dispersion system. The standard wet system includes a dispersion medium injection pump, level sensor, circulation pump, 30 W on-line ultrasonic probe, and drain valve. All these functions can be controlled by software for true one-touch operation. This advanced design ensures the reproducibility of particle size measurement.
Dry Measurement
Automatic and effective dry powder dispersion
The LA-960V2 Dry Powder喷射attachment offers high reproducibility in dry measurement. The automatic measurement function controls vacuum cleaner, air pressure, powder flow rate, start/stop conditions, measurement duration, and data processing. This design is applicable to various fields, including small samples, fragile powders, and highly agglomerated materials, among other types of samples.
• Smart Scanning - Trigger Function
This feature can accurately measure very precious materials. When sample quantity is limited or fluidity is poor, the trigger function can accurately initiate and stop the measurement.
• Automatic powder flow adjustment
The challenge of dry measurement has always been in achieving a stable flow rate of the powder. The LA-960V2 powder jet system employs feedback self-regulation to maintain a constant light transmittance, thus solving this难题. This is the crucial factor ensuring the reliability and reproducibility of the LA-960V2 dry testing.
LY-9610 Image Unit
Image UnitReal-time observation, particle image collection, and evaluation of particles in the wet recycling system are available. The compact integrated unit can be neatly installed within the Partica LA-960V2 without increasing the instrument's footprint.
Features
• Even trace amounts of abnormal particles (contaminants, large particles, and aggregated particles) can be detected and counted.
Inspect bubbles in the wet cycle system.
• Better understand the effects of sample dispersion (stirring, ultrasonic treatment, addition of surfactants, stabilizers, etc.)
• Particle Shape Analysis* (Optional Advanced Software)
Feature
Image acquisition and particle detection.
• Automatic detection of large particles.
• Bubble detection automated.
• Real-time trend charts and histograms of equivalent circular diameters.
• Shape distribution histogram with optional advanced software (aspect ratio, circularity, length, width).
