Is applying for an explosion-proof certification the same as obtaining an explosion-proof qualification certificate?
Many customers ask when inquiring about the product, what is the difference between applying for a explosion-proof certification and an explosion-proof qualification certificate?
In the context of explosion-proof certifications, an explosion-proof certificate and an explosion-proof qualification certificate are two distinct concepts.

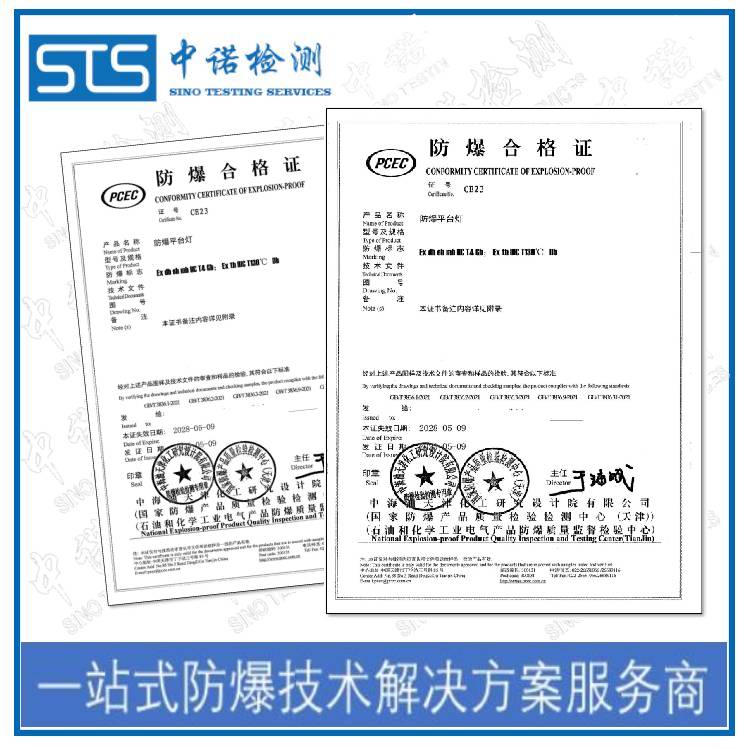

The product has passed the explosion-proof certification, resulting in the issuance of an explosion-proof certificate. The explosion-proof certification is the process, while the explosion-proof certificate is the outcome.
So the customer mentioned that the product needs to have a explosion-proof certification or an explosion-proof compliance certificate.
The product must pass the explosion-proof standard tests and meet the standard requirements to obtain an explosion-proof certification.
Explosion-proof certifications can be categorized according to different explosion protection types, such as intrinsic safety, flameproof, pressurized, and encapsulated.
ZhongNuo Inspection has a dedicated team of explosion-proof engineers who can provide initial design services for explosion-proof circuits and structures.
Assist companies in compiling the necessary drawings, technical specifications, and manuals, including enterprise standards, for explosion-proof certifications, helping them obtain the explosion-proof qualification certificate.
If you need certification in this area, feel free to DM us!

Intrinsically Safe and Exproof certifications are two common types of explosion protection, differing fundamentally in their principles, mainly as follows:
Explosion-proof certification typically involves the use of explosion-proof enclosures. These enclosures must be sufficiently thick and strong to ensure that even if an explosion occurs inside the equipment, the flame will be extinguished due to the width, gap, and roughness of the joint surfaces of the explosion-proof enclosure, thereby igniting the external hazardous environment. On the other hand, even if an explosion occurs in an external hazardous area, the explosion-proof enclosure retains its explosion-resistant properties. In summary, explosion-proof enclosures can withstand and resist explosions, but the equipment may be relatively bulky.
The intrinsic safety certification, also known as inherent safety certification, ensures that even in the event of an anticipated fault, the energy produced is not sufficient to ignite surrounding explosive substances, achieving inherent safety. Consequently, intrinsic safety products have higher requirements for device circuits and operating power, and are generally suitable for handheld devices and low-power products.
Additionally, there is a composite explosion-proof certification. This indicates that the product cannot achieve explosion-proofing with a single type; it must utilize two or more types of explosion-proofing. For instance, explosion-proof equipment with antennas, where the antenna section is typically intrinsically safe, this equipment is considered both explosion-proof and intrinsically safe. However, it's important to note that a composite explosion-proof product does not mean the product must meet all requirements of different explosion-proof types simultaneously, nor does its explosion-proof level necessarily exceed that of a single type. The level of explosion-proofing primarily depends on the gas/dust category, temperature group, and equipment protection level.
For more information on explosion-proof certifications for intrinsic safety and flameproof, please feel free to contact Shenzhen Zhongnuo Testing Technology Co., Ltd. at any time.

Limitation requirements for surface resistance of non-metallic casings of explosion-proof equipment
In hazardous areas with explosive dust or gases, such as coal dust, flour, etc., static electricity may cause fires or explosions, posing a significant risk. Therefore, it is advisable to minimize the use of insulating materials in explosive hazardous areas. When selecting electrical insulating materials, consider maintaining low insulation resistance to prevent discharge when non-metallic components come into contact with charged parts. For non-metallic insulating materials, the anti-static capability of the equipment can be evaluated by measuring the surface resistance of the equipment's casing.
Surface Resistance, measured in ohms (Ω), refers to the resistance between two electrical contacts on the measuring surface.
In compliance with the IEC 60079 series standards:
In II Division explosive gas environments, when the surface area of the non-metallic housing of electrical equipment exceeds a certain limit (as shown in Table 1), the surface resistance of the non-metallic material must be tested to ensure that: by selecting the material, the surface resistance meets at least one of the following requirements during measurement according to IEC 60079-0 26.13:
At ≤1 GΩ, (505)% relative humidity;
At ≤100 GΩ, (305)% relative humidity.
2. In environments with Class III explosive dust, if the surface area of the non-metallic housing of electrical equipment does not exceed 500 mm², the risk of static electricity can be disregarded; if it exceeds this limit, a surface resistance test must be conducted for verification. The requirements for assessment are the same as those for the surface resistance test limit in Class II gas environments. For fixed installation equipment that cannot meet the surface resistance limit, an "X" can be added after the "Explosion-proof" sign, a corresponding warning sign should be placed on the equipment, and the user should be informed in the user manual.

What standards are used for explosion-proof certification? What technical requirements are there?
An explosion-proof type is a type of explosion-proof design for electrical equipment.
The housing is capable of withstanding explosive mixtures entering the housing through the housing joint surfaces or structural gaps, without damage upon internal explosion.
And cause ignition of an explosive gas atmosphere formed by one, several gases or vapors.
Explosion-proof casings must possess both explosion-proof and explosion-resistant properties. Generally, the casings of products designed for explosion-proofing tend to be rather bulky.
Products and equipment suitable for fixed installation and use.
Combustible gas-tight junction width, gap, and roughness are the three key elements of explosion-proof housing design.
Design requirements for explosion-proof three elements vary depending on the different explosive gas environments used in Class I mining, non-mining Class IIA, IIB, and IIC.
Refer to the design standards of GB/T3836.1 and GB/T3836.2 for specifics.
ZhongNuo Inspection has long been dedicated to explosion-proof product design, testing, and certification services.
A specialized explosion-proof technology team is in place in the explosion-proof field, well-versed in explosion-proof standard requirements.
Offer explosion-proof housing design, drafting, modification guidance, certification consultation, and more.
If you have a need for this as well, feel free to message us anytime!
