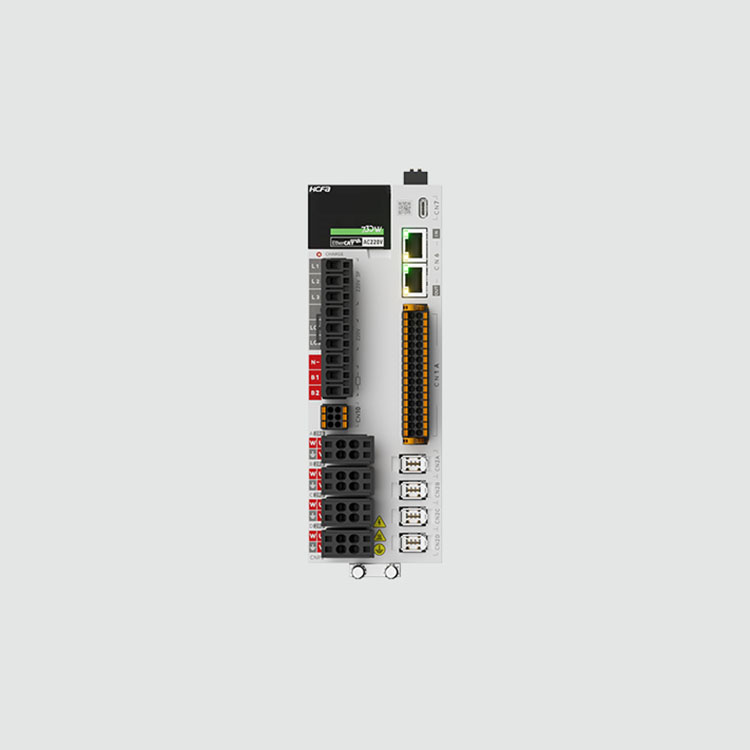

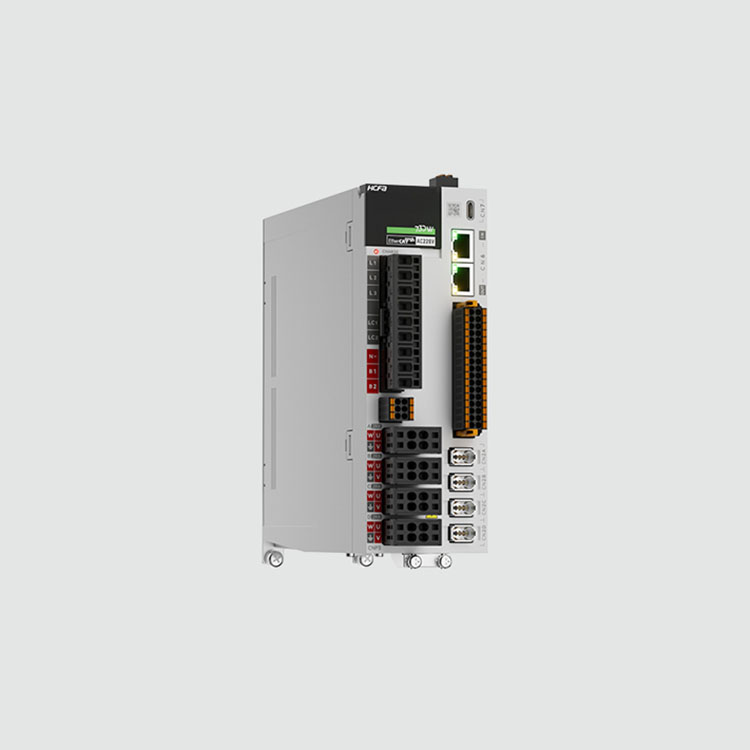

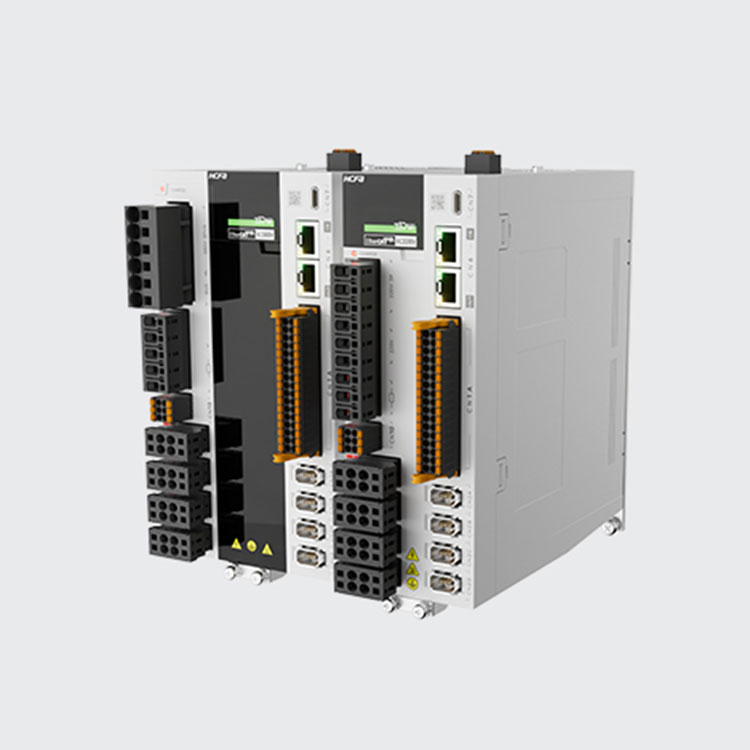

Product Series: SV730W Multi-Axis Integrated High-End AC Servo System

Driver Type: B-EtherCAT Bus Type

Power Coverage:

Overall Power Rating: 2KW-6KW, Power Supply: 3-phase AC 220V

Overall machine power: 2KW-9KW, power supply: three-phase/three-phase four-wire AC380V

Supported Protocols: CANbus

Product Features

Integrated

The complete machine features a minimum of 2 axes and a maximum of 4 axes, reducing the volume by 60% compared to single-axis products, effectively saving installation space.

Fast and reliable------

Every 4 axes

Only one set of power cables for one specification → Reduced power cable assembly.

Utilizing焊接-free Eurostyle IO quick connectors, engineering wiring time is reduced by 30%.

One wiring time ≈ 4 times the wiring time, significantly reducing installation costs while also cutting the installation labor hours substantially.

Unified power specifications, only one set of communication cables → Improved EMC performance and reliability of the driver.

Convenient debugging------

Integrated multi-axis system with built-in multi-channel oscilloscope and multi-axis parameter adjustment interface, enabling simultaneous parameter editing, gain adjustment, trial operation, and status monitoring for up to four axes, significantly reducing debugging time and enhancing assembly efficiency.

Multi-axis synchronization------

One brain, four bodies, capable of achieving high-precision gantry synchronization, meeting the high standards of industrial automation.

Expandable------

Single unit configuration up to 4 axes, with the capability to expand to additional axes.

Quality Assurance------

Three-year warranty, guaranteed quality

Offer a 36-month extended warranty to meet the high-quality standards of industry users.

Product Specifications

Naming Rules:

Motor Specifications:

Basic Specifications:

Environmental Specifications:

Product Dimensions:
