Product Model

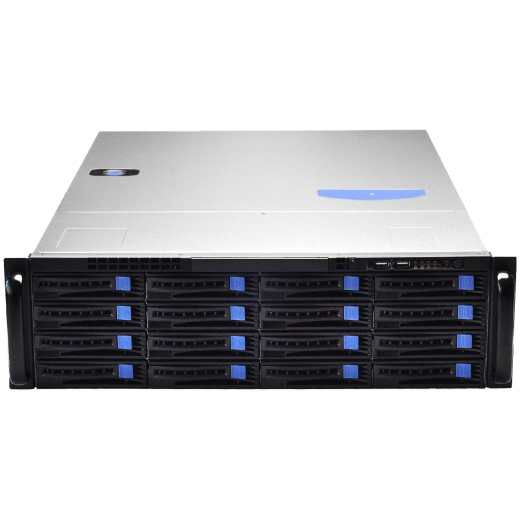

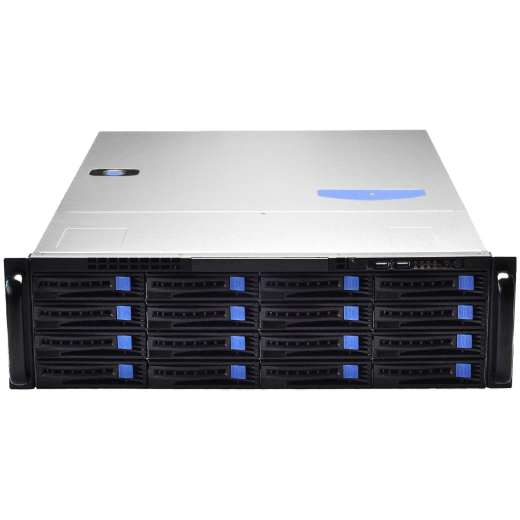

Model: NS7000-SS

Keywords: Storage Server

Product Overview

Standard storage systems in the security market, such as DVRs, NVRs, and CVRs, generally use a camera + device storage method, with a singular storage approach that struggles to meet the evolving needs of video system business development. Based on years of technical accumulation and the requirements of security integration and businessization, Zhongheng Jingyuan has introduced a centralized business-oriented video storage solution. This solution meets data storage needs and can also implement customized storage based on business requirements, having been reliably applied to numerous business scenarios.

Product Features

• Supports video equipment connectivity from major manufacturers, including private protocols for Hikvision, Dahua, Uniview, Tiandy, and Zhongheng Jingyuan.
• Supports video devices for access via ONVIF, RTSP, and GB28181 standard protocols.
• Supports H264, H265, MPEG4 video formats;
• Support various customized storage options.
• Supports manual recording, scheduled recording, and event recording methods.
• Supports private cloud, public cloud, and data center deployment.
• Supports video instant search, positioning, playback, and download functions.
• Supports RAID technology for enhanced data security.
• Support disk failure alarms, video disconnection alarms, and insufficient space capacity alerts.
• Supports automatic video overwrite.

Technical Specifications

• Storage Capacity: Supports hot-swap 16/24 bay options (model dependent), 3.5" or 2.5" hard drives.
• Management Capability: Built-in Web-based visual storage management system.
• Key Components: Domestic CPU/NPU, independently controllable.
• Networking Capability: Equipped with RSLink device networking protocol, featuring remote monitoring and management capabilities.
• Connectivity: Supports video equipment connections via RTSP, ONVIF, GB/T 28181, or private protocols from major manufacturers such as Hikvision, Dahua, and Uniview.
• Interface Protocols: SDK, HTTP, etc.
• Feature Expansion: Supports functional customization and expansion.
• External Interface: 4 RJ45 10/100/1000Mbps auto-sensing network ports, VGA/HDMI, 2 USB 2.0, 2 USB 3.0
• Power Supply: AC 220V
• Power Consumption: 600W to 1200W
• Operating Temperature: -10℃ to +55℃
• Operating Humidity: ≤90%
• Dimensions: Standard 19-inch rackmount case.
