Product Model

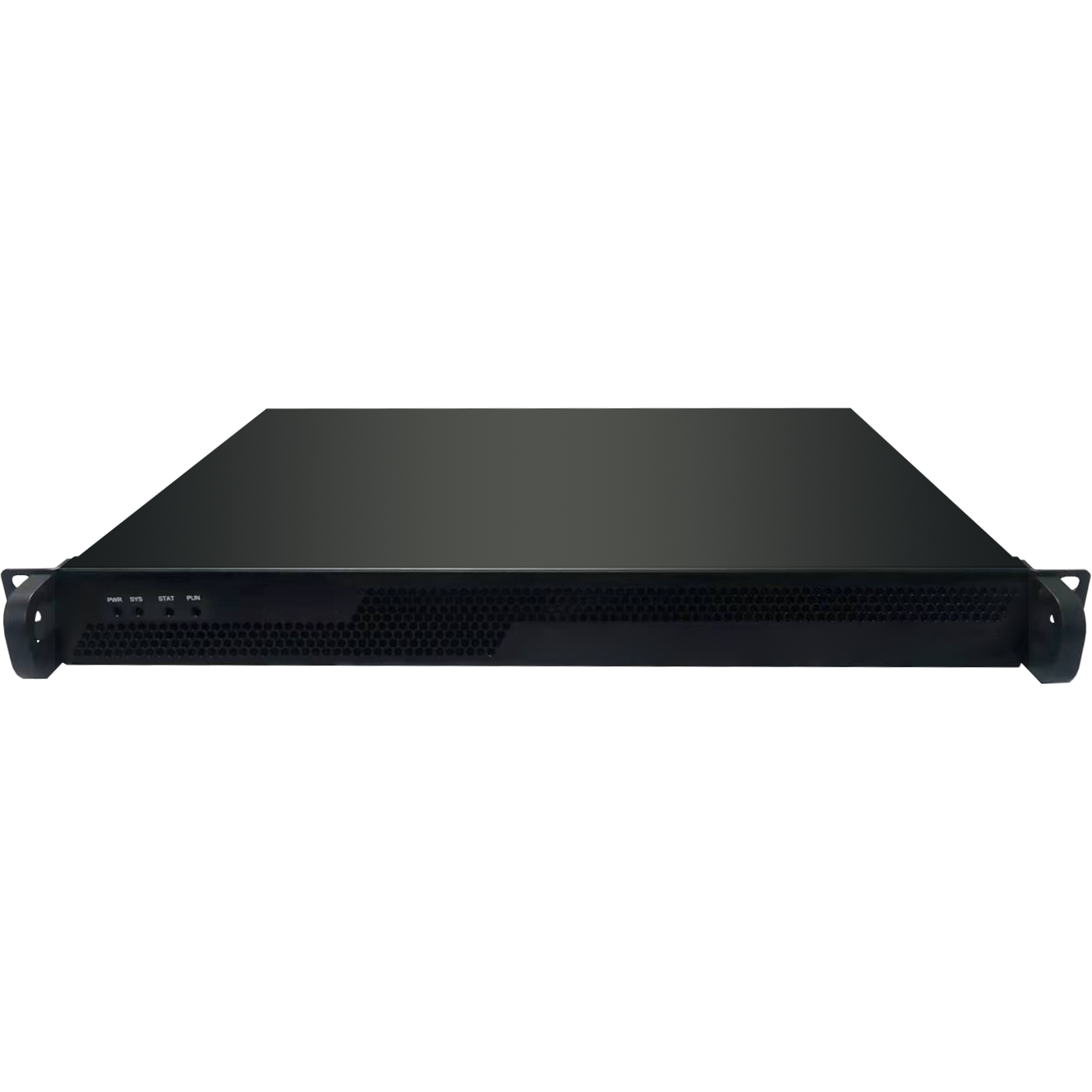

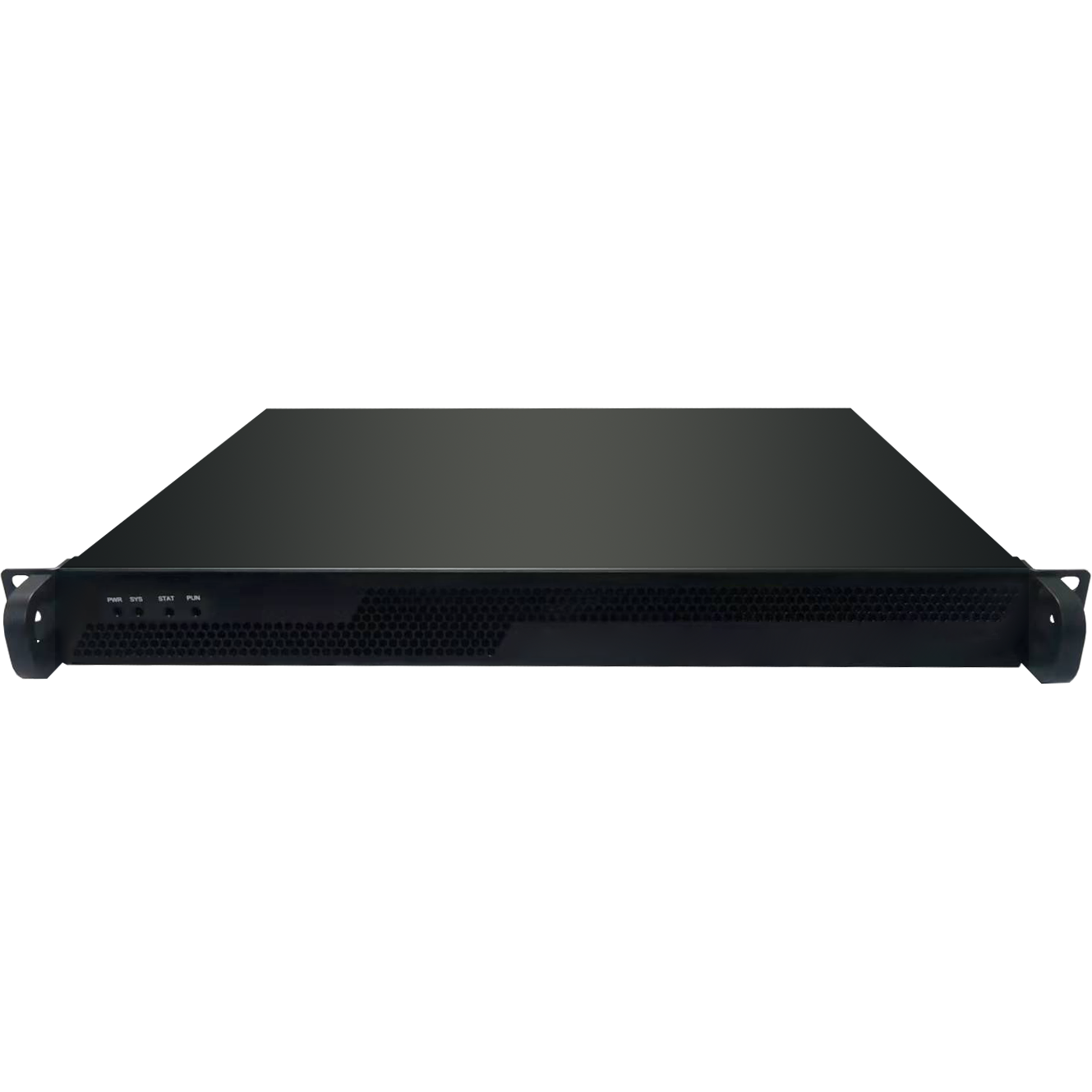

Model: NS7032-TE
32-channel Low Bit Rate Compression Server
Product Overview
Resolve high video bandwidth consumption and choppy high-definition video transmission in remote monitoring scenarios, achieving less data usage and lower bandwidth requirements under the same image quality.
Product Features
- Supports audio and video access under various network environments, including the internet, private networks, and campus networks.
- Boasts robust network penetration and multi-level networking capabilities, meeting the needs for penetration-style network remote supervision.
- Features link data encryption capabilities, ensuring data security.
- Supports smooth transmission of 1080P video at as low as 512Kbps bandwidth.
- Transmission delay for coding is controlled within 200ms.
Technical Specifications
- Compression Ability: Allows for secondary compression of existing video images, reducing data volume by approximately 80%.
- Networking Capability: Equipped with RSLink device networking protocol, featuring remote monitoring and management capabilities.
- Access Capability: Connect video devices via RTSP, ONVIF, or private protocols of mainstream manufacturers such as Hikvision, Dahua, and Uniview.
- Interface Protocols: H5, RTSP, WS, SDK, HTTP, etc.
- External Interfaces: 2 RJ45 10/100/1000Mbps auto-negotiating network ports, 1 HDMI, 2 USB.
- Power Supply: DC 12V
- Power Consumption: 20W to 45W
- Operating Temperature: -20℃ to +60℃.
