The company reserves the right to make improvements and changes to the product's appearance and technical specifications without prior notice; the products and images are for reference only, and the actual product appearance prevails. For detailed product information, please contact our company.
Product Model

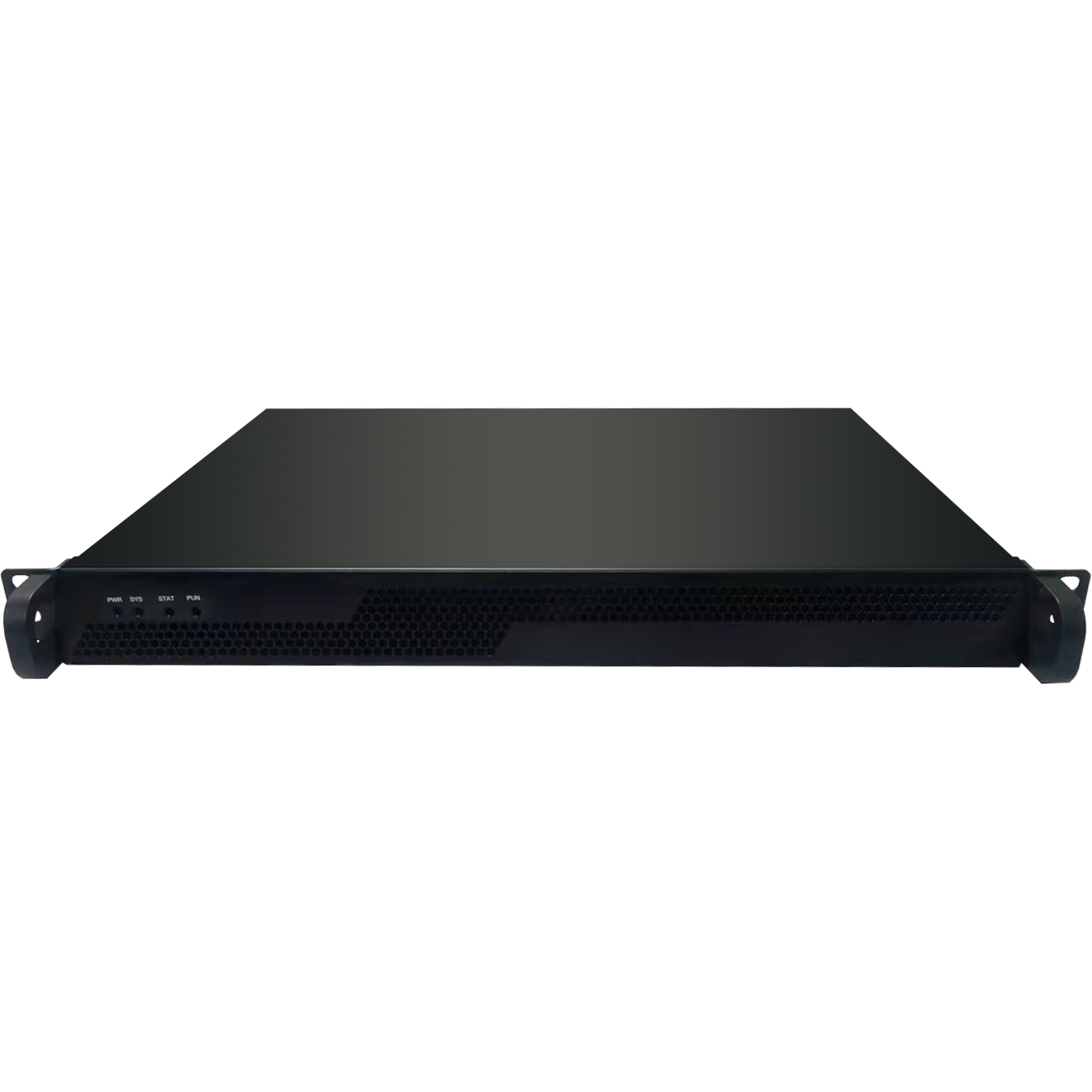

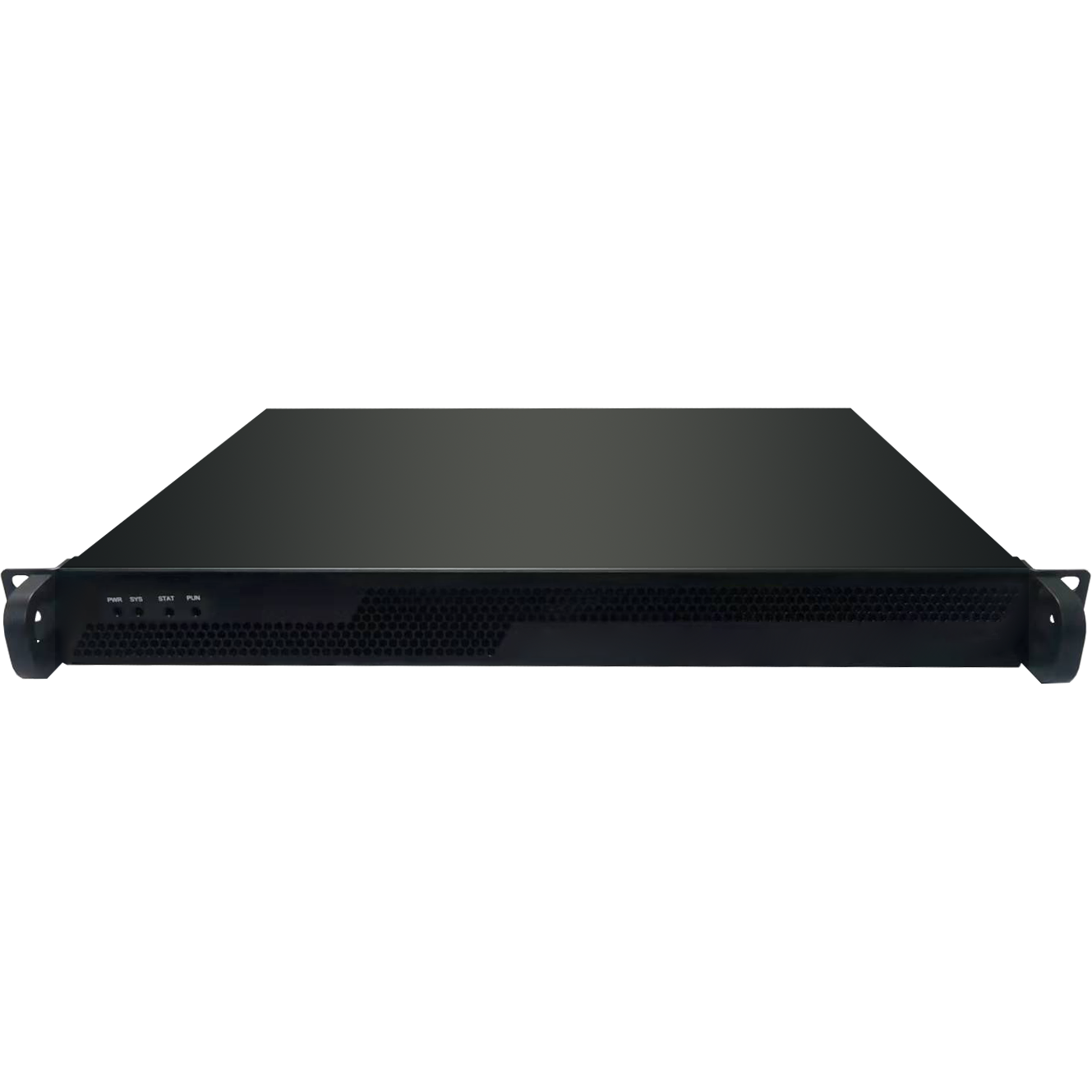

Model: NS7016-TE
16-Channel Low Bitrate Compression Server
Product Overview
Resolve high video bandwidth consumption and choppy high-definition video transmission in remote monitoring scenarios, achieving less data traffic and lower bandwidth requirements under the same image quality.
Product Features
- Supports audio and video access under various network environments, including the Internet, private networks, and campus networks.
- Boasts robust network penetration and multi-level networking capabilities, meeting the needs for remote supervision in穿透style networking.
- Features link data encryption for secure data protection.
- Supports smooth transmission of 1080P video at as low as 512Kbps bandwidth.
- Transmission delay for coding is controlled within 200ms.
Technical Specifications
- Compression Capability: Allows for secondary compression of existing video images, reducing data volume by approximately 80%.
- Networking Capability: Equipped with built-in RSLink device networking protocol, featuring remote monitoring and management capabilities.
- Access Capability: Connect video devices via RTSP, ONVIF, or private protocols of mainstream manufacturers such as Hikvision, Dahua, and Uniview.
- Interface Protocols: H5, RTSP, WS, SDK, HTTP, etc.
- External Interface: 2 RJ45 10/100/1000Mbps auto-negotiating network ports, 1 HDMI, 2 USB.
- Power Supply: DC 12V
- Power Consumption: 15W to 35W
- Operating Temperature: -20℃ to +60℃.
