Product Model

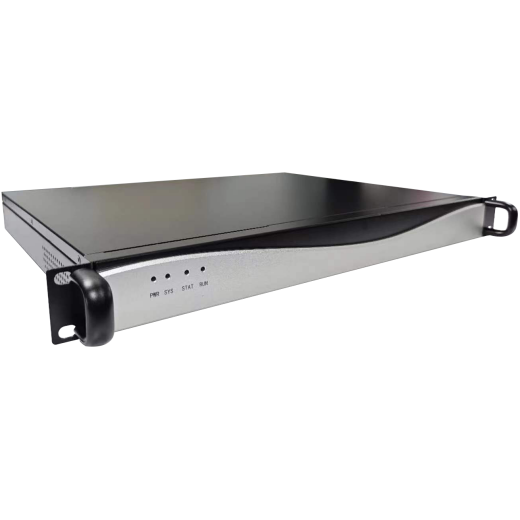

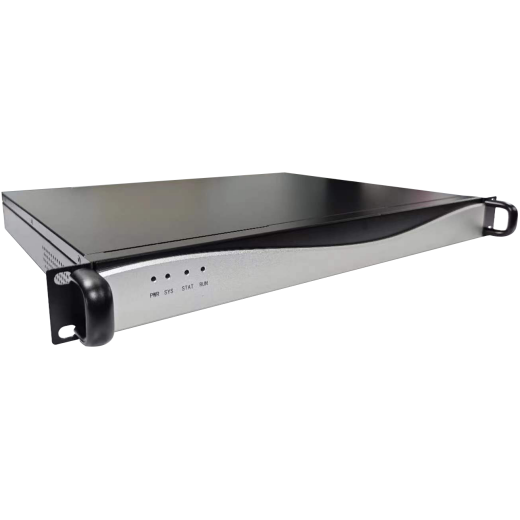

Model: NS8116

16-way Embedded AI Analysis Server

Product Overview

Embedded AI servers, capable of efficiently completing complex tasks such as deep learning AI pattern analysis, deployed in smart parks and industrial sites, featuring strong computing power and high data throughput.

Product Features

• High computing power, capable of running complex algorithms.
• High cost-performance, comprehensive features, meeting industry applications.
• Adaptable, supports both edge and cloud deployment.
• Supports AI open system architecture; the third algorithm is integrated into the system via the standard SDK.

Technical Specifications

• Key Components: Domestic CPU/NPU, independently controllable.
• Management Capabilities: Built-in Web-based device management platform.
• Storage Capacity: Capable of local storage for 100,000 alarm records, with an expandable built-in storage interface.
• Network Capability: Equipped with RSLink device networking protocol, featuring remote monitoring and management capabilities.
• Access Capability: Connect video devices via RTSP, ONVIF, or private protocols of mainstream manufacturers like Hikvision, Dahua, and Uniview.
• Platform Support: Zhongheng Jingyuan AI Analysis Platform or Third-party AI Management Platform;
• Interface Protocols: SDK, HTTP, etc.
• Feature Expansion: Supports algorithmic or functional customization and development.
• Smart Reconciliation: Integrated with AI post-processing technology, effectively prevents duplicate and false alarm reports.
• Smart Storage: Supports advanced multimodal storage technology to meet the needs of personalized data storage.
• Eco-compatibility: The equipment utilizes an open system architecture, enabling third-party developers to integrate customized algorithms into the system to meet users' needs for algorithm expansion.
• Analysis Capability: Real-time analysis of 16 channels of 1080P images
• External Interface: 2 RJ45 10/100/1000Mbps auto-negotiating network ports; 2 USB; 2 RS-232.
• Internal Storage: 1 SATA hard drive interface
• Power Supply: DC 12V
• Power Consumption: 20W to 30W
• Operating Temperature: -10℃ to +40℃
• Dimensions: 1U rackmount standard cabinet, 430mm (width) × 350mm (depth) × 45mm (height).
