Product Model

Model: NS8864

Keywords: 64-channel AI analysis server

Product Overview

High-performance server-grade AI equipment for efficient completion of intensive deep learning AI pattern analysis tasks. Deployed in smart parks and industrial sites, it boasts super strong computational power to meet the real-time analysis of large data volumes.

Product Features

• High-performance servers with strong computational power, capable of flexible configuration to meet specific needs.
• Storage capacity options available to meet the needs for long-term video storage.
• Highway counting with concurrent processing, supporting real-time analysis of up to 256 video streams.
• Supports AI open system architecture; the third algorithm integrates with the system via a standard SDK.

Technical Specifications

• Key Components: Domestic CPU/NPU, independently controllable.
• Management Capability: Built-in Web-based Device Management Platform
• Storage Capacity: Capable of local storage for 100,000 alarm records, with an expandable built-in storage interface.
• Networking Capability: Equipped with an RSLink device networking protocol, featuring remote monitoring and management capabilities.
• Access Capability: Connect video devices via RTSP, ONVIF, or private protocols of mainstream manufacturers such as Hikvision, Dahua, and Uniview.
• Platform Support: Zhongheng Jingyuan AI Analysis Platform or Third-party AI Management Platform;
• Interface Protocols: SDK, HTTP, etc.
• Feature Expansion: Supports algorithmic or functional customization and expansion.
• Intelligent Reverification: Integrated with AI post-processing technology, effectively prevents the repetition and misreporting of alarm events.
• Intelligent Storage: Supports advanced multimodal storage technology to meet the needs of personalized data storage.
• Ecological Compatibility: The equipment employs an open system architecture, allowing third-party developers to integrate customized algorithms into the system to meet users' needs for algorithm expansion.
• Analysis Capability: Real-time analysis of 64 channels of 1080P images
• External Interfaces: 2 RJ45 10/100/1000Mbps auto-sensing network ports; VGA/HDMI; 2 USB 2.0; 2 USB 3.0; 2 RS-232.
• Internal Storage: 4 SATA hard drive interfaces
• Power Supply: AC 220V
• Power Consumption: 260W~580W
• Operating Temperature: 5°C to 40°C

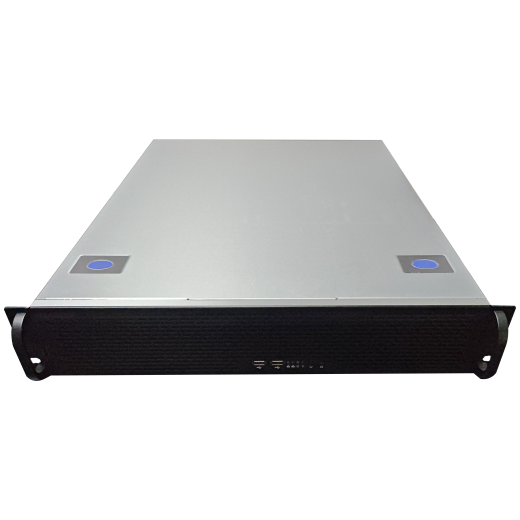

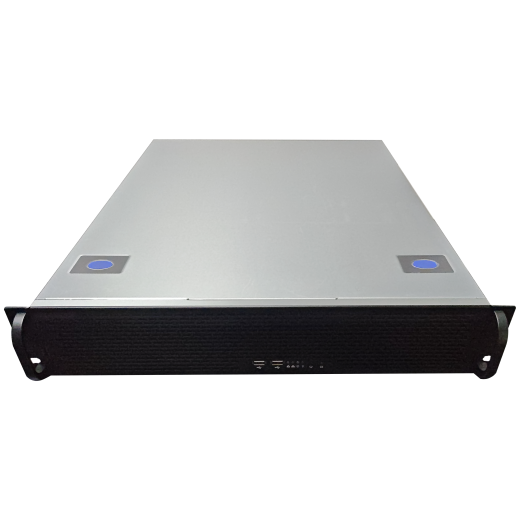

• Size: 2U rackmount standard enclosure, 435mm (width) × 550mm (depth) × 88mm (height).
