The company reserves the right to make improvements and changes to the product's appearance and technical specifications without prior notice; the products and images are for reference only, and the actual product appearance prevails. For detailed product information, please contact our company.

Product Model

Model: NS7000-S

Keywords: Streaming Media Server

Product Overview

Designed for multi-stream concurrent video monitoring, video transcoding, and multi-terminal access, it supports multi-level networking, plugin-free video web playback, mature and open API interfaces, significantly reducing the development cycle for partners' video applications.

Product Features

• Compliant with video equipment from mainstream manufacturers, supports private protocols of brands such as Hikvision, Dahua, Uniview, Tiandy, and Zhongheng Jingyuan.
• Supports video devices for ONVIF and RTSP standard protocol connections.
• Supports H.264, H.265, MPEG-4, and other video formats.
• A single server can handle concurrent access to over 200 high-definition video streams.
• Reduce equipment access stress and extend the lifespan of the equipment.
• Comprehensive SDK and API development interfaces to cater to various audio and video application development needs.
• Stable and reliable, supporting 7x24-hour continuous operation.
• Supports rapid network setup in various complex network environments.
• Supports multi-level deployment to meet the needs of large-scale monitoring projects.
• Millisecond-level latency, meeting high-standard monitoring requirements.
• Implement data link encryption to ensure the security of video data transmission over the public internet.

Technical Specifications

• Management Capabilities: Supports connection of streaming media terminals, and supports multi-level streaming media communication.
• Networking Capability: Equipped with RSLink device networking protocol, featuring remote monitoring and management capabilities.
• Access Capability: Connect video devices via RTSP, ONVIF, or private protocols of mainstream manufacturers such as Hikvision, Dahua, and Uniview.
• Interface Protocols: H5, RTSP, WS, SDK, HTTP, etc.
• External Interfaces: 2 RJ45 10/100/1000Mbps auto-sensing network ports, 1 HDMI 2.0, 2 USB ports.
• Power Supply: AC 220V
• Power Consumption: 200W to 300W
• Operating Humidity: ≤90%
• Operating Temperature: -10℃ to +55℃

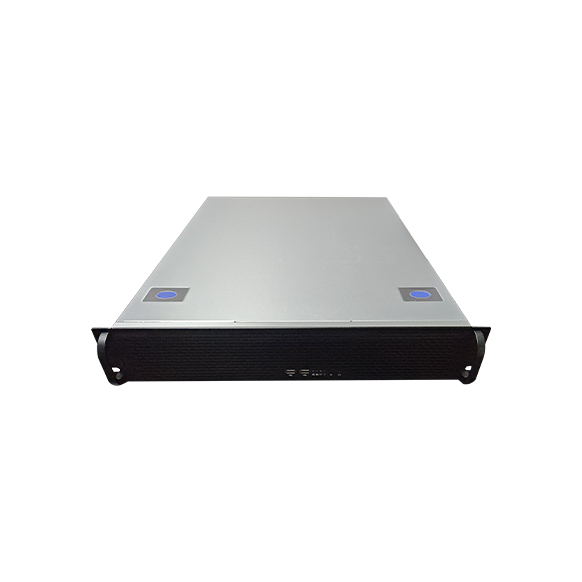

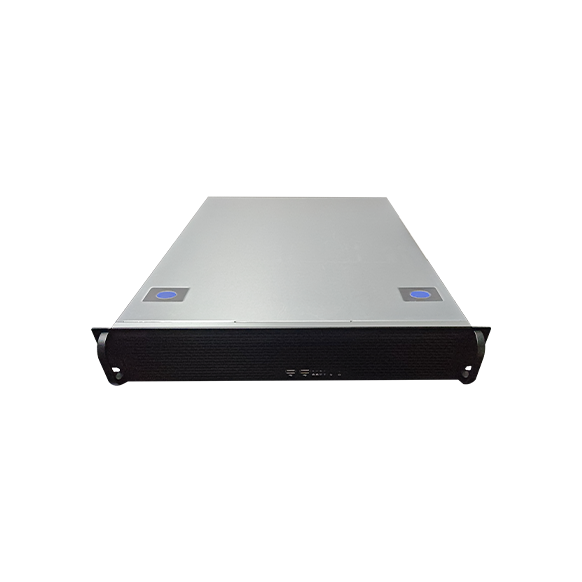

• Dimensions: 2U Rackmount Standard Chassis, 437mm (Width) × 548.7mm (Depth) × 88.8mm (Height).
