Product Model

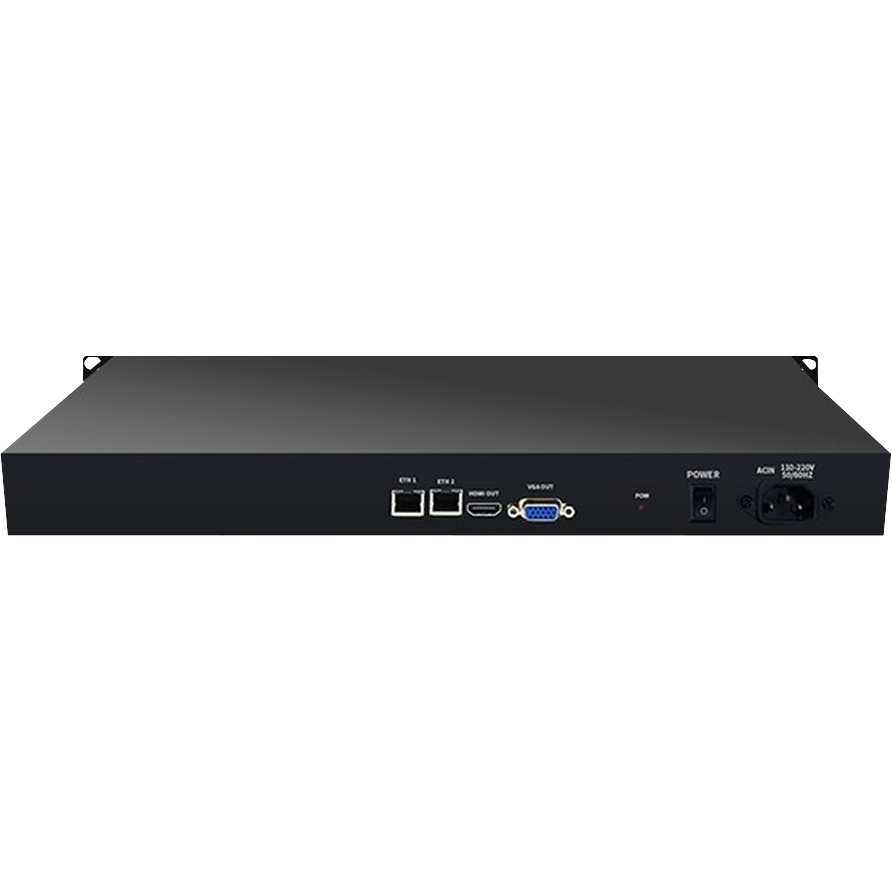

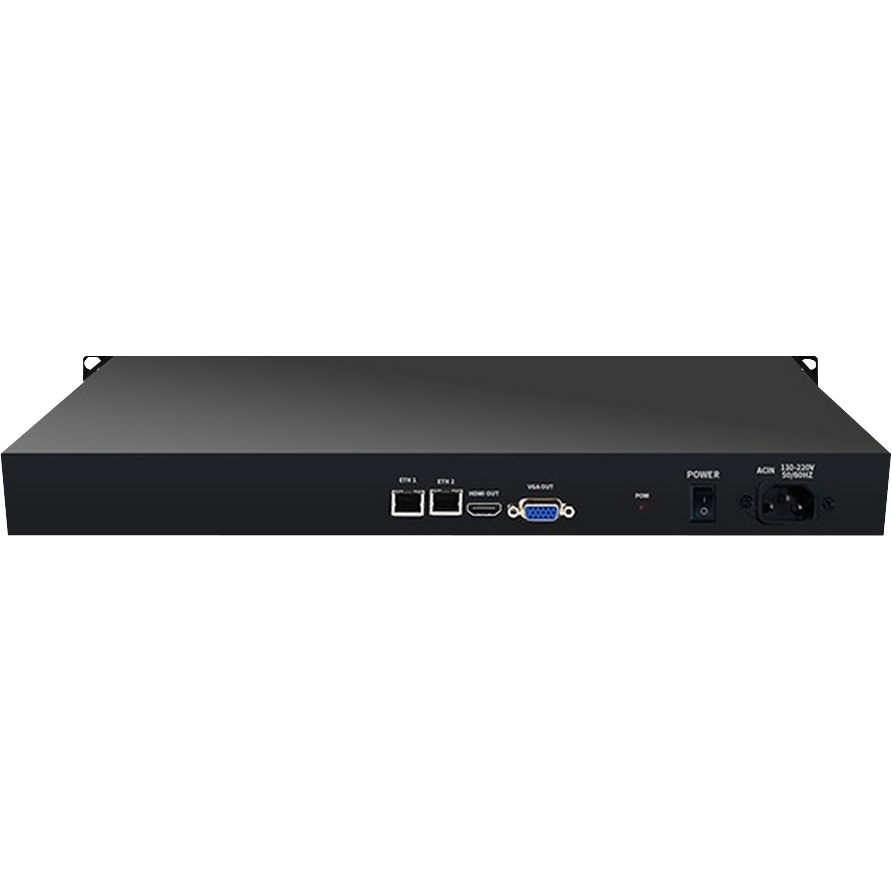

Model: NS7064-T

Keyword: 64-Channel Streaming Media Terminal

Product Overview

Engineered specifically for video remote surveillance, deployed at the edge where remote monitoring is required, it supports network penetration networking and adapts to various network architectures. It can easily enable video internet remote monitoring without reliance on other dedicated network equipment.

Product Features

• The system is designed with an embedded architecture.
• Supports a wide range of mainstream IPC/DVR/DVS/NVR video devices, compatible with major brands such as Hikvision, Dahua, Uniview, and Tiandy.
• All equipment can be accessed via standard protocols such as ONVIF and RTSP.
• Localized access via H5, RTSP, SDK, etc.
• Supports real-time monitoring, remote control, video search, and playback functions, as well as multi-channel concurrent access.
• Deployable in local, wide area, and internet networks, ensuring worry-free data transmission.
• Easy to deploy; simply configure the IP address correctly to establish communication and access.
• Signal channel data encryption ensures secure internet data transmission.
• 24/7 uninterrupted operation, high stability.
• Supports network self-inspection and automatic connection repair.
• Remote maintenance support for equipment.

Technical Specifications

• Networking Capability: Equipped with an internal RSLink device networking protocol, featuring remote monitoring and management capabilities.
• Connectivity: Compatible with video devices through RTSP, ONVIF, or private protocols of mainstream manufacturers such as Hikvision, Dahua, and Uniview.
• Interface Protocols: H5, RTSP, WS, SDK, HTTP, etc.
• External Interfaces: 2 RJ45 10/100/1000Mbps auto-sensing network ports, 1 HDMI, 2 USB.
• Power Supply: DC 12V
• Power Consumption: 5W to 50W
• Operating Temperature: -20℃ to +60℃.
