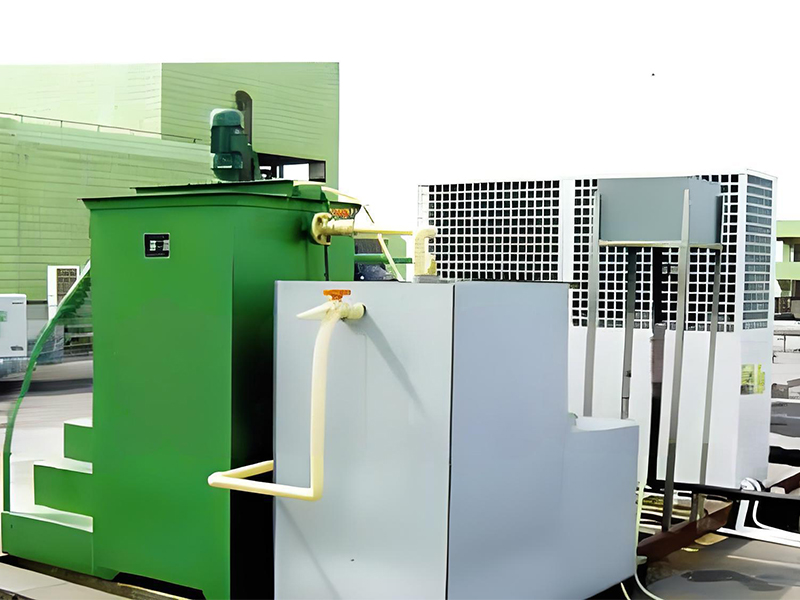

The Laboratory Emission Treatment System collects, purifies, and processes toxic, harmful, flammable, and explosive gases (such as volatile organic compounds VOCs, acidic gases, alkaline gases, sulfur/nitrogen-containing gases, etc.) generated during laboratory operations, using physical, chemical, or biological methods. It ensures these gases meet national emission standards (e.g., "Comprehensive Emission Standard for Air Pollutants" GB 16297) before being released. This system is crucial for the health of laboratory personnel, the safety of surrounding environments, and environmental compliance, and is widely used in fields such as chemistry, pharmaceuticals, materials, and environmental testing.

Key System Design Standards and Specifications

The laboratory exhaust treatment system must strictly comply with national environmental protection standards (GB 16297, GB 37822 "Control Standard for Unorganized Emission of Volatile Organic Compounds") and industry regulations. The key design points are as follows:

Emission Collection Design Standards

Capture Efficiency: Local exhaust (such as lab bench operations) requires a swivel exhaust hood (airflow speed ≥0.5m/s, hood opening distance from exhaust source ≤30cm), ensuring cabinet exhaust (like fume hoods) maintains a negative pressure of -5 to -15Pa, with a capture efficiency ≥90%.

Pipe Design:

Pipe material must be compatible with exhaust gases (use PP pipes or FRP pipes for acidic exhaust gases, galvanized steel pipes or stainless steel pipes for organic exhaust gases, to avoid corrosion or swelling).

Pipe Velocity Control: Acidic/Alkaline Waste Gases ≤ 15m/s, VOCs Waste Gases ≤ 12m/s (to prevent excessive velocity causing pipe wear or waste gas retention)

Avoid dead ends: Large-radius elbows (R≥3D, where D is the pipe diameter) are used at pipe bends, and 45° miter joints are employed for the connection of branch pipes to main pipes.

2. Design Standards for Main Purification Unit

Absorber Tower Design

Filling Material Selection: Polypropylene Pall Ring for acidic waste gas, ceramic filling for alkaline waste gas; filling layer height ≥ 1.5m.

Liquid-to-gas ratio: Acidic waste gas treatment liquid-to-gas ratio ≥ 2L/m³, alkaline waste gas ≥ 1.5L/m³.

Activated Carbon Adsorption Tower Design:

Activated Carbon Filling Quantity: Based on the waste gas volume and concentration, the empty tower flow rate ≤ 0.8 m/s, and residence time ≥ 1.5 s.

Safety Design: The吸附塔 must be equipped with a explosion-proof valve and a CO concentration detector.

Catalytic combustion unit design:

Catalyst Selection: For treating sulfur / chlorine VOCs, anti-poisoning catalysts are required with space velocity ≤ 15,000 h⁻¹.

Preheat Temperature: During cold start, the exhaust gas needs to be preheated to the catalyst ignition temperature, using electric heating or waste heat recovery.

3. Emission and Safety Design Standards

Exhaust pipe requirements: The exhaust pipe height must be higher than the laboratory roof by ≥3m, and the distance to surrounding sensitive points must be ≥50m, with an exhaust velocity of ≥5m/s.

Monitoring and Alarm

Exhaust outlets must be equipped with online monitoring devices.

Gas concentration detectors must be installed before and after the purification unit, and they should be linked with the fan and valves.

Emergency Design: The system must be equipped with bypass pipes.

IV. Daily Operations and Security Management

Regular maintenance content

Daily Inspection:

Check fan operating status.

Check the level of the absorption tower.

View online monitoring data.

Weekly Maintenance:

Clean the filter of the pretreatment unit.

Calibrate gas concentration detectors.

Monthly / Quarterly Maintenance:

Replace activated carbon.

Check catalyst activity.

Clean the absorbent tower packing.

2. Safety Operating Procedures

Prior to starting the waste gas treatment system, the pretreatment unit must be activated first, followed by the fan, to prevent untreated waste gas from being directly discharged.

When replacing activated carbon/catalysts, protective gear must be worn, and the used activated carbon/catalysts should be disposed of as hazardous waste by a qualified unit.

In case of exhaust gas leakage, immediately shut down the equipment, close the exhaust source, activate emergency ventilation, and restart the system after the leak is resolved.

Regularly conduct emergency drills to ensure personnel are familiar with shutdown, evacuation, and rescue procedures.

3. Environmental Compliance Requirements

Regularly commission a third-party testing agency to sample and analyze exhaust emissions from the exhaust outlet, issue a test report, and ensure compliance with emission standards.

Establish an operation and maintenance ledger, retaining it for at least 3 years for potential environmental inspection.

If there is a significant change in the composition or airflow of the laboratory's exhaust gas, the treatment process must be reassessed, and the system may need to be modified if necessary, to prevent purification failure due to "mismatch."
