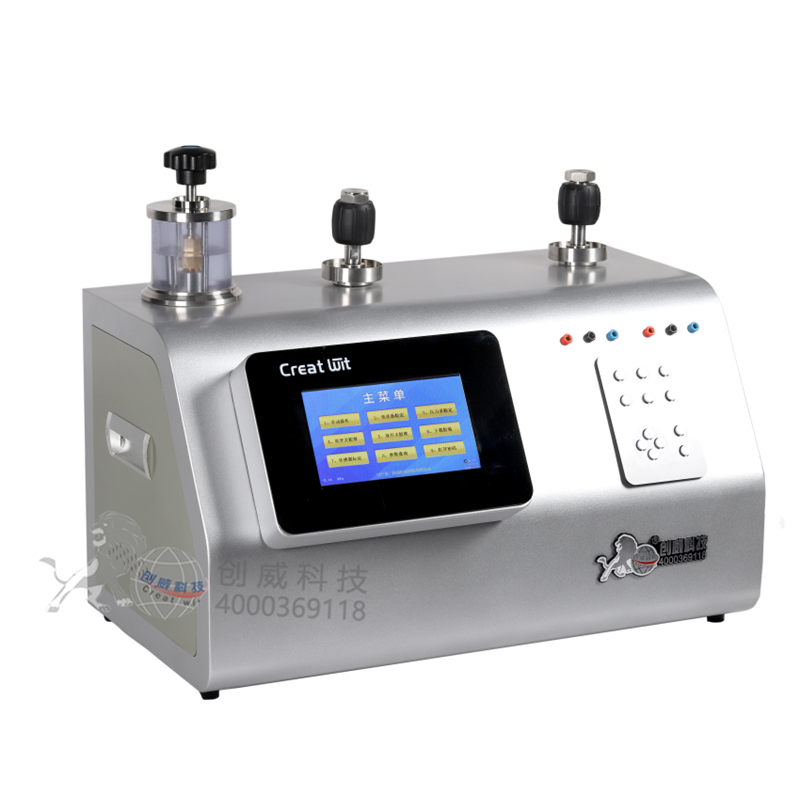

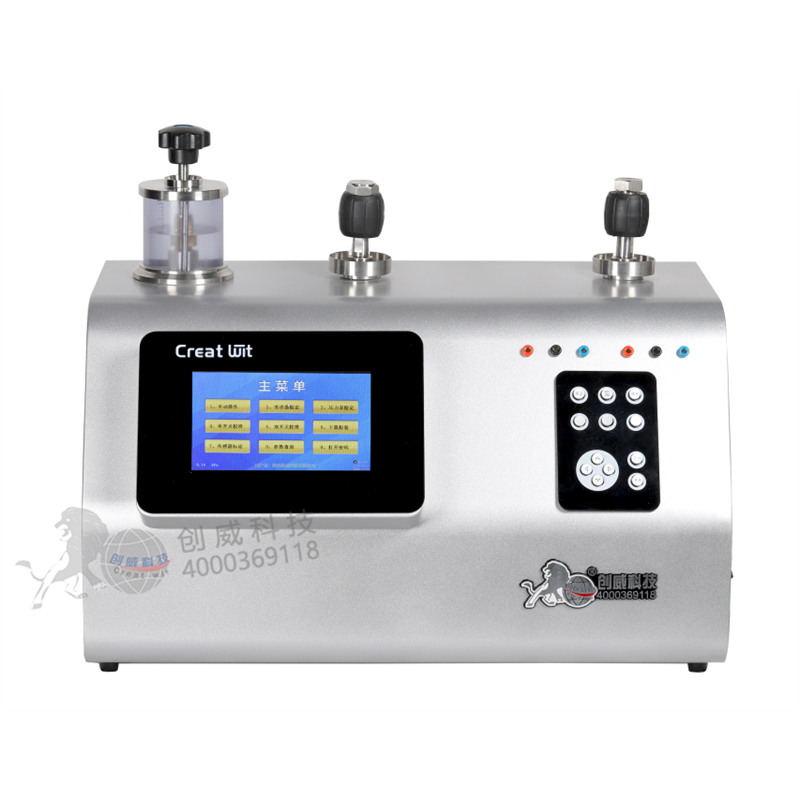

Laboratory Automatic Pressure Calibration Bench

Fully Automatic Pressure Calibration Bench Technical Requirements

The fully automatic pressure calibration system should comply with the following metrological calibration regulations:

Full-Automatic Pressure Calibration Specific Technical Solution

1. Working Conditions

 ◆ Ambient Temperature: (5～45)°C

Relative Humidity: <80%RH

 ◆ Frequency: 50 Hz

 ◆ Power Voltage: AC 220V

2. Technical Specifications

2.1 Fully Automatic Hydraulic Pressure Calibration Bench

 ◆ Working Medium: Transformer Oil or Second Distilled Water.

 ◆ Available pressure module range: (0～60) MPa. Currently, for inspection, it is only necessary to send the measuring standard to the legal metrology inspection institution for calibration, without the need to move the entire platform.

 ◆ Measurement Units: Pa, kPa, MPa.

 ◆ Pressure Display Resolution: Touchscreen 5 digits, Computer Interface 5 digits.

 ◆ Pressure Accuracy Grade: 0.05; 0.02 grade

 ◆ Current Accuracy Class: 0.02

 ◆ Stable Accuracy: Touchscreen display ±5 characters

 ◆ Standard Check Points: At 0%, 25%, 50%, 75%, and 100% of range, automatic return. Can be set via computer connection.

 ◆ Custom Inspection Points: Any.

 ◆ Settling time for automatic voltage regulation: 20 seconds, adjustable between (10-240) seconds.

 ◆ Transmitter automatic calibration full process time (10 points voltage stabilization): approximately 5 minutes.

  ◆ Protection: Overvoltage, overcurrent, sensor failure, etc. protection.

 ◆ Current Input: 2 channels, (0～22) mA.

 ◆ Switch Input: 2-wire dry contacts, capable of detecting contact resistance.

 ◆ Loop power: 24VDC/30mA; if incorrectly connected to a standard meter, the meter under test will not be damaged.

 ◆ Pressure Interface: M20x1.5 internal thread quick connector.

 ◆ Current/voltage interface: Standard banana plug with φ6 size.

 ◆ Outfall: Inner Diameter: φ6mm.

 ◆ Weight: 19kg (pneumatic), 26kg (hydraulic).

  ◆ Dimensions: H 290 x W 574 x D 316 mm

Automatic Calibration Software: Optional.

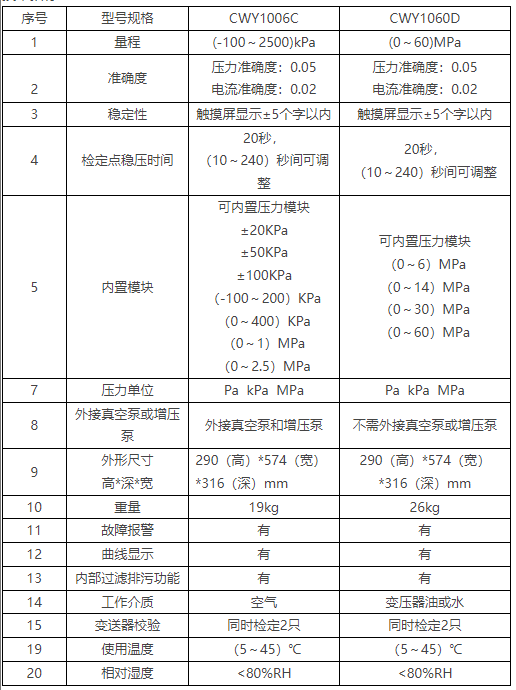

Technical Specifications:

、2.2 Features of Automatic Pressure Calibration Bench

Press the start button, and it will automatically complete tasks such as pressurizing, depressurizing, stabilizing pressure, recording data, analyzing errors, and printing calibration reports and certificates.

Fully conforms to pressure gauge calibration regulations and can be used as a pressure standard.

Ø Provides a stable pressure source without the use of high-pressure cylinders, with rapid and stable pressure changes.

Pressure range: (-0.1 ~ 60) MPa.

Pressure transmitter, pressure switch (pressure controller), pressure gauge available for inspection.

Fully automatic verification with pressure switch function.

Fully protected with over-pressure protection (alarms if over 110% of range), over-current protection (when transmitter current exceeds 20.5mA), leakage, sensor failure, and other alarms. Stops pressurization upon over-pressure, over-current, or sensor failure.

The fully automatic pressure calibration bench can store 20 sets of calibration results, both before and after adjustment, for a total of 56 field instruments.

Connectable with calibration software to form an automatic pressure calibration system, with units freely settable. Just a few clicks and the pressure calibration is done, with automatic generation of calibration reports and certificates.

Equipped with a printer and computer, compatible with the equipment.

3. Product Features and Advantages of Full-Automatic Pressure Calibration Bench

Ø Equipped with an internal pressure module and temperature compensation for pressure sensors, it overcomes temperature drift, ensuring no measurement error in both winter and summer. No additional accessories are needed during calibration verification, making it convenient to use.

The built-in pressure module is convenient to use; no additional accessories are needed. Simply install the gauge, press the "Start" button, and the calibration process is complete.

The pressure transmitter is calibrated using an integrated pressure module, ensuring full coverage without any gaps.

Fully automatic verification; capable of simultaneously calibrating two pressure transmitters of the same range, pressure switches, and pressure gauges, convenient for calibrating dual-point pressure switches.

The system features a filter anti-blocking drain system. The hydraulic stand is equipped with φ6mm stainless steel pipes. Impurities or dirt from on-site instruments can be conveniently drained through the drain port. Even if fine sand is inserted into the calibration port, it will not damage the setup. The pressure stand comes with a standard gas-liquid separator to prevent liquid from the instrument under calibration from entering the calibration stand.

Ø Equipped with an intelligent voltage stabilizer, designed in strict accordance with the pressure calibration procedures. During the upward stroke, it approaches the calibration point from bottom to top, and during the downward stroke, it approaches from top to bottom without adjustment.

Instructions can be displayed on the touch screen, eliminating the need for a manual during operation.

High protection level, preventing the flow of verification medium into the instrument to avoid damage to the instrument.

Hydraulic tables can use water as the working medium, while air tables utilize compressed air.

Data is traceable. As long as the device ID matches the previous inspection, the database can trace back the previous inspection records, and the inspection forms can be automatically completed according to user needs.

All inspection processes comply with the established procedures.

Ø Terminal software features:

Software is designed for use with an automatic pressure calibration station, allowing remote operation and optimizing the calibration process. It features user-friendly access control and automatic, traceable recording of calibration records. The software employs a BS/CS architecture, offering high flexibility and scalability. Compared to similar client-side operation software, this software centralizes the storage management of calibration data, enabling superior management users to access and review subordinate calibration users' data at any time. Calibration records can be shared and synchronized, enhancing the efficiency of the using units.

Product Features

Built-in pressure module

Touchscreen LCD Display

Complete protection features

Equipped with automatic leak detection function

Highlight

Transmitter calibration

Pressure Gauge Calibration

Sensor Calibration

Automatic Calibration Management System

Design Concept

Equipped with a filtration and effluent system

Supports water medium

Transformer Oil Support

Intelligent and paperless verification
