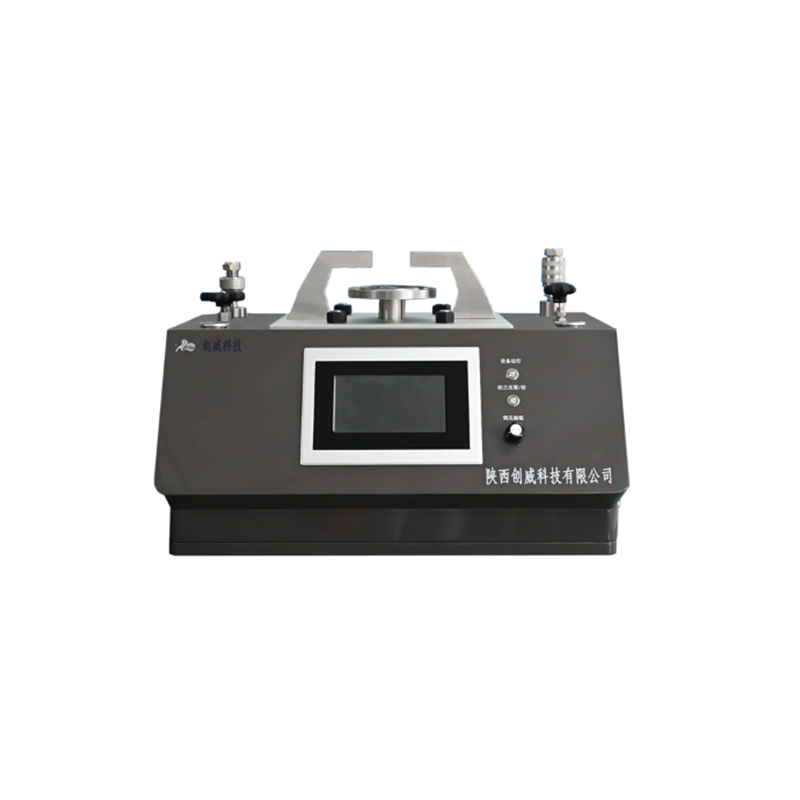

The flange pressure gauge calibration device allows for quick mounting, combining manual and electric pressure increase, enabling rapid calibration of flange and standard interface pressure gauges, enhancing calibration efficiency. It is an ideal choice for calibrating flange pressure gauges and standard interface pressure gauges in laboratories and industrial sites, in compliance with the JB/T599-2005 "Pressure Gauge Calibrator" industry standard.
Technical Specifications:
Flanged interface specifications: DN25 - DN50
2. Pressure Range: DN20～DN40 (0～3) MPa, DN50 (0～2) MPa
3. Standard Interface: M20x1.5
4. The flange pressure gauge calibration device can be quickly mounted and rapidly inspected, enhancing calibration work efficiency.
5. Control response time ≤ 30s
6. Pressure Control Methods: Switchable between automatic and manual control modes, with adjustable pressure.
7. Medium: Pure air, with an internal G4-grade filter unit, an internal gas-liquid separator, featuring a filtering and waste disposal system, as well as an oil-gas isolation system.
8. Minimum Adjustment Range: ≤1 kPa
Technical Advantages:
Technical Advantages
- Overvoltage Protection: Equipped with multiple overvoltage protection devices internally, enhancing the safety of the equipment.
- Efficient clamping, quick assembly and disassembly design, time and labor-saving, significant efficiency enhancement
- Dual Mode Pressure Boost: Manual and electric control combined, fast pressure increase, accurate pressure adjustment, and easier operation.
- Superior Compatibility: Multi-functional, supports flange and conventional connection pressure gauge calibration
- Highly resistant to stains, featuring filtration and waste discharge, as well as oil and gas isolation, ensuring stable equipment performance.
- Low operating noise. Equipped with a sound-absorbing device, it significantly reduces the noise generated by the operation of airway components, meeting the laboratory testing requirements.
