Product Introduction

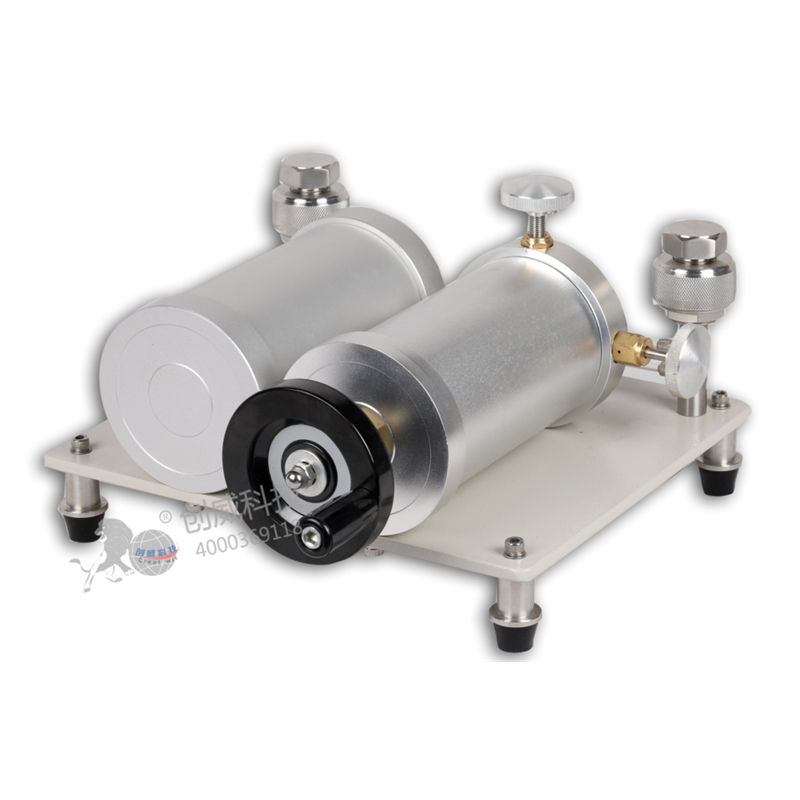

The CW8530 pressure pump achieves fine adjustment, pull-push pressure increase, and has a high controllable adjustment resolution. It can transmit measurements remotely and serves as a stable micro-pressure pressure source with sufficient resolution for pressure transmitters, sensors, and micro-pressure diaphragm pressure gauges.

Product Features

◆ Compact and lightweight, easy to operate and maintain

◆ Good sealing, not prone to leakage

◆ Overall open structure, stable pressure build-up, smooth pressure rise and fall

◆ Integrated with both positive and negative pressure, easy to switch between positive and negative pressure; multiple ranges available with fine-tuning capability.

Technical Specifications

◆ Pressure Range:（-1~1）kPa, （-5~5）kPa, （-15~15）kPa, （-20~20）kPa, （-30~30）kPa,（-60～0～60）kPa

◆ Controllable adjustment range:0.1Pa

Output Interface:M20x1.5 internal

◆ Working Medium:Air

Volume:245mm×165mm× 190mm

Quality:2.5kg
