Product Description

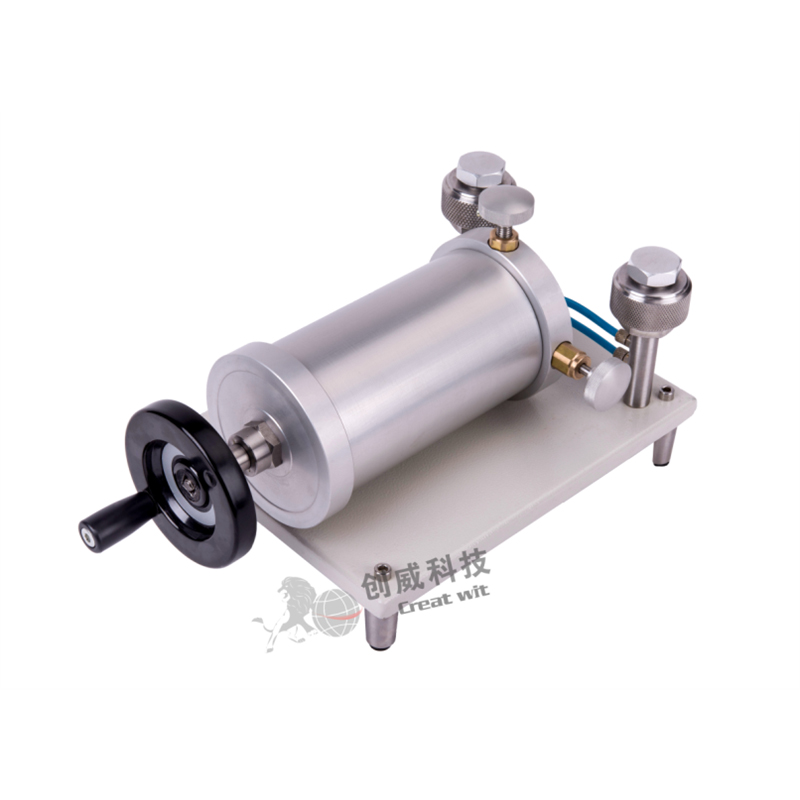

The CW8530 pressure pump features fine adjustment, push-pull pressure application, and high controllable adjustment precision. It can remotely transmit calibration instruments and provides a stable and sufficiently low-resolution pressure source for pressure transmitters, sensors, and micropressure diaphragm pressure gauges.

Product Features

△ Compact and lightweight, easy to operate, and convenient to maintain

△ Sealed well, leakage-resistant

△ Overall open structure, stable pressure building, smooth voltage rise and fall

△ Integrated positive and negative pressure; easy switching between positive and negative pressure; multiple ranges available with fine-tuning feature.

Technical Specifications

△ Pressure Range:（-1~1）kPa, （-5~5）kPa, （-15~15）kPa, （-20~20）kPa, （-30~30）kPa,（-60～0～60）kPa

△ Adjustable Range:0.1Pa

△ Output Interface:M20x1.5 inner

△ Working Medium:Air

△ Volume:245mm×165mm× 190mm

△ Quality:2.5kg
