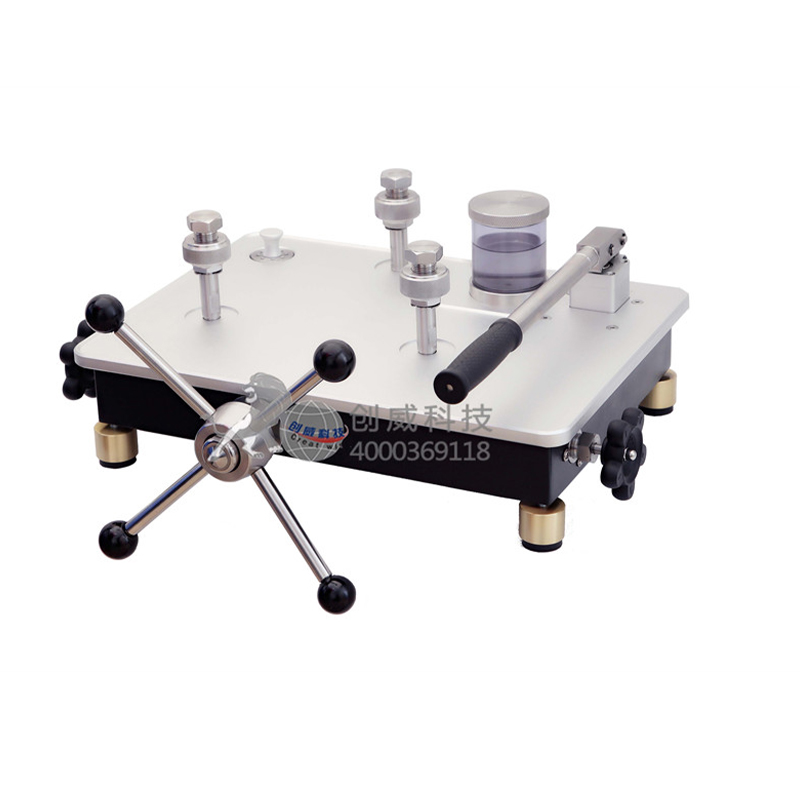

外形设计

1. Pre-charging pump

2. Oil cup

3. Shut-off valve

4. Pressure Regulator

5. Pressure Relief Valve

6. Countertop Grease Trap Box

7. Accept table stand

8. Waste Discharge Filter Valve

Overview

This tester features a simple structure, easy operation and maintenance, resistance to leakage, and smooth voltage regulation. It employs a rod-type pre-compression structure, allowing for quick generation of the required pressure values, and reduces pipeline blockages caused by contamination of the transmission medium.

Technical Specifications

Model: CW8610T

△Pressure Range: (0-60) MPa, (0-100) MPa, (0-160) MPa, (0-250) MPa

△ Medium: Oil compatible with copper, aluminum alloys, stainless steel (304), and nitrile rubber (contains azelaic acid); Pure water

△ Adjustment Range: 10 kPa

△Nominal Dimensions: 500mm x 400mm x 175mm

△Weight: 15kg (without medium)

△Pressure Connection: M20*1.5

Technical Advantages

High efficiency in work

It can boost the pressure to over 50MPa in approximately 7-8 seconds, reducing the pressure-up time and enhancing work efficiency.

2. Strong stain resistance

To address the issue of on-site instruments often bringing in mud and sand, etc., the table mount system has been equipped with a filtering and drainage function. Pollutants are not allowed to enter the system, preventing the failure of critical components such as the pre-pressure pump and pressure regulator, thereby ensuring the stability of the equipment.

3. Easy Pressure Application

The pre-pressure pump utilizes a two-stage pressurization principle, making pressure increase easier and reducing the workload for the operator.

4. Sealing Performance

Utilizes a combination seal design, blending soft and hard materials, with sealing performance and strength meeting industry standards.
