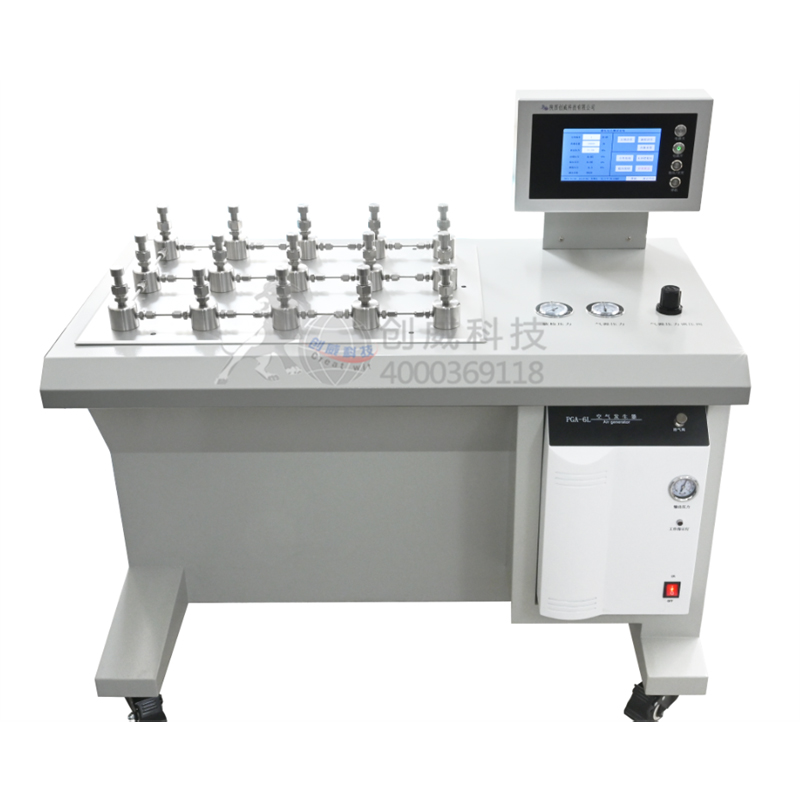

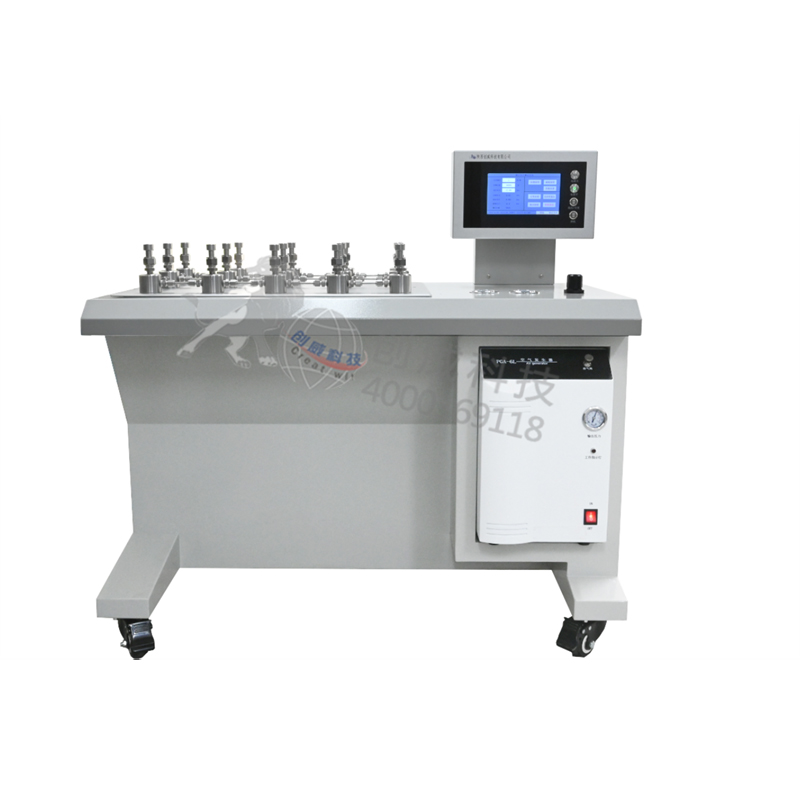

I. Introduction to CWYQL Gas Pressure Stabilization Fatigue Test Bench
The Gas Pressure Stabilization Fatigue Test Bench is specifically designed for fatigue and stabilization tests of pressure sensors, pointer-type pressure gauges, and similar devices. It offers a pressure generation range of 0kPa to 1000kPa, featuring both stabilization and alternating operation modes. The product is equipped with automatic pressure adjustment and the ability to shut down automatically after counting ends. The device uses imported proportional valves with corresponding hardware stabilization processing to provide a more stable pressure, along with a high-performance electromagnetic control valve for rapid alternating frequencies. It is easy to operate and highly reliable. Custom pressure interfaces can be made according to customer requirements.
Section 2: Technical Solution for CWYQL Gas Pressure Stabilization Fatigue Test Bench
1. Technical Specifications
◆ Model:CWYQL Type Gas Pressure Stabilization Fatigue Test Bench
u Range:0 to 1000 kPa (adjustable at any point)
◆ Unit of Pressure:kPa、MPa、psi、bar、mbar、inHg、mmHg、inH2O、mmH2O、kgf/cm2ATM, Torr (adjustable to any unit)
◆ Alternating Frequency:1-60 (cycles/second)
◆Pressure Detection Accuracy:Feedback Pressure (0.2% FS), Test Pressure (0.2% FS) available for customization as per customer requirements.
◆ Pressure Control Stability:0.02%FS
◆ Working Medium:Compressed Air
◆ Display Digits:5 pieces
◆ Pressure Interface:Customer Customization
◆ Power Voltage:AC220V
◆ Operation Mode:Offer stable voltage or alternating current operation modes
2. Features
Wide pressure range occurrence: The gas pressure stabilization fatigue test bench can achieve a pressure range of 0kPa-1000kPa, meeting the testing requirements of various pressure sensors.
2. Multi-unit Display: The equipment supports various pressure units such as kPa, MPa, psi, bar, mbar, inHg, mmHg, inH2O, mmH2O, kgf/cm2, atm, and Torr, allowing users to select according to their needs.
3. High-Precision Pressure Detection: Both feedback and measured pressure detection accuracy reach 0.2%FS, ensuring test accuracy.
4. High-efficiency Voltage Regulation: Both pressure stability and overall regulation accuracy are at a high level, ensuring the system can provide stable and precise pressure values.
5. Long lifespan: Imported proportional control valves and solenoid control valves, with over 1 billion switching cycles, ensure a long-lasting lifespan for the equipment.
6. Operational Reliability: Equipped with two independent pressure collection modules for device pressure detection, the system software features redundant design, enhancing the reliability of equipment operation.
7. Operational Flexibility: The system is specifically designed with both soft switch and hardware mechanical switch operation modes, providing users with enhanced flexibility. In case the soft switch becomes less responsive due to oil, users can switch to the mechanical switch to operate the equipment.
8. Clean Gas: High-performance external gas source, delivering clean and stable compressed air through an oil-water separator in the gas line, pressure reducing valve, and gauge pressure indicator.
9. Security Protection: Equipped with a password protection system to prevent unauthorized users from making mistakes, ensuring the safety of the equipment.
10. Reliable Power Supply: The power voltage is AC220V, ensuring stable operation of the equipment under various environmental conditions.
11. Quick Mobility: Equipped with swivel casters at the bottom, the equipment can move freely within the required space, achieving more efficient operations and reducing manual labor burden.
12. Customized Interface: Tailor-made pressure interfaces according to customer requirements, offering more considerate service.
13. Large Display: A 10-inch capacitive touch screen for display.
Technical Specifications
◆ Model:CWYQL Type Gas Pressure Stabilization Fatigue Test Bench
u Range:0~1000 kPa (adjustable at any point)
◆ Unit of Pressure:kPa、MPa、psi、bar、mbar、inHg、mmHg、inH2O、mmH2O、kgf/cm2ATM, Torr (adjustable to any unit)
◆ Variable Frequency:1-60 (times/second)
◆Pressure Detection Accuracy:Feedback pressure (0.2% FS), test pressure (0.2% FS) available for customization as per customer requirements.
◆ Pressure Control Stability:0.02%FS
◆ Working Medium:Compressed air
◆ Display Digits:5 pieces
◆ Pressure Interface:Customer Customization
◆ Power Voltage:AC220V
◆ Operation Mode:Offer stable voltage or AC operation modes
