UtilizeFully Automatic Pipetting Workstation CNFY-96R Continuous Liquid Transfer, Blowing, and MixingThe operation steps are as follows:
Preparation: Place the pipetting workstation on a flat surface and connect the power cord. Ensure the workstation is clean and tidy, with no other items on the desk to interfere.
2. Power on the pipetting workstation: Press the power button and wait for the workstation to boot up. Typically, a startup page or main interface will appear.
3. Prepare pipettes: Remove the required pipettes and ensure they are clean. Select the appropriate pipette volume for the experiment and set the desired volume on the pipette.
4. Prepare liquid samples: Place the liquid sample to be transferred on the work station, ensuring the container lid is open or removed for easy transfer.
5. Set Pipetting Parameters: According to experimental requirements, set the required pipetting parameters on the pipetting workstation, such as pipetting volume, aspiration speed, and dispensing speed.
6. Suction Operation: Insert the pipette into the liquid sample, press the suction button, and wait for the pipette to吸取a predetermined volume of the liquid sample. Ensure that the bottom of the pipette is fully submerged in the sample to avoid air bubbles.
7. Pipetting Operation: Position the pipette over the target container, press the dispensing button, and slowly release the liquid sample. Ensure the bottom of the pipette is above the liquid surface of the target container to prevent air bubbles or contamination.
8. Clean Pipettes: During pipetting, use cleaning solution or deionized water to clean the bottom of the pipette to prevent cross-contamination between samples.
9. Completion of Operation: After completing the pipetting operation, shut down the pipetting work station, return the pipette to its designated location, and clean up the liquid samples and related items on the work station.
Here are the basic operation steps for using a pipetting workstation. Specific steps may vary depending on the brand and model of the workstation. It is recommended to carefully read the user manual of the workstation or follow relevant training before use.

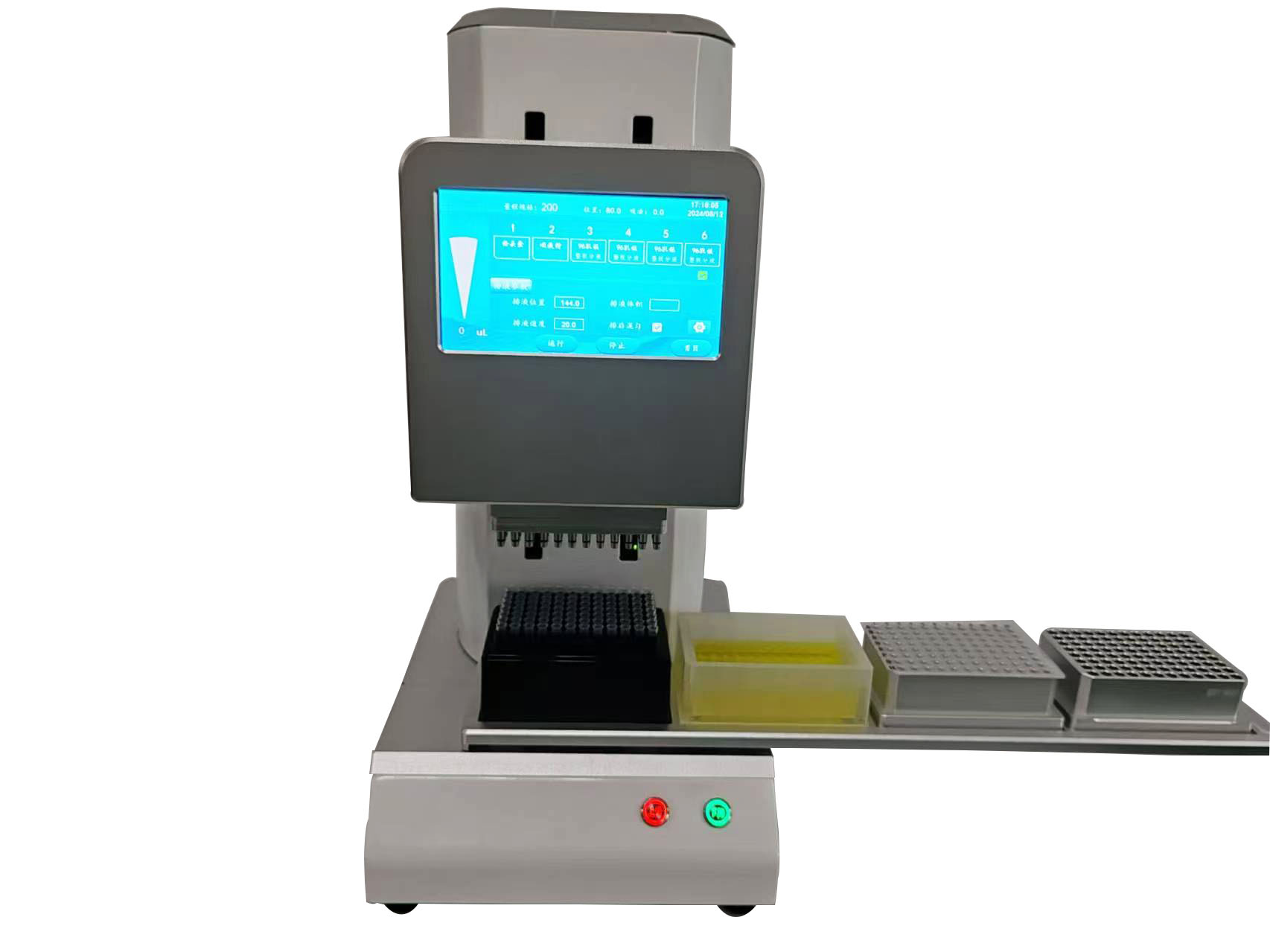

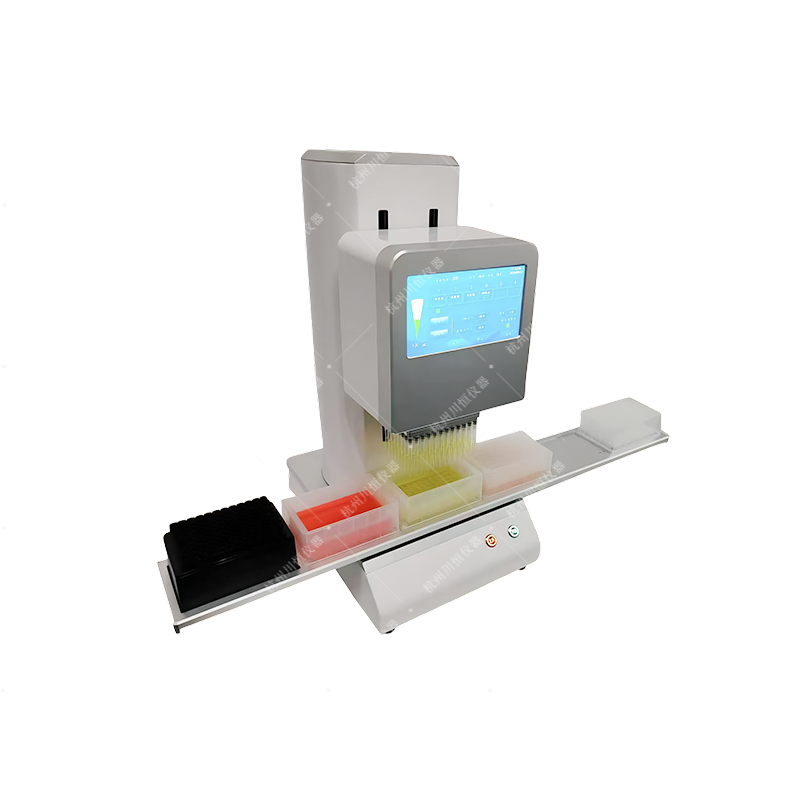

All-in-One Pipetting Workstation CNFY-96R with Continuous Liquid Transfer, Dispensing, and MixingKey Features:

1. Equipped with a 7-inch LCD touch screen, the interface is simple and clear, with single-machine control and easy operation.

2. Features ultra-compact and lightweight design for easy mobility in labs and installation in clean benches, fume hoods, safety cabinets, etc., allowing work in confined spaces.

3. One-touch pipetting, continuous liquid separation, gradient dilution, and uniform mixing, all without manual operation.

4. Prevents sample addition reaction time differences during simultaneous 96-channel pipetting, perfectly matching your various needs.

5. Compatible with most laboratory consumables, sample tubes, pipette tips boxes, microplates, liquid aspiration grooves, and liquid injection grooves that meet the SBS standard.

Fully Automatic Pipetting Workstation CNFY-96R Continuous Liquid Transfer, Blowing, and MixingTechnical Specifications:

1. Model: CNFY-96R

2. Sample Channel: 96 Channels

3. Range: 20ul, 200ul, 1000ul (3 options available)

4. Number of Workstations: 2-6 workstations available for selection

5. Applicable Board Types: 96/384 hole boards and various general-purpose board types

6. Dispensing Range: 0.5-1000ul

7. Dispensing Increment: 0.1ul

8. Display: 7-inch High-definition Touchscreen

9. Suction Principle: Air displacement

10. Nozzle Installation: Automatic Nozzle Mounting and Dismounting

11. Product Features: Gradient Dilution, Continuous Liquid Separation, Blowing and Mixing Uniformly

12. Sample Addition Precision: 10ul CV≤2.0%, Accuracy≤1.0%; 200ul CV≤2.0%, Accuracy≤1.0%; 1000ul CV≤1%, Accuracy≤1%

13. Functional Connections: Foot pedal switch and other automated equipment connections available.

14. USE Connection: Remote Software Upgrade Available

15. Dimensions: 410*340*555mm (3 stations) / 810*340*555mm (6 stations)

16. Power Voltage: AC 220V 50Hz

17. Power: 100W

Weight: 25 kg
